9-6 Published 08/16/19 Control # 112-05
CRANE INSTALLATION 500E2 SERVICE MANUAL

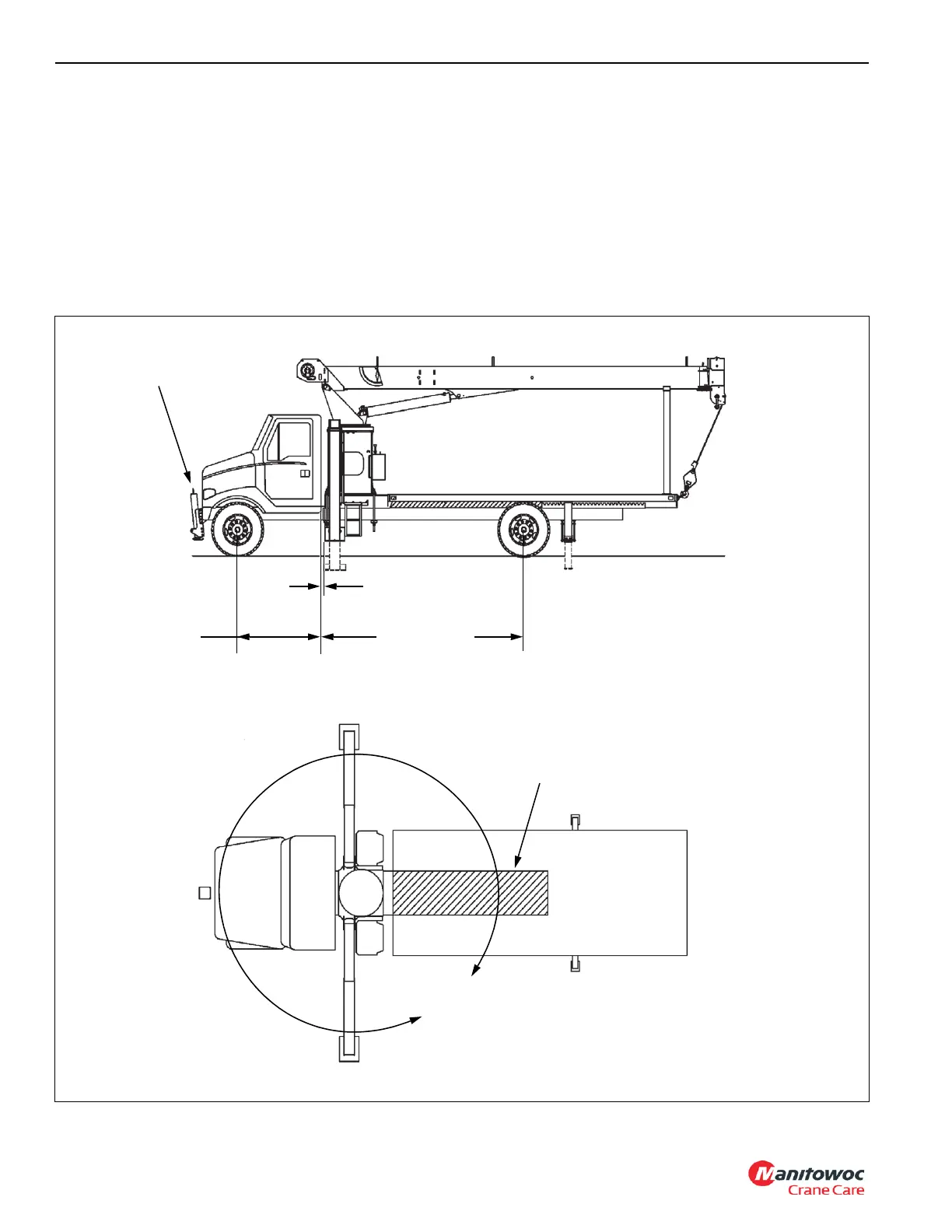

Configuration 4 - 560E2 And Shorter Booms
This mount requires single front outrigger (SFO) and
additional counterweight in the underside of the bed for full
capacity 360° around the truck. The SFO gives the machine
a solid base helping the operator control loads.
Requires 12,000 pound (5443 kg) GAWRF, 21,000 (9,525
kg) GAWRR, 33,000 (14,968 kg) GVWR, standard sub-base
for 18' bed, Single Front Outrigger (SFO) and Angle
Stabilizer Hydraulic (ASH) rear stabilizers and usually
requires concrete counterweight in the torsion box between
the crane and the ASH. Counterweighting in this manner
reduces the loading induced on the SFO when lifting over the
front. Truck must have 15.9 in.3 (261 cm3) section modulus
and 1,749,000 in-lb (197,610 N-m) RBM or be capable of
being reinforced to this strength under the crane frame
through to the front suspension. Normally a tapered frame
cannot be reinforced to this requirement. The frame strength
requirements for the remainder of the truck frame are the
same as in Configuration 3. Tandem axle trucks may be used
for hauling larger payloads.
360° Full Capacity
Work Area
69 (175.2) Min
SFO
3 (7.6) Min
154 (391.1) Min
Counterweight
*6800 lb
(3084 kg)
Min
*7000 lb
(3175) kg
Min
* Actual scale weights
prior to installation of
crane, sub-base, and
stabilizers
Note: All dimensions inch (cm)
