9-24 Published 08/16/19 Control # 112-05
CRANE INSTALLATION 500E2 SERVICE MANUAL
Table 9-1
Mount the Outrigger Box
Position the front outriggers on the T-Box and bolt to the
truck frame with the anchor bolts and brackets, Reference
(Figure 9-2).
Position the rear outriggers on the T-Box and bolt to the truck
frame with the anchor bolts brackets.
NOTE: The front outrigger boxes are integral to the T-box
on cranes where the operators station is mounted
behind the truck cab.

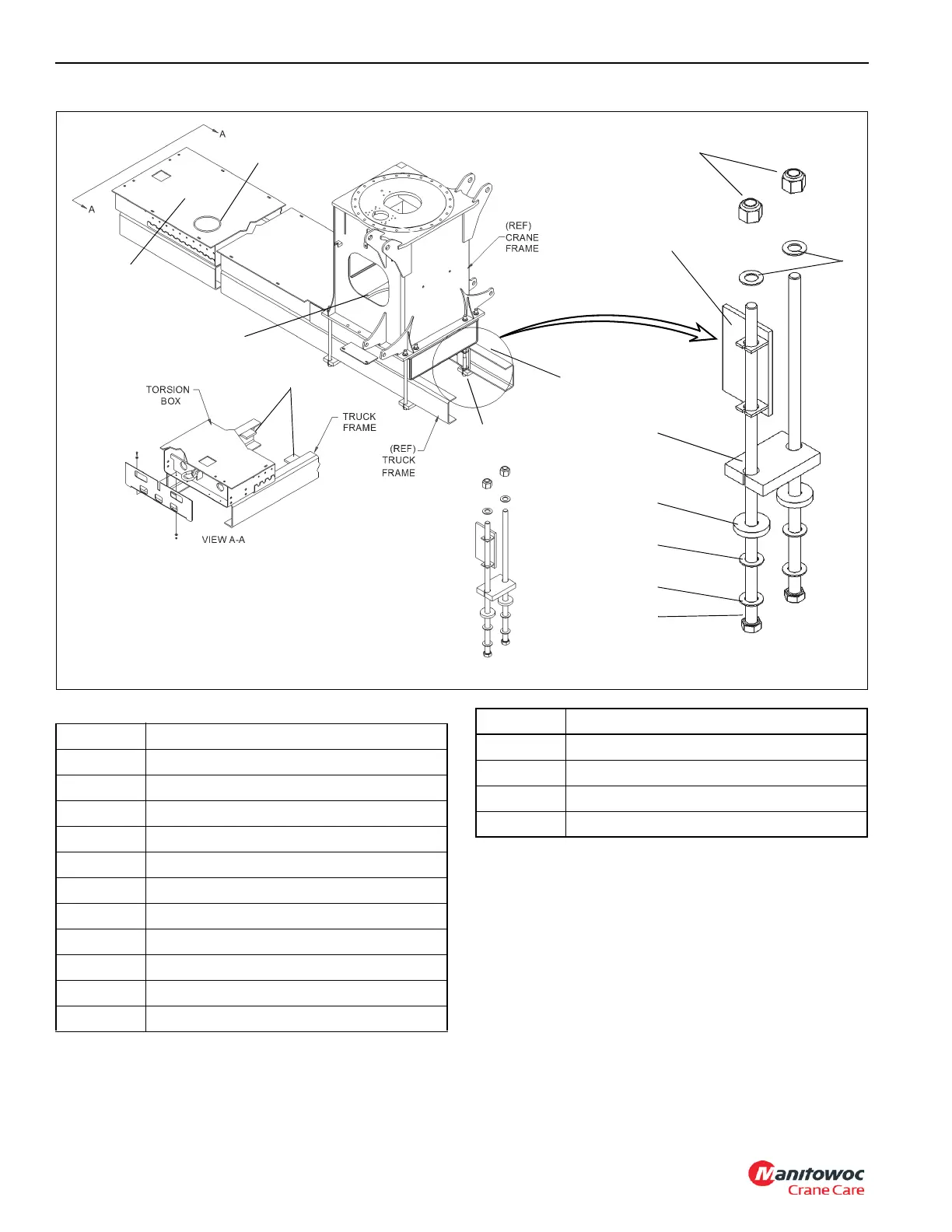

Truck Frame
Machine plate as
necessary to anchor and
fit inside the truck frame
FIGURE 9-1
9136
8552-3
7
6
5
4
8
14
3
4
5
1
Plate must be parallel to truck
frame or bolt failure will result
9
2
15
Apply molding to both
holes. Cut to proper length.
Item Description
1 Torsion Box
2Protector
3 Bolt - 1 1/4 X 30
4 1-1/4 Washer, Hardened
5 Clamp Plate
6Crush Plate
7 1-1/4 DTI Crush Washer
8 Locknut - 1 1/4
9Bar
10 Plate - Rear Light
11 Bolt - 3/8
12 Washer - 3/8
13 Locknut - 3/8
14 Washer - 1 1/4
15 Channel Molding
Item Description
