National Crane Published 08/16/19 Control # 112-05 9-25
500E2 SERVICE MANUAL CRANE INSTALLATION
9

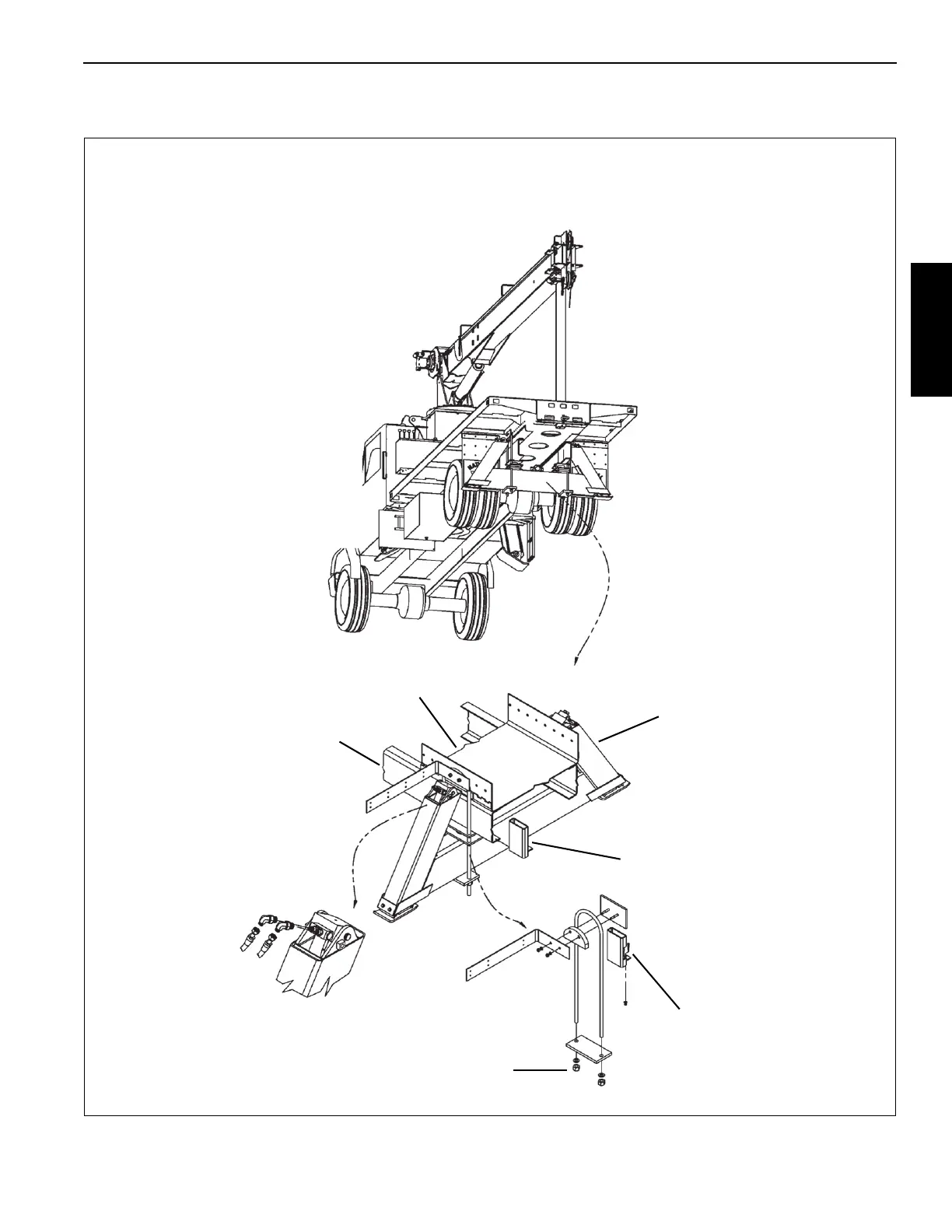

ASH TO TORSION BOX MOUNTING
Reference Custom
BOM for Appropriate
ASH Spacer Kit
Typical Both Sides
Typical Both Sides
Tube Assy
(Ref)
Stabilizer Assy
(Ref)
Torsion Box
(Ref)
Truck Frame
(Ref)
FIGURE 9-2
Torque mounting studs to
540 ± 54 N-m (400 ± 40 ft-lb)
