9-26 Published 08/16/19 Control # 112-05
CRANE INSTALLATION 500E2 SERVICE MANUAL
Assemble the Outriggers
1. Assemble the outriggers as shown in the parts manual
and connect the hydraulics as per hydraulic schematics.
Connect the solenoids to the outrigger selector switch
on the control panel.
Alternate between studs at each corner during the
tightening process to insure studs are straight and
bottom clamp plate is kept parallel with truck frame.
Failure to keep clamp plate parallel with truck frame will
cause uneven edge loading and cause premature stud
failure.

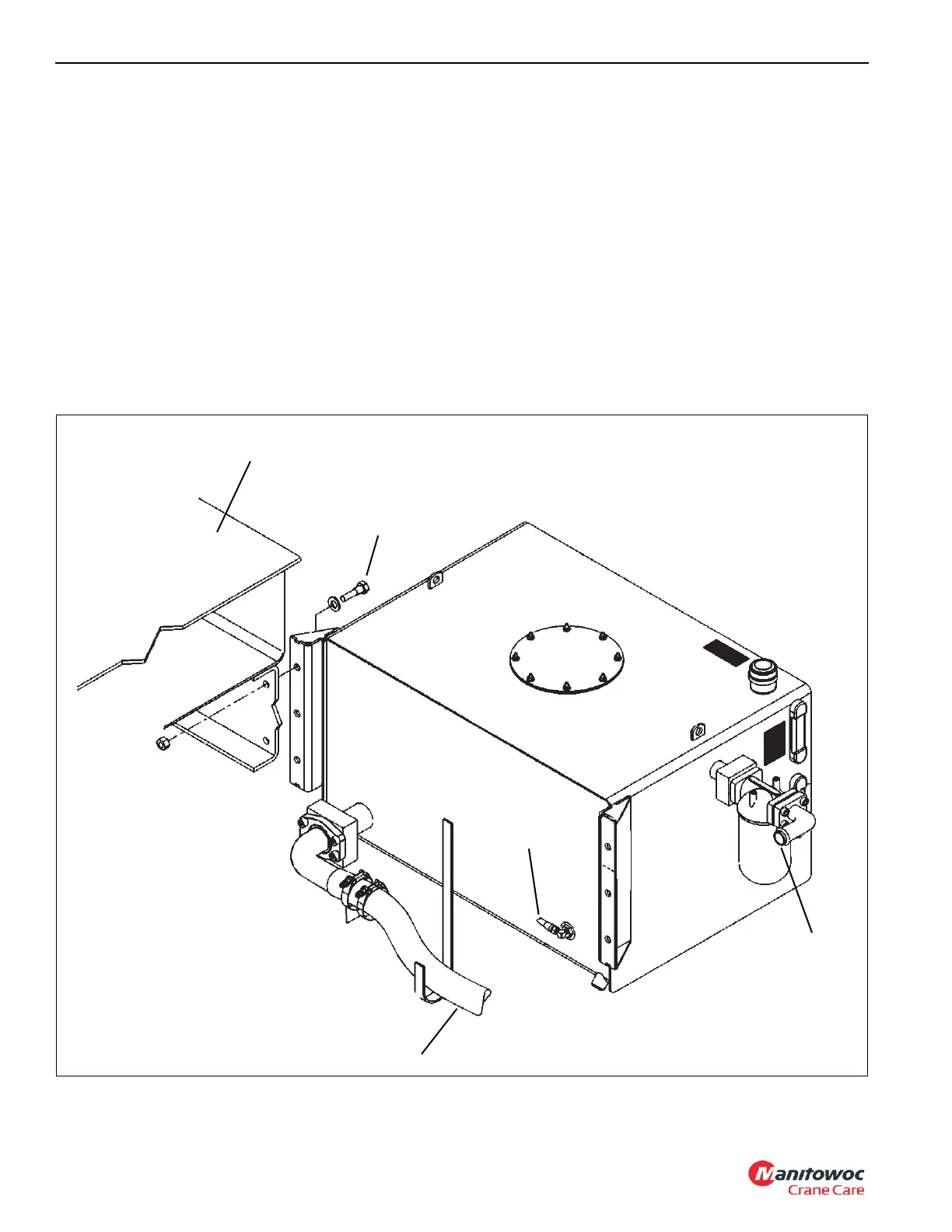

Hydraulic Reservoir Installation
1. Find a location for and install hydraulic oil reservoir.
Mounting brackets may be bolted to the truck frame.
Before placing reservoir in service, remove cleanout
cover and inspect to ensure proper installation of
diffuser.
2. Connect manifold return, hoist drain, and pump suction
to couplings on reservoir before filling with oil.
3. Install the return line from the crane frame to the filter on
the side of the reservoir.
NOTE: The weight of suction and return hose and
plumbing must be supported to prevent damage to
the reservoir. Install support brackets and clamp or
tie hoses up to eliminate strain on reservoir
connections.
To P ump
To W inch
Drain
To Return
Manifold
(6 Plcs)
Torsion Box (Ref)
To Next Page
