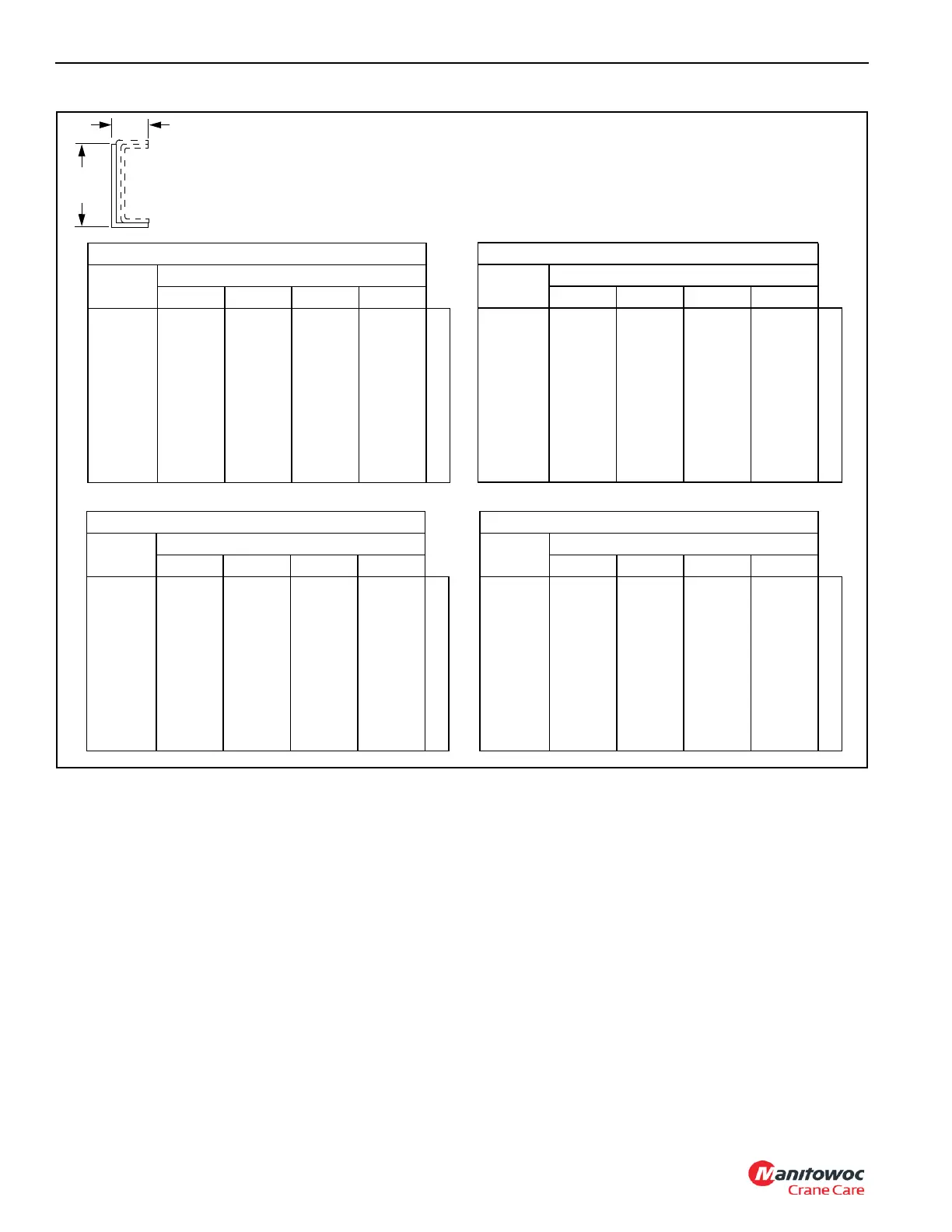

Manitowoc National Crane 500E2 Service Manual

9-12 Published 08/16/19 Control # 112-05
CRANE INSTALLATION 500E2 SERVICE MANUAL
TABLE D
Section Modulus in
3
(cm
3
)
Thickness 3/16 in. (4.76 mm)
D in. (mm)
W in. (mm)
3 (76) 3.5 (89) 4 (102) 4.5 (114)
8.5 (216) 5.7 (93) 6.4 (105) 7.0 (115) 7.7 (126)
in
3
(cm
3
)
9.5 (241) 6.7 (110) 7.4 (121) 8.1 (133) 8.9 (146)
10.5 (267) 7.7 (126) 8.5 (139) 9.3 (152) 10.1 (166)
11.5 (292) 8.8 (144) 9.7 (159) 10.6 (174) 11.4 (187)
12.5 (318) 10.0 (164) 10.9 (179) 11.9 (195) 12.8 (210)
13.5 (343) 11.2 (184) 12.2 (200) 13.2 (216) 14.3 (234)
14.5 (368) 12.5 (205) 13.6 (223) 14.6 (239) 15.7 (257)
15.5 (394) 13.8 (226) 15.0 (246) 16.1 (264) 17.3 (284)
Thickness 1/4 in. (6.35 mm)
D in. (mm)
W in. (mm)
3 (76) 3.5 (89) 4 (102) 4.5 (114)
8.5 (216) 7.7 (126) 8.6 (141) 9.4 (154) 10.3 (169)
in
3
(cm
3
)
9.5 (241) 9.1 (149) 10.0 (164) 10.9 (179) 11.9 (195)
10.5 (267) 10.5 (172) 11.5 (188) 12.5 (205) 13.6 (223)
11.5 (292) 11.9 (195) 13.1 (215) 14.2 (233) 15.4 (252)
12.5 (318) 13.5 (221) 14.7 (241) 16.0 (262) 17.2 (282)
13.5 (343) 15.2 (249) 16.5 (270) 17.8 (292) 19.2 (315)
14.5 (368) 16.9 (277) 18.3 (300) 19.7 (323) 21.2 (347)
15.5 (394) 18.7 (306) 20.2 (331) 21.7 (356) 23.3 (382)
Thickness 5/16 in. (7.94 mm)
D in. (mm)
W in. (mm)
3 (76) 3.5 (89) 4 (102) 4.5 (114)
8.5 (216) 9.8 (161) 10.8 (177) 11.9 (195) 12.9 (211)
in
3
(cm
3
)
9.5 (241) 11.5 (188) 12.6 (206) 13.8 (226) 15.0 (246)
10.5 (267) 13.3 (218) 14.5 (238) 15.8 (259) 17.1 (280)
11.5 (292) 15.1 (247) 16.5 (271) 18.0 (295) 19.4 (318)
12.5 (318) 17.1 (280) 18.6 (305) 20.2 (331) 21.7 (356)
13.5 (343) 19.2 (315) 20.8 (341) 22.5 (369) 24.2 (397)
14.5 (368) 21.4 (351) 23.1 (379) 24.9 (408) 26.7 (438)
15.5 (394) 23.7 (388) 25.5 (418) 27.4 (449) 29.4 (482)
Thickness 3/8 in. (9.52 mm)
D in. (mm)
W in. (mm)
3 (76) 3.5 (89) 4 (102) 4.5 (114)
8.5 (216) 11.9 (195) 13.2 (216) 14.4 (236) 15.6 (256)
in
3
(cm
3
)
9.5 (241) 14.0 (229) 15.3 (251) 16.7 (274) 18.1 (297)
10.5 (267) 16.2 (266) 17.7 (290) 19.2 (315) 20.7 (339)
11.5 (292) 18.4 (302) 20.1 (329) 21.8 (357) 23.5 (385)
12.5 (318) 20.9 (342) 22.6 (370) 24.5 (402) 26.3 (431)
13.5 (343) 23.4 (384) 25.3 (415) 27.3 (447) 29.3 (480)
14.5 (368) 26.0 (426) 28.1 (461) 30.2 (495) 32.4 (531)
15.5 (394) 28.8 (472) 31.0 (508) 33.3 (546) 35.6 (583)
