6-2 Published 08/16/19 Control # 112-05
SWING 500E2 SERVICE MANUAL
10. Inspect the piston 0-rings (20 &21)and the back up rings
(19 & 22) for damage, replace if necessary.
11. Inspect the thrust plate (9) for excessive grooving and
replace if necessary by removing snap ring (36).
12. Remove the brass thrust washer (34) and sun gear (41).
13. Remove input planet set (3, part of gear set 4) from gear
housing (1) by pulling straight up and out of the housing.

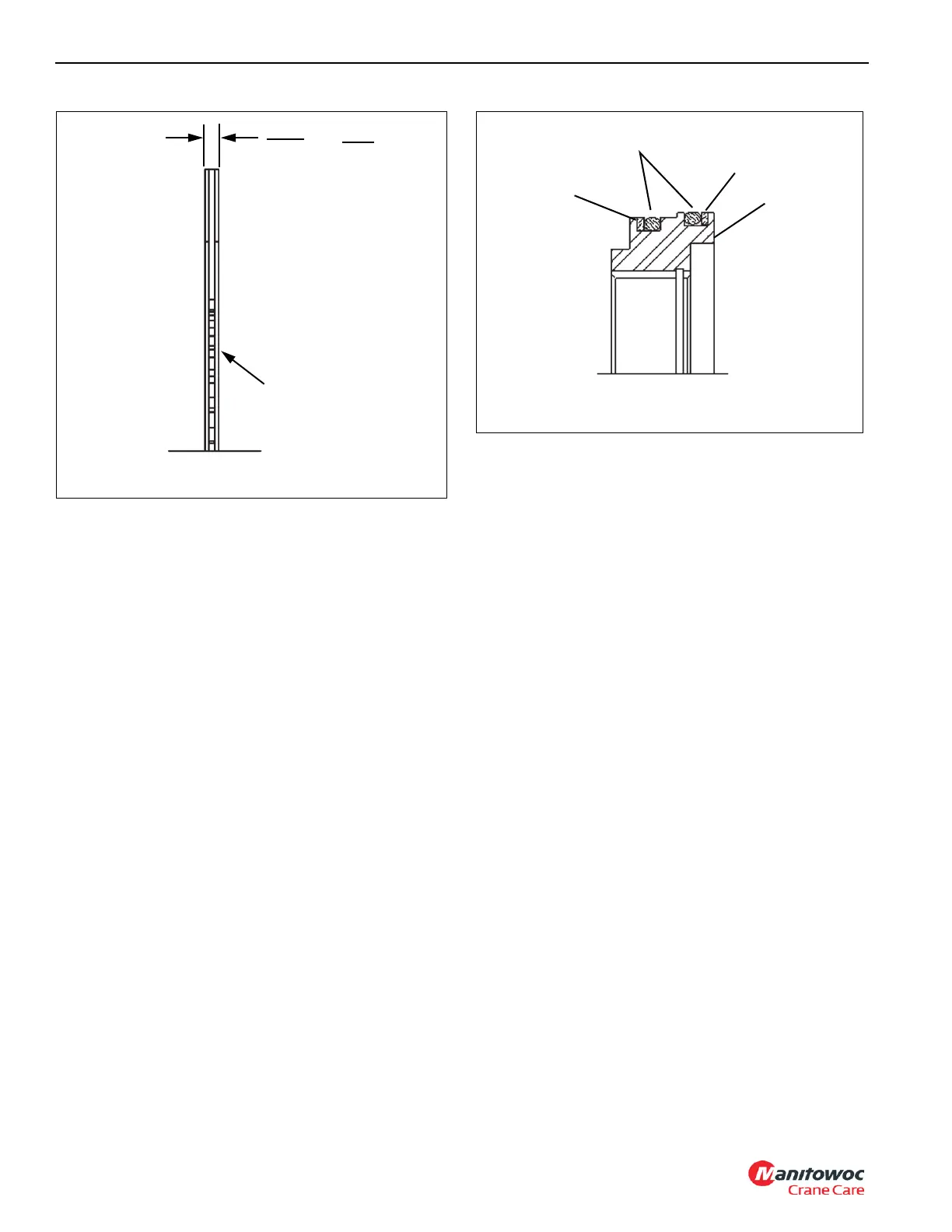

Replace if the
thickness is below
0.070 in (1.78 mm)
0.080
0.085
2.03
2.16
in
mm
(
(
Friction Disc
No Wear
Back-up Ring
O-Rings
Back-up Ring
Piston
To Next Page
