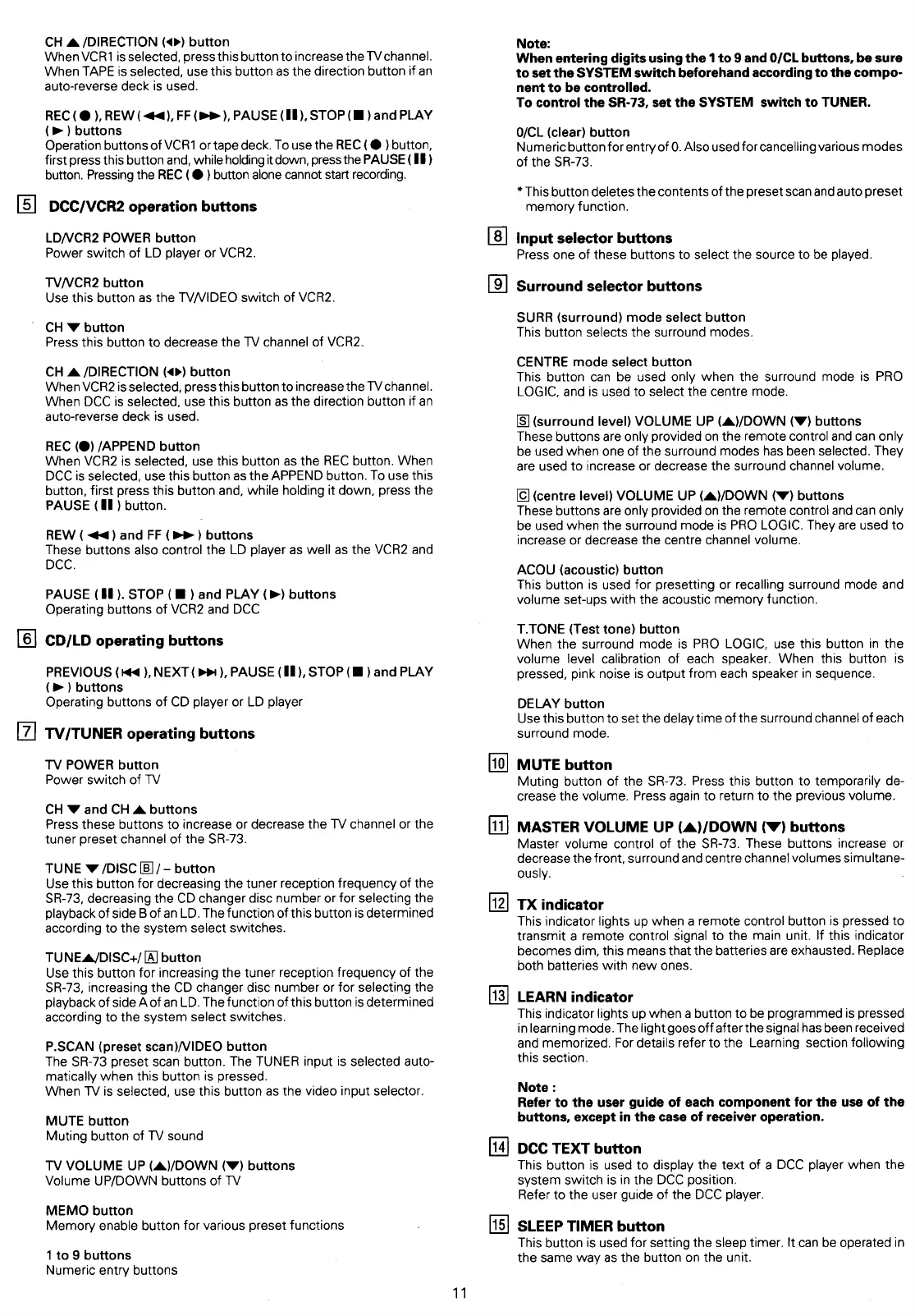

CH
&/DIRECTION
(<>)
button
When
VCR1
is
selected,
press
this
button
to
increase
the
TV
channel.
When
TAPE
is
selected,
use
this
button
as
the
direction
button
if
an
auto-reverse
deck
is
used.
REC
(
@
),
REW
(<#44),
FF
(>),
PAUSE
(I),
STOP
(I)
and
PLAY
(>)
buttons
Operation
buttons
of
VCR1
or
tape
deck.
To
use
the
REC
(
@
)
button,
first
press
this
button
and,
while
holding
it
down,
press
the
PAUSE
(1B)
button.
Pressing
the
REC
(
@
}
button
alone
cannot
start
recording.
DCC/VCR2
operation
buttons
LD/VCR2
POWER
button
Power
switch
of
LD
player
or
VCR2.
TVNVCR2
button
Use
this
button
as
the
TV/VIDEO
switch
of
VCR2.
CH
¥
button
Press
this
button
to
decrease
the
TV
channel
of
VCR2.
CH
&£/DIRECTION
(<>)
button
When
VCR2
is
selected,
press
this
button
to
increase
the
TV
channel.
When
DCC
is
selected,
use
this
button
as
the
direction
button
if
an
auto-reverse
deck
is
used.
REC
(@)
/APPEND
button
When
VCR2
is
selected,
use
this
button as
the
REC
button.
When
DCC
is
selected,
use
this
button as
the
APPEND
button.
To
use
this
button,
first
press
this
button
and,
while
holding
it
down,
press
the
PAUSE
(fll)
button.
REW
(
<#4)
and
FF
(>
)
buttons
These
buttons
also
control
the
LD
player
as
well
as
the
VCR2
and
DCC.
PAUSE
(88).
STOP
(Mf)
and
PLAY
()
buttons
Operating
buttons
of
VCR2
and
DCC
CD/LD
operating
buttons
PREVIOUS
(4),
NEXT
(
bb),
PAUSE
(I),
STOP
(I)
and
PLAY
(>
)
buttons
Operating
buttons
of
CD
player
or
LD
player
TV/TUNER
operating
buttons
TV
POWER
button
Power
switch
of
TV
CH
VY
and
CH
&
buttons
Press
these
buttons
to
increase
or
decrease
the
TV
channel
or
the
tuner
preset
channel
of
the
SR-73.
TUNE
/DISC
[B]/-
button
Use
this
button
for
decreasing
the
tuner
reception
frequency
of
the
SR-73,
decreasing
the
CD
changer
disc
number
or
for
selecting
the
playback
of
side
B
of
an
LD.
The
function
of
this
button
is
determined
according
to
the
system
select
switches.
TUNE.«#/DISC+/
[A]
button
Use
this
button
for
increasing
the
tuner
reception
frequency
of
the
SR-73,
increasing
the
CD
changer
disc
number
or
for
selecting
the
playback
of
side
A
of
an
LD.
The
function
of
this
button
is
determined
according
to
the
system
select
switches.
P.SCAN
(preset
scan)/VIDEO
button
The
SR-73
preset
scan
button.
The
TUNER
input
is
selected
auto-
matically
when
this
button
is
pressed.
When
TV
is
selected,
use
this
button as
the
video
input
selector.
MUTE
button
Muting
button
of
TV
sound
TV
VOLUME
UP
(4&)/DOWN
(¥)
buttons
Volume
UP/DOWN
buttons
of
TV
MEMO
button
Memory
enable
button
for
various
preset
functions
1
to
9
buttons
Numeric
entry
buttons
14
—
nn
Note:
When
entering
digits
using
the
1
to
9
and
0/CL
buttons,
be
sure
to
set
the
SYSTEM
switch
beforehand
according
to
the
compo-
nent
to
be
controlled.
To
control
the
SR-73,
set
the
SYSTEM
switch
to
TUNER.
0/CL
(clear)
button
Numeric
button
for
entry
of
0.
Also
used
for
cancelling
various
modes
of
the
SR-73.
*
This
button
deletes
the
contents
of
the
preset
scan
and
auto
preset
memory
function.
Input
selector
buttons
Press
one
of
these
buttons
to
select
the
source
to
be
played.
Surround
selector
buttons
SURR
(surround)
mode
select
button
This
button
selects
the
surround
modes.
CENTRE
mode
select
button
This
button
can
be
used
only
when
the
surround
mode
is
PRO
LOGIC,
and
is
used
to
select
the centre
mode.
[S]
(surround
level)
VOLUME
UP
(4&)/DOWN
(¥)
buttons
These
buttons
are
only
provided
on
the
remote
contro!
and
can
only
be
used
when
one
of
the
surround
modes
has
been
selected.
They
are
used
to
increase
or
decrease
the
surround
channel
volume.
(centre
level)
VOLUME
UP
(4)/DOWN
(¥)
buttons
These
buttons
are
only
provided
on
the
remote
control
and
can
only
be used
when
the
surround
mode
is
PRO
LOGIC.
They
are
used
to
increase
or
decrease
the
centre
channel
volume.
ACOU
(acoustic)
button
This
button
is
used
for
presetting
or
recalling
surround
mode
and
volume
set-ups
with
the
acoustic
memory
function.
T.TONE
(Test
tone)
button
When
the
surround
mode
is
PRO
LOGIC,
use
this
button
in
the
volume
level
calibration
of
each
speaker.
When
this
button
is
pressed,
pink
noise
is
output
from
each
speaker
in
sequence.
DELAY
button
Use
this
button
to
set
the
delay
time
of
the
surround
channel
of
each
surround
mode.
MUTE
button
Muting
button
of
the
SR-73.
Press
this
button
to
temporarily
de-
crease
the
volume.
Press
again
to return to
the
previous
volume.
MASTER
VOLUME
UP
(4)/DOWN
(¥)
buttons
Master
volume
control
of
the
SR-73.
These
buttons
increase
or
decrease
the
front,
surround
and
centre
channel
volumes
simultane-
ously.
TX
indicator
This
indicator
lights
up
when
a
remote
control
button
is
pressed
to
transmit
a
remote
control
signal
to
the
main
unit.
If
this
indicator
becomes
dim,
this
means
that
the
batteries
are
exhausted.
Replace
both
batteries
with
new
ones.
LEARN
indicator
This
indicator
lights
up
when
a
button
to
be
programmed
is
pressed
in
learning
mode.
The
light
goes
off
after
the
signal
has
been
received
and
memorized.
For
details
refer
to
the
Learning
section
following
this
section.
Note
:
Refer
to
the
user
guide
of
each
component
for
the
use
of
the
buttons,
except
in
the
case
of
receiver
operation.
DCC
TEXT
button
This
button
is
used
to
display
the
text
of
a
DCC
player
when
the
system
switch
is
in
the
DCC
position.
Refer
to
the
user
guide
of
the
DCC
player.
SLEEP
TIMER
button
This
button
is
used
for
setting
the
sleep
timer.
!t
can
be
operated
in
the
same
way
as
the button
on
the
unit.
