Catch Sensors | V1 | Servicing and Maintenance
• Red wire: positive charge
15.
Put back the end cap and screw with the 1/8" Allen key (torque at 15 in-lbs / 2 N-m).
16.
Put back into place the PCBA and secure it with the retainers.
17.
Reconnect the battery.
18.
Replace the protective tape.
19.

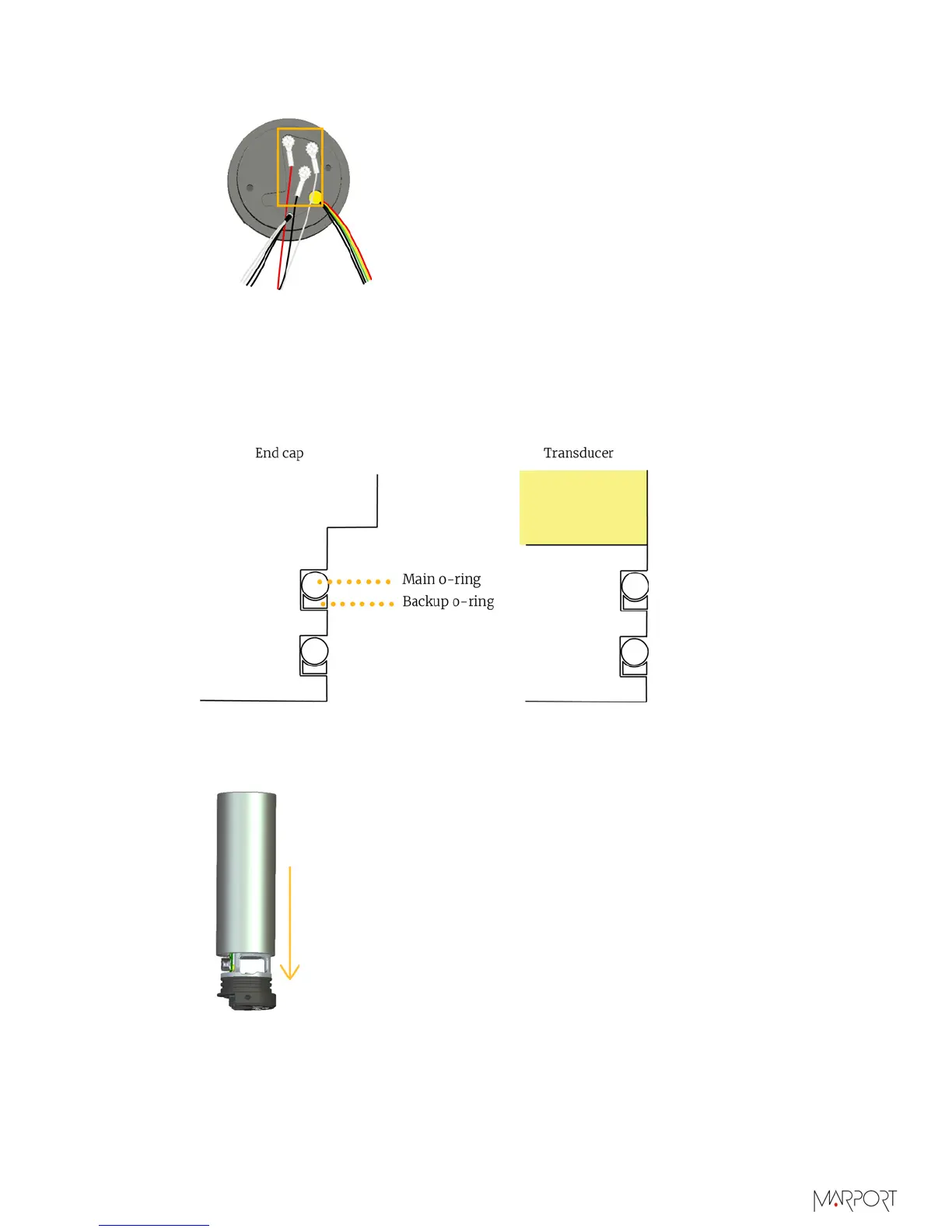

As a precaution, replace the 2 main o-rings and 2 backup o-rings on the end cap and
transducer as illustrated (cross-section). Inspect and fully clean the o-ring grooves.
20.
Check that all seals in the bottle are clean and lubricated. Apply lubricant if necessary.
21.
To insert the bottle back in the black tube, place the bottle on the ground and push the
black tube. The side of the tube that has a small curve goes first.
22.
Inspect and clean the retainer ring groove, then put back the retainer ring around the
transducer.
| 71
