Catch Sensors | V1 | Servicing and Maintenance
g)

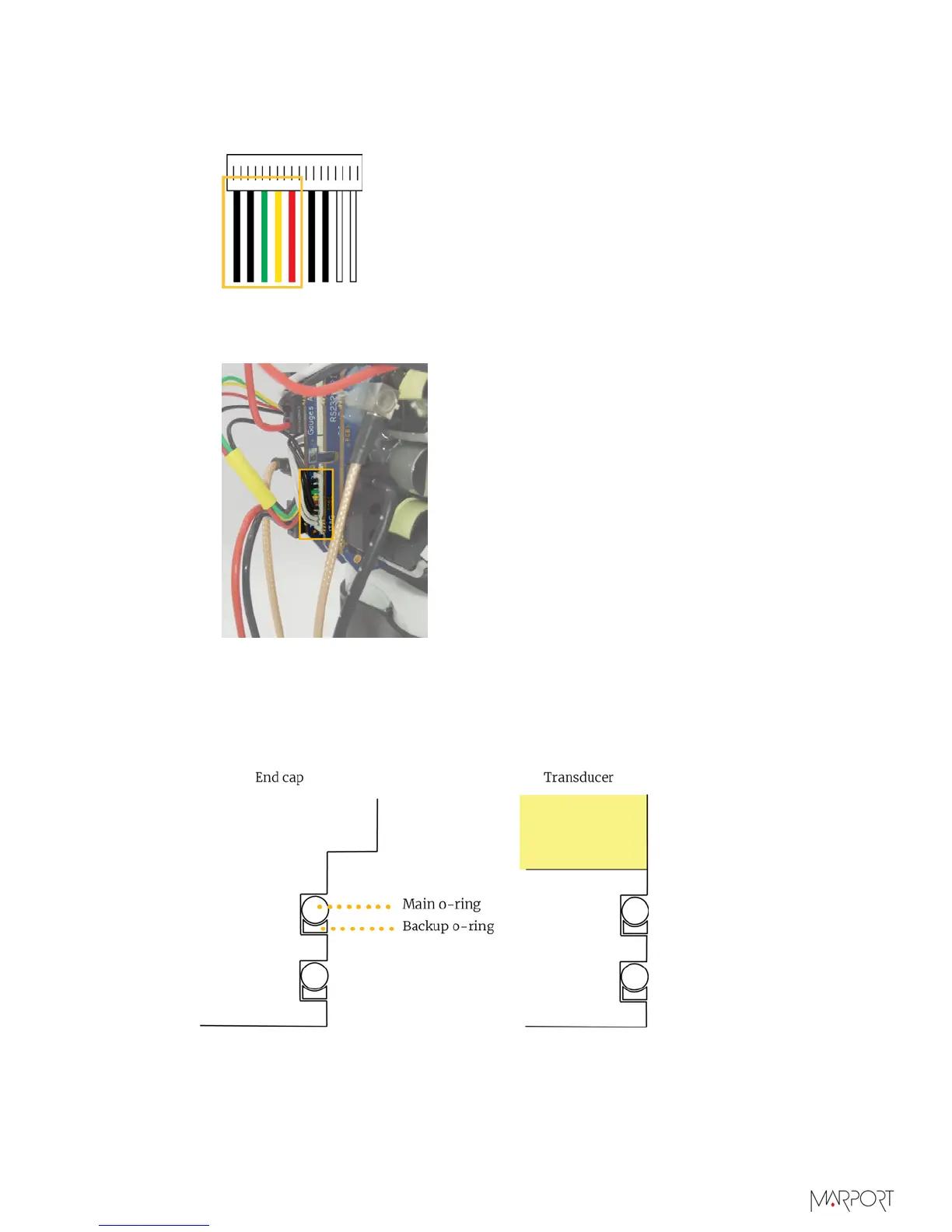

Put the pressure sensor cables through the hole in the internal housing and
connect them to the white connector in the following order (view of side with clips
upward):
h)
Put back the end cap and screw with the 1/8" Allen key (torque at 15 in-lbs / 2 N-
m).
i)
Connect the white connector to the PCBA.
13.
Put back into place the PCBA and secure it with the retainers.
14.
Reconnect the battery.
15.
Replace the protective tape.
16.
As a precaution, replace the 2 main o-rings and 2 backup o-rings on the end cap and
transducer as illustrated (cross-section). Inspect and fully clean the o-ring grooves.
17.
Check that all seals in the bottle are clean and lubricated. Apply lubricant if necessary.
