Catch Sensors | V1 | Servicing and Maintenance
b)

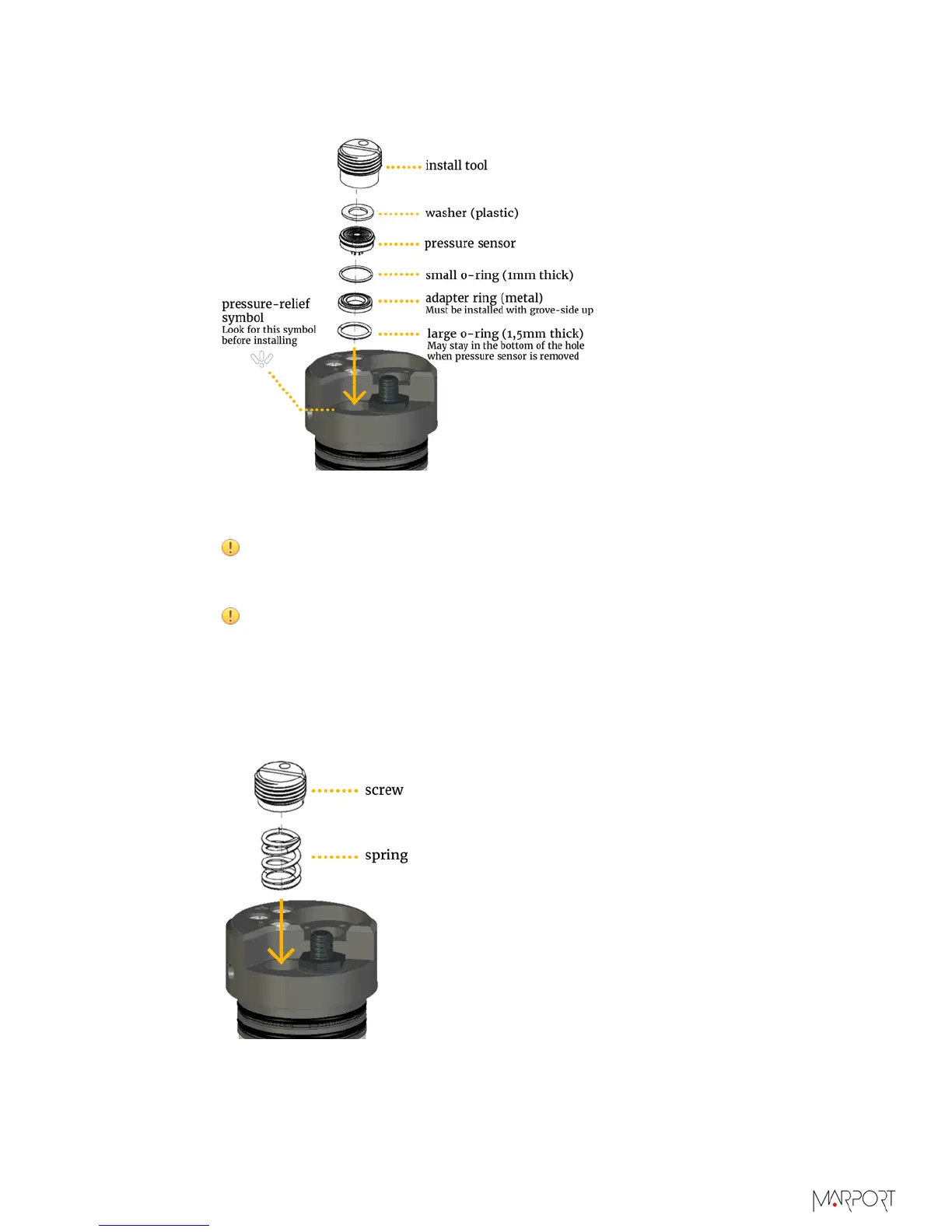

First, install the components in the following order (if no pressure-relief spring,
there is no washer):
c)
Insert the install tool into the hole in the end cap and tighten with the flat
screwdriver to set the pressure sensor in place. The install tool is longer than the
normal screw in order to push the pressure sensor to the bottom of the hole.
CAUTION: Always use the install tool to set the pressure sensor in place.
Never directly insert the spring and screw with the pressure sensor or you
may damage the pressure sensor.
CAUTION: Never push the pressure sensor from the outside with your finger
or any tool to put it into the hole. Pressure sensors have a thin membrane
that is very fragile and pressing it will damage the sensor. The install tool
correctly place the pressure sensor at the bottom.
d)
Remove the install tool. It is no longer needed.
e)
If you have a pressure-relief spring, put the spring into the hole in the end cap (if
you have no spring, only install the screw).
f)
Apply loctite on the screw thread and tighten the screw into the end cap with the
flat screwdriver to hold the spring in place.
| 81
