Catch Sensors | V1 | Servicing and Maintenance
9.
With the flat screwdriver, remove the screw above the pressure sensor.
10.

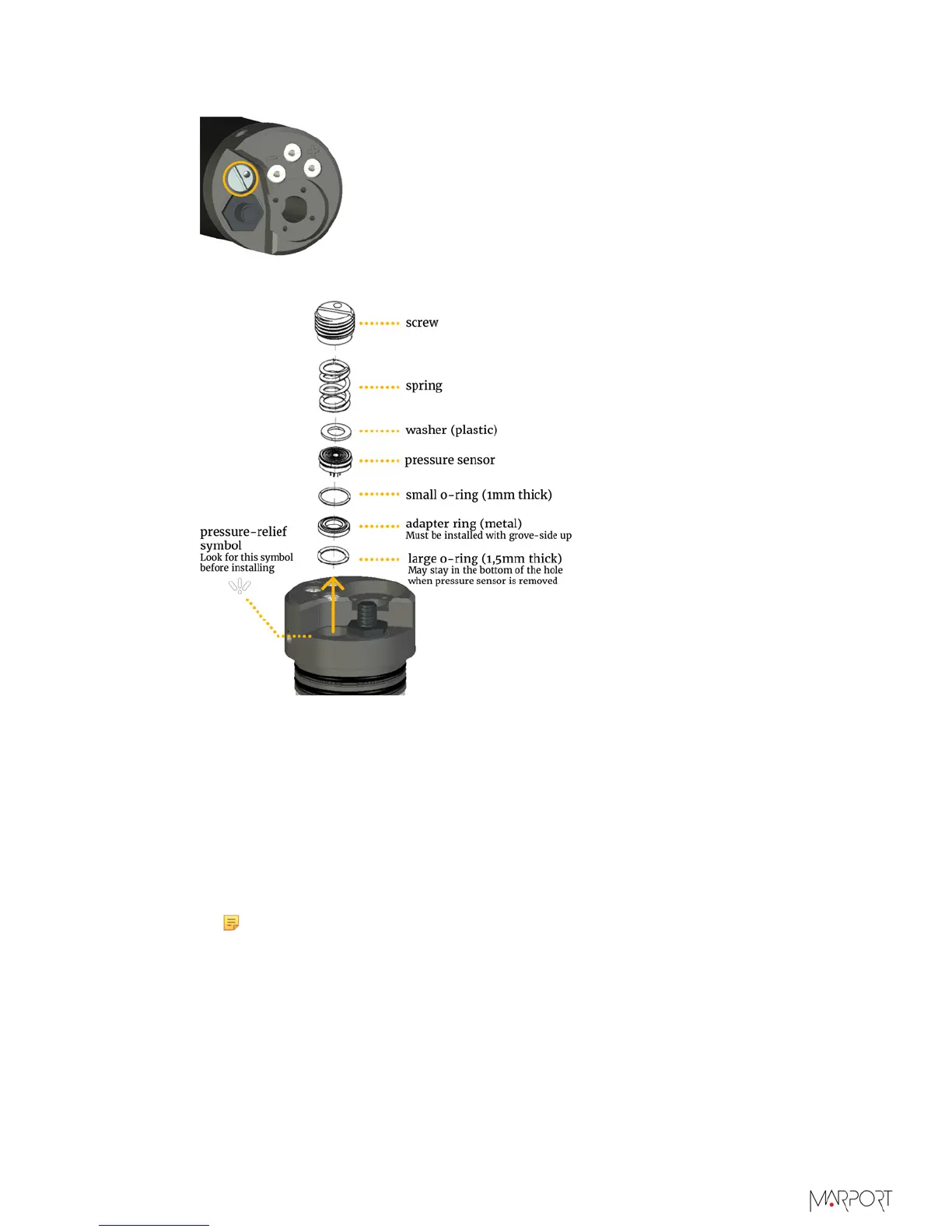

Remove the components from the hole of the end cap:
a)
Remove the spring and washer (if applicable) with tweezers.
b)
From the inside, push the pressure sensor and its cables out with a small
screwdriver or Allen key.
c)
Remove the o-ring seals and adapter ring with tweezers.
11.
Fully clean the surface and hole of debris (with a swab or Q-tip) and inspect the
surface for burrs or pitting.
12.
To replace the pressure sensor with a new one:
a)
On the new pressure sensor cables, strip the end of each cable and crimp pins to
each stripped cable.
Note: If you do not have the necessary tools to do these operations on the
cables, another solution is to keep the old cables connected to the connector,
cut them at mid-length and weld the new cables to them.
