Catch Sensors | V1 | Servicing and Maintenance
15.

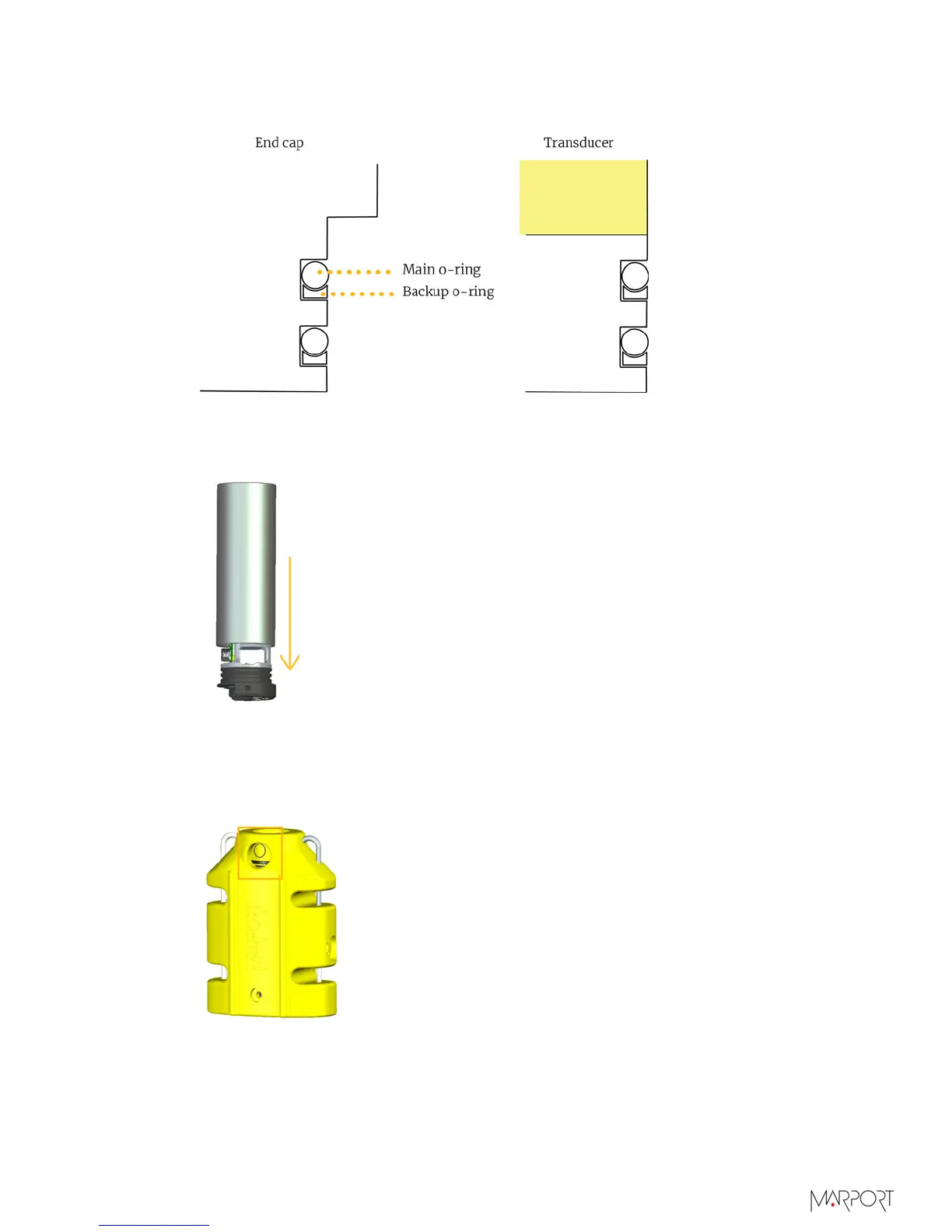

As a precaution, replace the 2 main o-rings and 2 backup o-rings on the end cap and
transducer as illustrated (cross-section). Inspect and fully clean the o-ring grooves.
16.
Check that all seals in the bottle are clean and lubricated. Apply lubricant if necessary.
17.
To insert the bottle back in the black tube, place the bottle on the ground and push the
black tube. The side of the tube that has a small curve goes first.
18.
Inspect and clean the retainer ring groove, then put back the retainer ring around the
transducer.
19.
Put back the housing around the bottle. The circle on the transducer must be on
the side of the housing that has no "UP" writing, and must be aligned to the round
opening in the housing.
