Catch Sensors | V1 | Servicing and Maintenance
9.

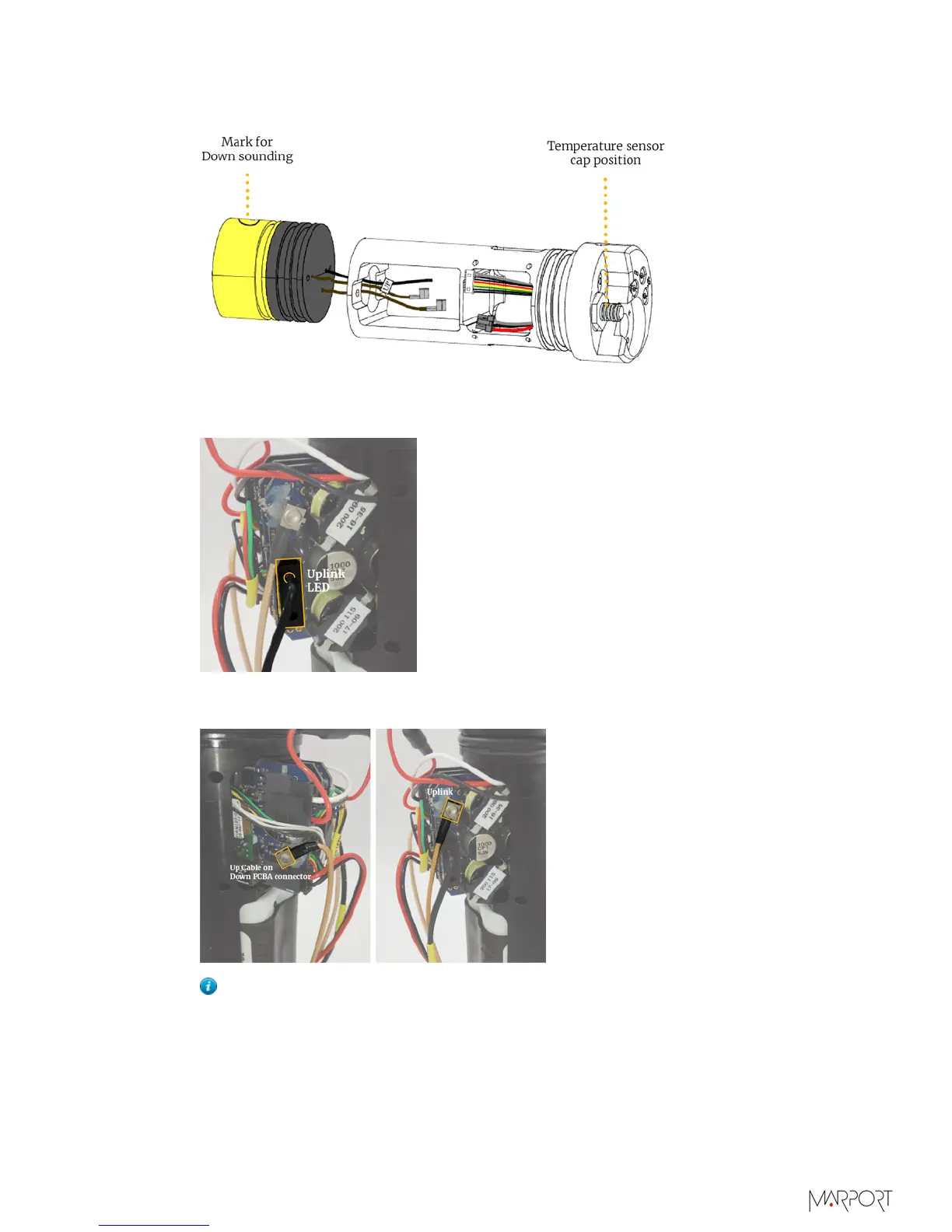

Install the new transducer: the uplink LED, up and uplink cables must go through the
hole in the internal housing.
10.
With an Allen key, screw back the transducer.
11.
Connect the uplink LED cable to the uplink LED connector.
12.
Connect the up (B) cable to the down connector on the PCBA, the uplink to uplink
connector and add silicone glue.
Tip: If you have a doubt, the cable types are written on them.
13.
Reconnect and put back the battery.
14.
Replace the protective tape.
| 86
