Masimo Rad-97 Operator's Manual

Rad-97 Chapter 4: Operation
www.masimo.com 88 Masimo

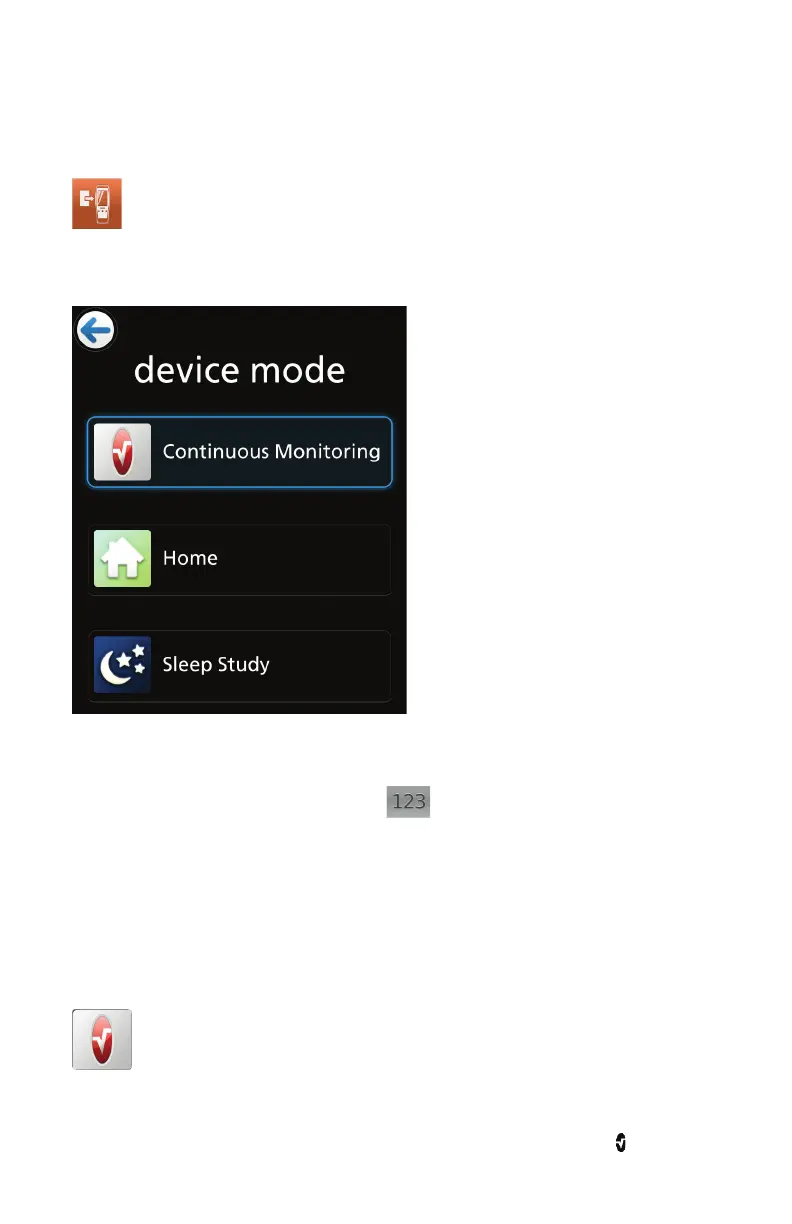

Device Mode
The Device Mode screen allows the user to select the device operating mode. Continuous
Monitoring is the default device mode. When the Rad-97 is turned off, the device mode is
stored. Rad-97 will start in the same mode when turned on again.
Note: Home mode is an optional feature.
Access to the Device Mode screen is password protected.
1. When the screen displays, press the key.
2. Enter the following: 6 2 7 4
To undo an entry, press the Backspace key.
3. Press the Enter key to access the Device Mode screen.
4. Select the desired option and select OK to set the device mode.
Continuous Monitoring
Continuous Monitoring mode is the standard mode of operation of the Rad-97 and includes
all functionality outlined in this Operator's Manual.

Masimo Rad-97 Specifications

General

Display Size	7 inches
SpO2 Accuracy	±2% (70-100%)
Pulse Rate Accuracy	±3 bpm
Perfusion Index Range	0.02% to 20%
Pleth Variability Index Range	0% to 100%
SpO2 Range	0% to 100%
SpHb Range	0 to 25 g/dL
SpCO Range	0% to 40%
Battery Type	Rechargeable lithium-ion
Operating Temperature	5°C to 40°C (41°F to 104°F)
Storage Temperature	-20°C to 60°C (-4°F to 140°F)
Humidity Range	10% to 95% non-condensing
Display	Color touchscreen
Connectivity	Wi-Fi, Ethernet, Bluetooth
Power Supply	100–240 VAC, 50–60 Hz
Battery Life	Approximately 4 hours
Measurements	SpO2, Pulse Rate, Perfusion Index, Pleth Variability Index, SpHb, SpOC, SpMet, SpCO
Pulse Rate Range	25 to 240 bpm
HbCO Range	0-99%
MetHb Range	0-99%
SpMet Range	0-99%
Data Storage	Internal memory
Alarms	Audible and visual alarms for all parameters
