MAXDATA PLATINUM Server Board User’s Manual
21
2 Installation Procedures
Install the I/O Shield
✏ NOTE
An ATX 2.03-compliant I/O shield is provided with the server board. The shield is required by
Electromagnetic Interference (EMI) regulations to minimize EMI. If the shield does not fit the
chassis, obtain a properly sized shield from the chassis supplier. The I/O shield does not support
the use of the USB 2 connector.
The shield fits the rectangular opening in the back of a chassis. The shield has cutouts that
match the I/O ports.
1. Install the shield from inside the chassis. Orient the shield so that the cutouts align with
the corresponding I/O connectors on the server board. Make sure the metal fingers are
on the inside of the chassis.
2. Position one edge (A) so that the dotted groove is outside the chassis wall, and the lip of
the shield rests on the inner chassis wall.
3. Hold the shield in place, and push it into the opening (B) until it is seated. Make sure the
I/O shield snaps into place all the way around.

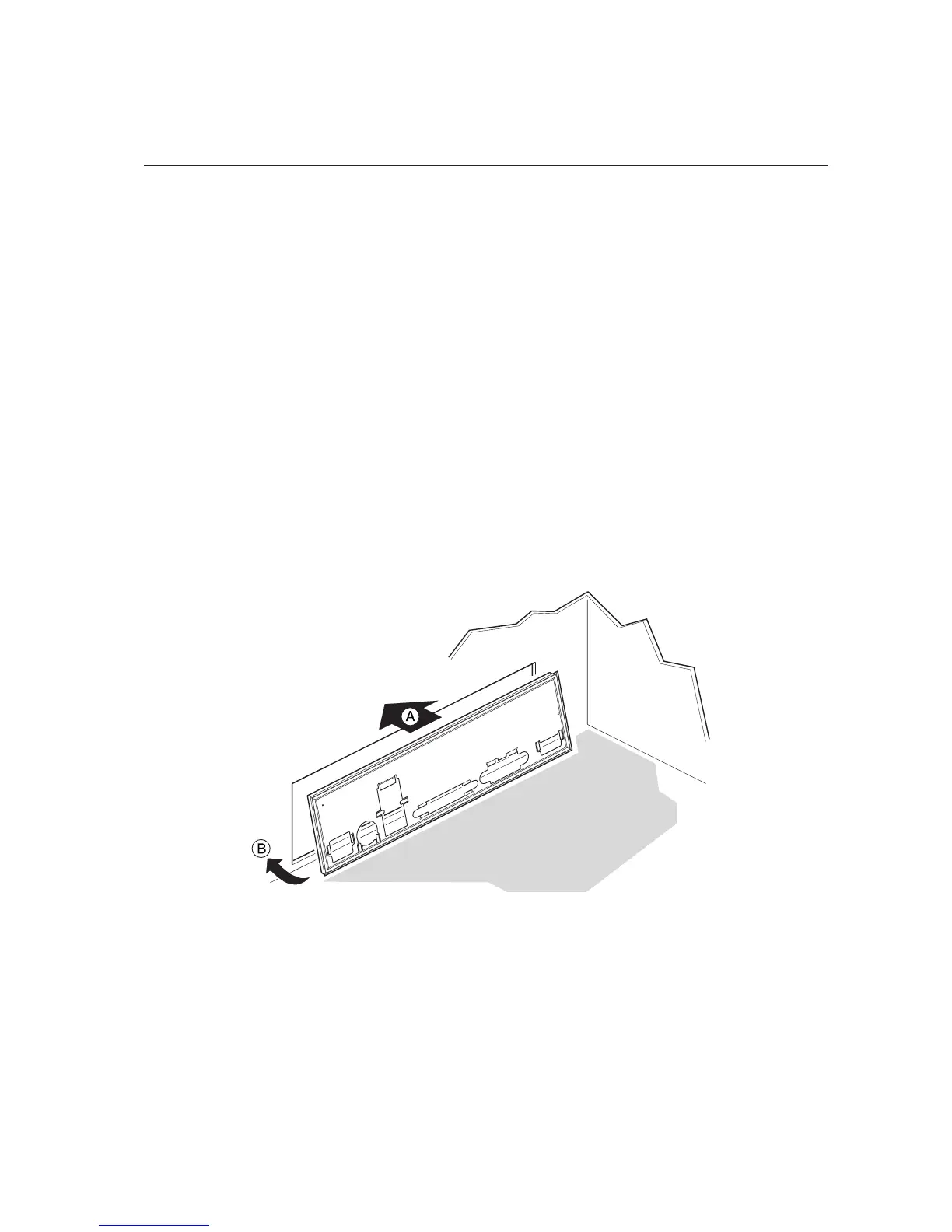

Figure 5. Installing the I/O Shield
