MAXDATA PLATINUM Server Board User’s Manual
87
6 Technical Reference
Server Board Jumpers

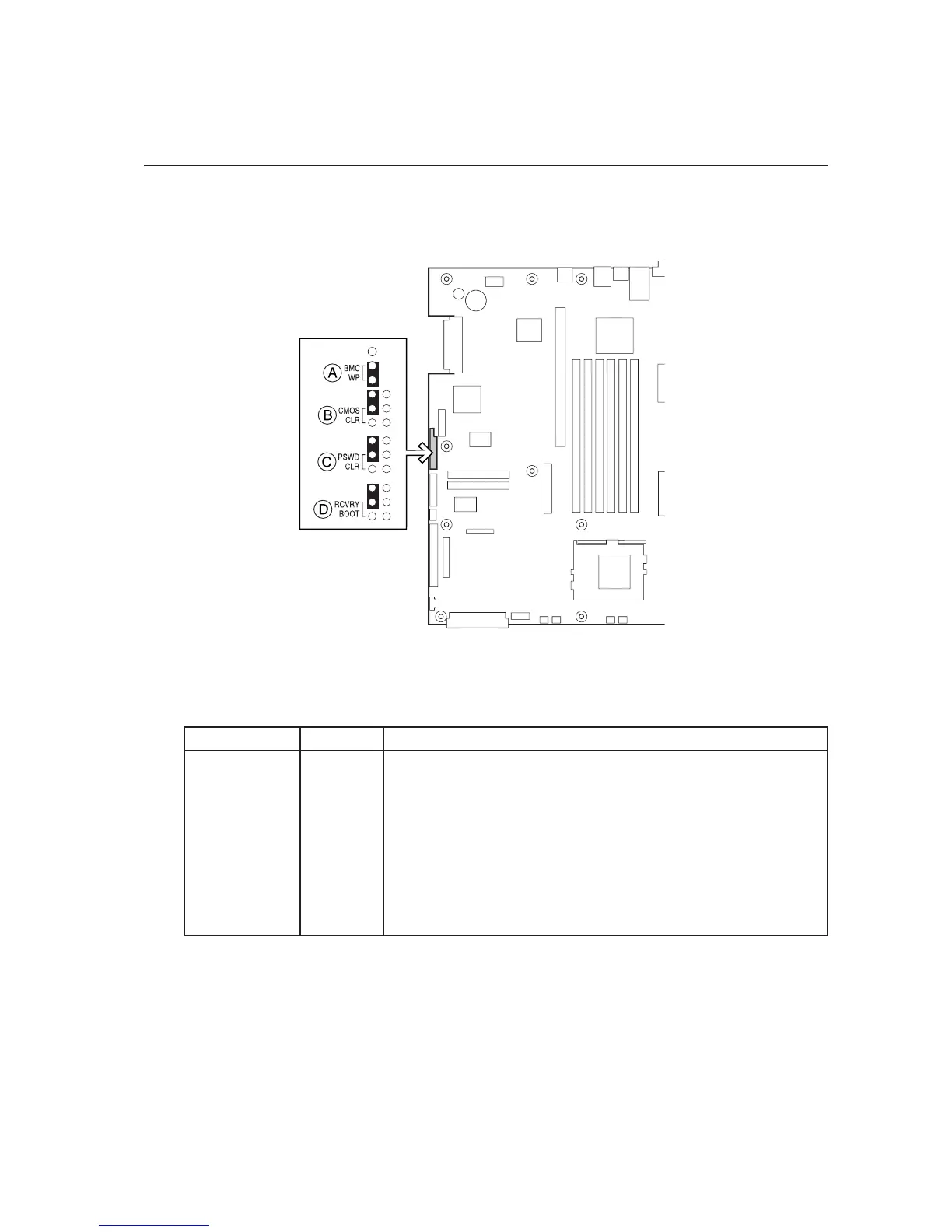

Figure 30. Jumper Locations
Table 10. Configuration Jumper
Jumper Name Pins What it does at system reset
BMC WP A BMC boot block is write protected (normal operation). If these pins are
not jumpered, BMC boot block is erasable and programmable at next
reset.
CMOS CLR B If these pins are jumpered, the CMOS settings are cleared. These pins
should not be jumpered for normal operation.
PSWD CLR C If these pins are jumpered, the CMOS password is cleared. These pins
should not be jumpered for normal operation.
RCVRY BOOT D If these pins are jumpered, the system will attempt BIOS recovery.
These pins should not be jumpered for normal operation.
