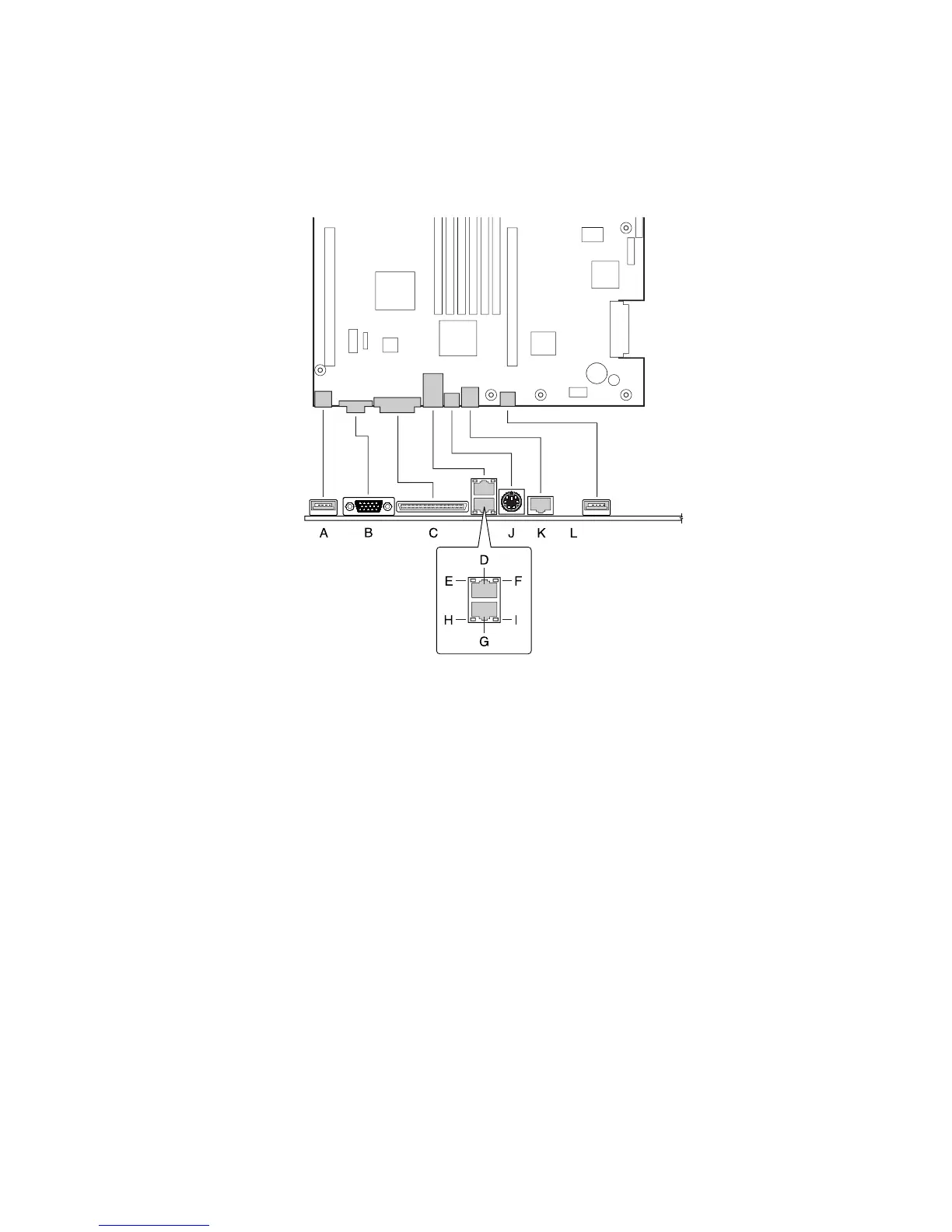

Back Panel Connectors
A. USB 1 connector
B. Video connector
C. SCSI connector (SCSI server board only)
D. NIC 2 RJ-45 connector
E. Green Status LED
F. Yellow Status LED
G. NIC 1 RJ-45 connector
H. Green Status LED
I. Yellow Status LED
J. PS/2 keyboard/mouse connector
K. RJ-45 serial port
L. USB 2 connector
Figure 2. Back Panel Connectors
