CYLINDER HEAD
Page 4A-42 90-828631R3 MARCH 1999

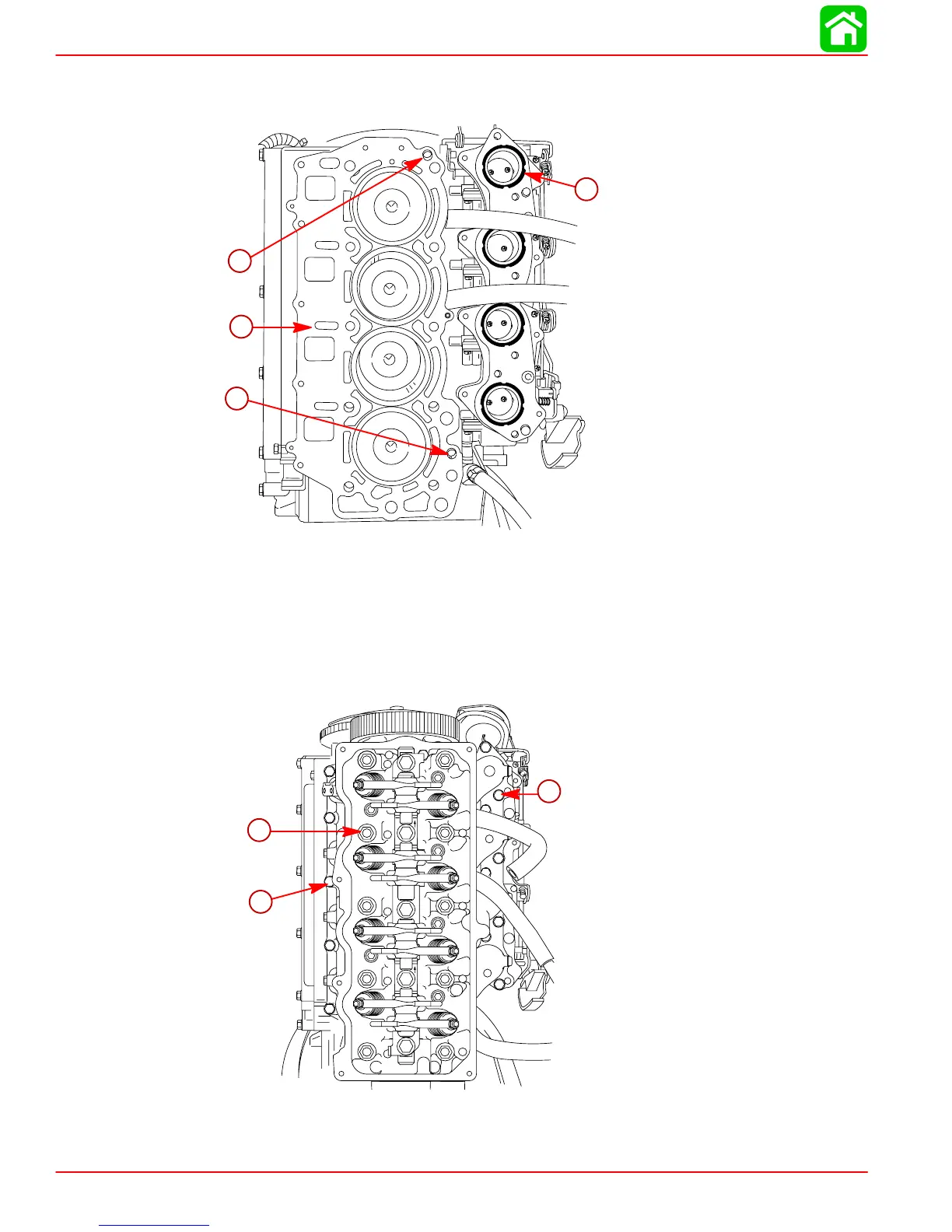

Cylinder Head Gasket
1. Install cylinder head gasket and dowel pins.
a
b
c
a
a-Dowel Pin (2)
b-Gasket
c-Flange Seals (4)
Cylinder Head Installation
1. Apply engine oil to the threads of each bolt and seat surface.
2. Fasten cylinder head with bolts shown.
53727
a
b
c
a-Center Bolts (10)
b-Cylinder Head Flange Bolts (5)
c-Carburetor Flange Bolts (8)
To Next Page
