MANUAL TILT ASSIST
90-828631R3 MARCH 1999 Page 5D-31

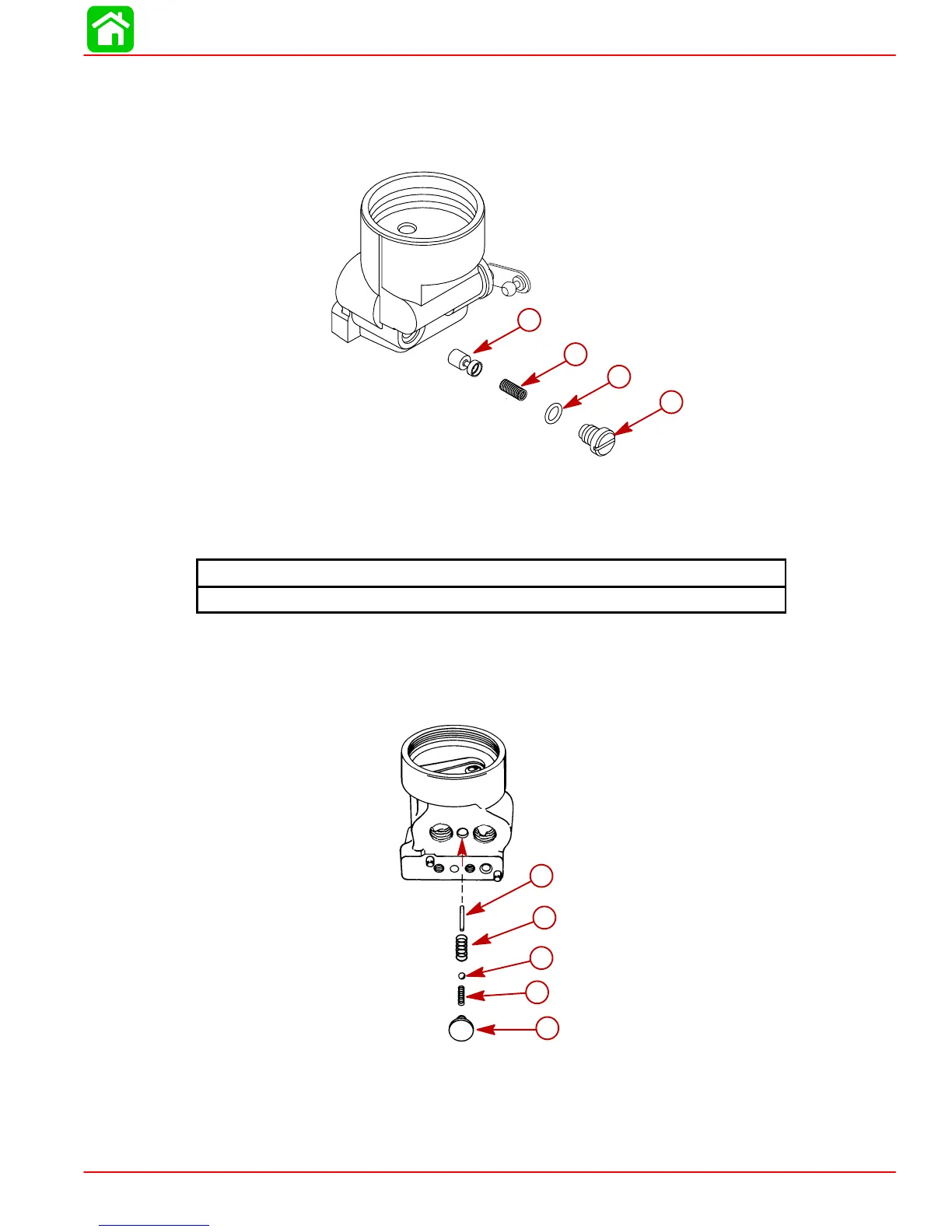

VELOCITY VALVE REASSEMBLY
1. Install spool, spring, lubricated O-ring and screw plug (surge valve assembly) into valve
block.
2. Torque velocity valve to specified torque.
d
c
b
a
a-Spool
b-Spring
c-O-ring
d-Velocity Valve
Velocity Valve Torque
75 lb-in. (8.5 Nm)
CHECK RETAINER REASSEMBLY
1. Install plunger, spring (large), ball, spring (small), and plug into valve block.
51142
a
b
c
d
e
a-Plunger
b-Spring (Large)
c-Ball
d-Spring (Small)
e-Plug
