Mercury 40 Service Manual

TILLER HANDLE
Page 7B-16 90-828631R3 MARCH 1999
7. Install tiller handle assembly.
8. Pry up the left side lower corner of the rubber grommet in order to fit the wiring in the
lower opening.
9. Connect the auxiliary harness. Refer to wiring diagram on next page.
10. Bundle all the wiring connections and fasten together with a sta-strap.
54272
a
b
f
c
d
e

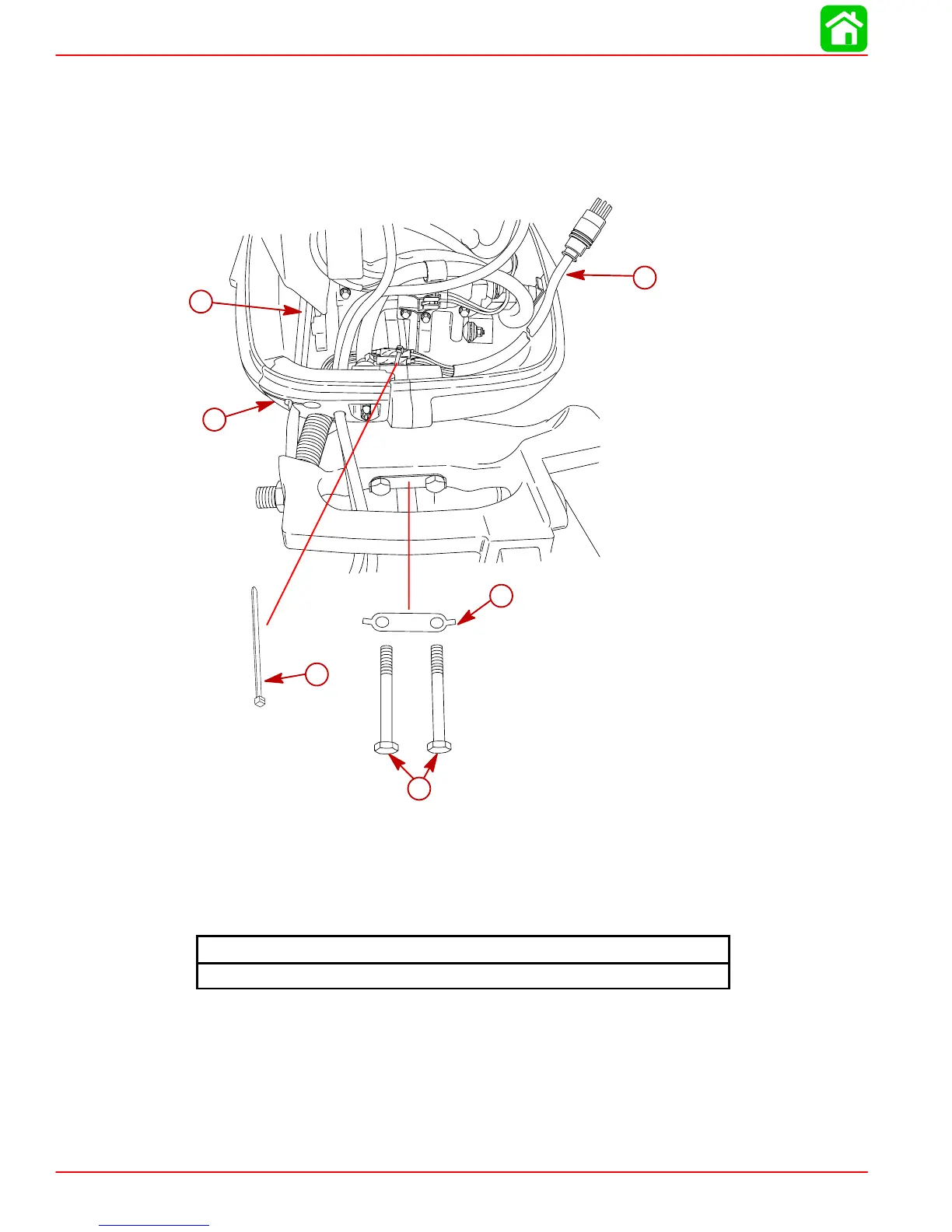

a-Screw (2)
b-Tab Washer, Lock - Bend Tabs Against the Screw Heads
c-Rubber Grommet
d-Throttle Cables
e-Auxiliary Harness
f-Sta-Strap
Tiller Handle Screw Torque
32 lb-ft (43.4 Nm)

Mercury 40 Specifications

General

Horsepower	40 hp
Starting System	Electric
Steering	Remote
Fuel Induction System	EFI (Electronic Fuel Injection)
Shaft Length	20"
Full Throttle RPM Range	6000
