Mercury 40 Service Manual

TILLER HANDLE
90-828631R3 MARCH 1999 Page 7B-17

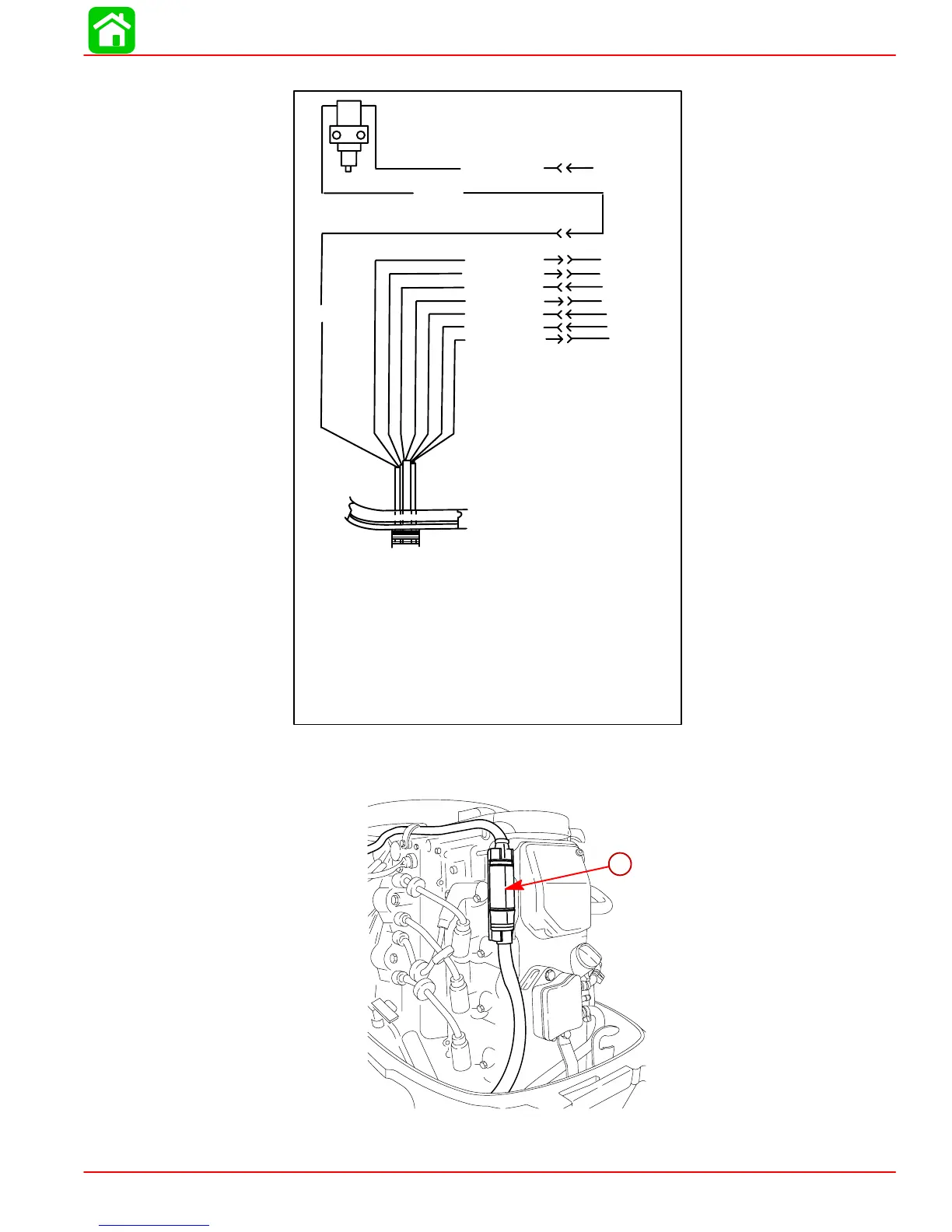

11. Reconnect wires.
RED
BLK
TAN/BLU
PUR
BLK/YEL
BLK
BLK
BLK/YEL
YEL/RED
BLK
YEL/RED
BLK/YEL
BLK/YEL
BLK
TAN
RED
BLK
RED
BLK = Black
BLU = Blue
GRY = Gray
GRN = Green
PUR = Purple
RED = Red
TAN = Tan
YEL = Yellow
12. Connect wiring harness into the engine wiring harness. Push the harness connection
into the holder.
a
a-Engine Wiring Harness

Mercury 40 Specifications

General

Horsepower	40 hp
Starting System	Electric
Steering	Remote
Fuel Induction System	EFI (Electronic Fuel Injection)
Shaft Length	20"
Full Throttle RPM Range	6000
