TILLER HANDLE
Page 7B-18 90-828631R3 MARCH 1999
13. Rotate throttle grip to idle position.

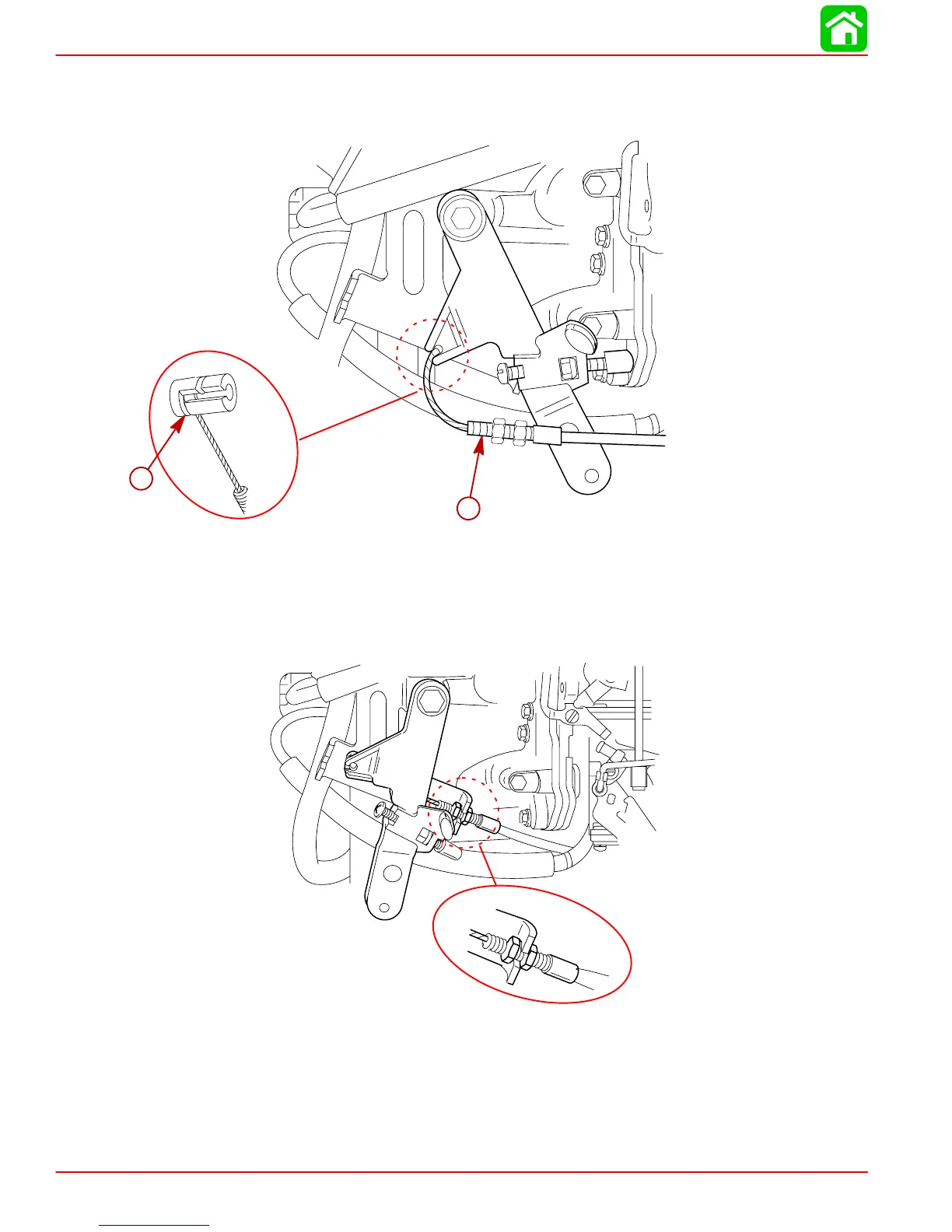

14. Insert the anchor on the shorter throttle cable into the anchor hole on the throttle lever.
Push in the anchor until it bottoms out. Cable has to be aligned with the slot.
54282
b
a
a-Shorter Throttle Cable
b-Cable Must be able to Rotate in Slot
15. Bring the throttle cable to the back side of the throttle lever. Place the throttle cable into
the notch in the cable bracket.
NOTE: Throttle cam was removed to show cable installation.
54283
