TILLER HANDLE
90-828631R3 MARCH 1999 Page 7B-19

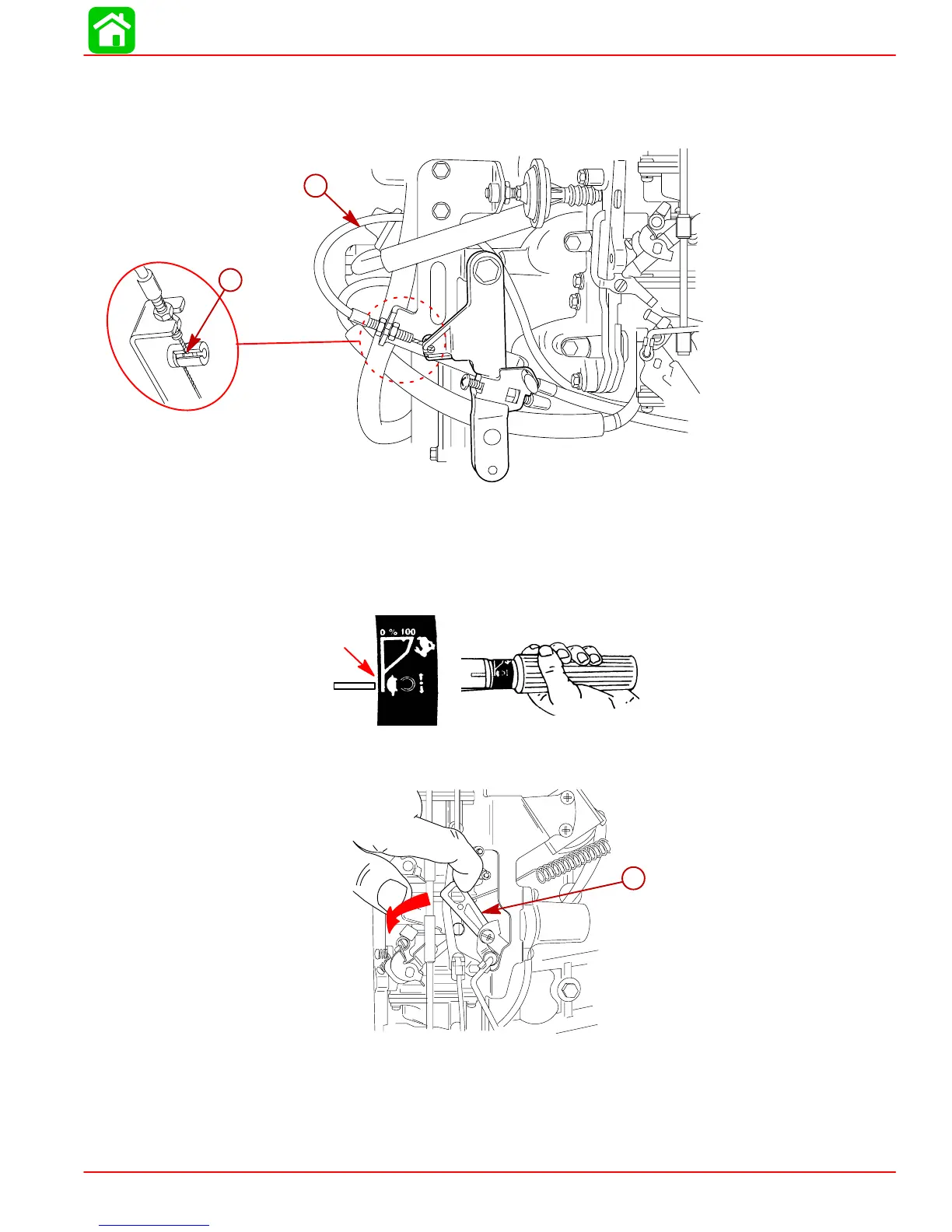

16. Route the longer throttle cable behind the cable bracket as shown.
17. Insert the anchor into the anchor hole on the throttle cable.
18. Place the throttle cable into the notch in the cable bracket.
54284
a
b
a-Longer Throttle Cable (Position Behind Cable Bracket as Shown)
b-Cable Must be able to Rotate in Slot
19. Adjust the throttle cables as follows:
a. Position the throttle grip to idle position.
b. Move the throttle linkage arm down.
a
a-Throttle Linkage Arm
