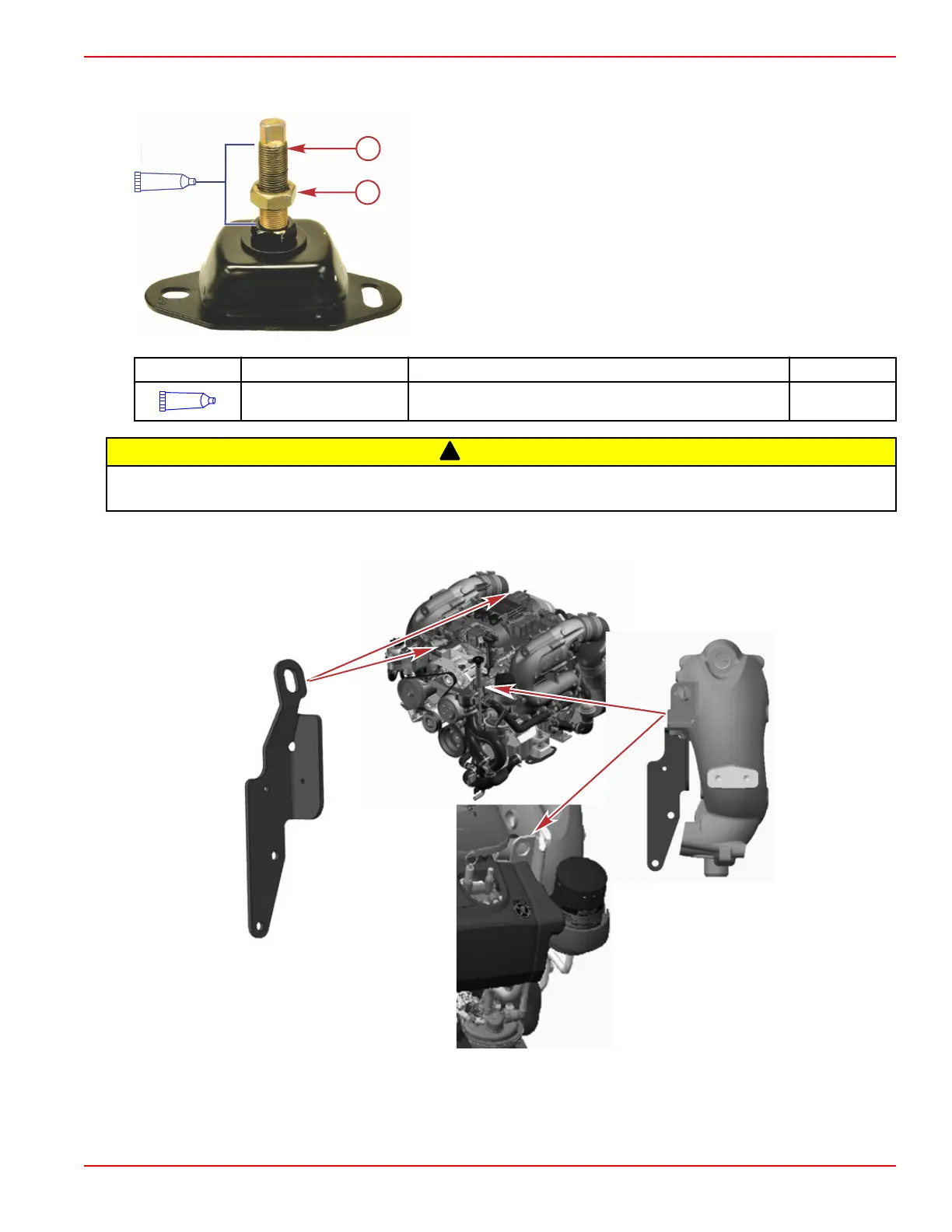

3. Install the front mount adjustment nuts midway on the studs so that adequate up and down adjustment exists for engine
alignment.
Front mount
a - Front mount stud
b - Adjustment nut
Tube Ref No. Description Where Used Part No.
Loctite Silver Graphite
Anti-Seize Spray
Front mount studs 92-898101390
!
CAUTION
Improper lifting during removal or installation of the engine can cause injury or damage to engine components. Use a hoist,
lifting arm, or other approved lifting device. Do not allow the lifting device to hook or compress any engine components.
4. Attach a suitable sling, lifting corner to corner across the engine and lifting arm to the engine lifting eyes and adjust it so
that the engine is level when suspended.
IMPORTANT: Maintain a minimum 66 cm (26 in.) on each length or use a spreader bar so that no components are
damaged.
5. Lift the engine into position in the boat using an overhead hoist.
IMPORTANT: When lowering the engine into position do not set the engine on the shift cable.
Installation
90-8M0099748 eng DECEMBER 2015 © 2016 Mercury Marine Page 2B-5
