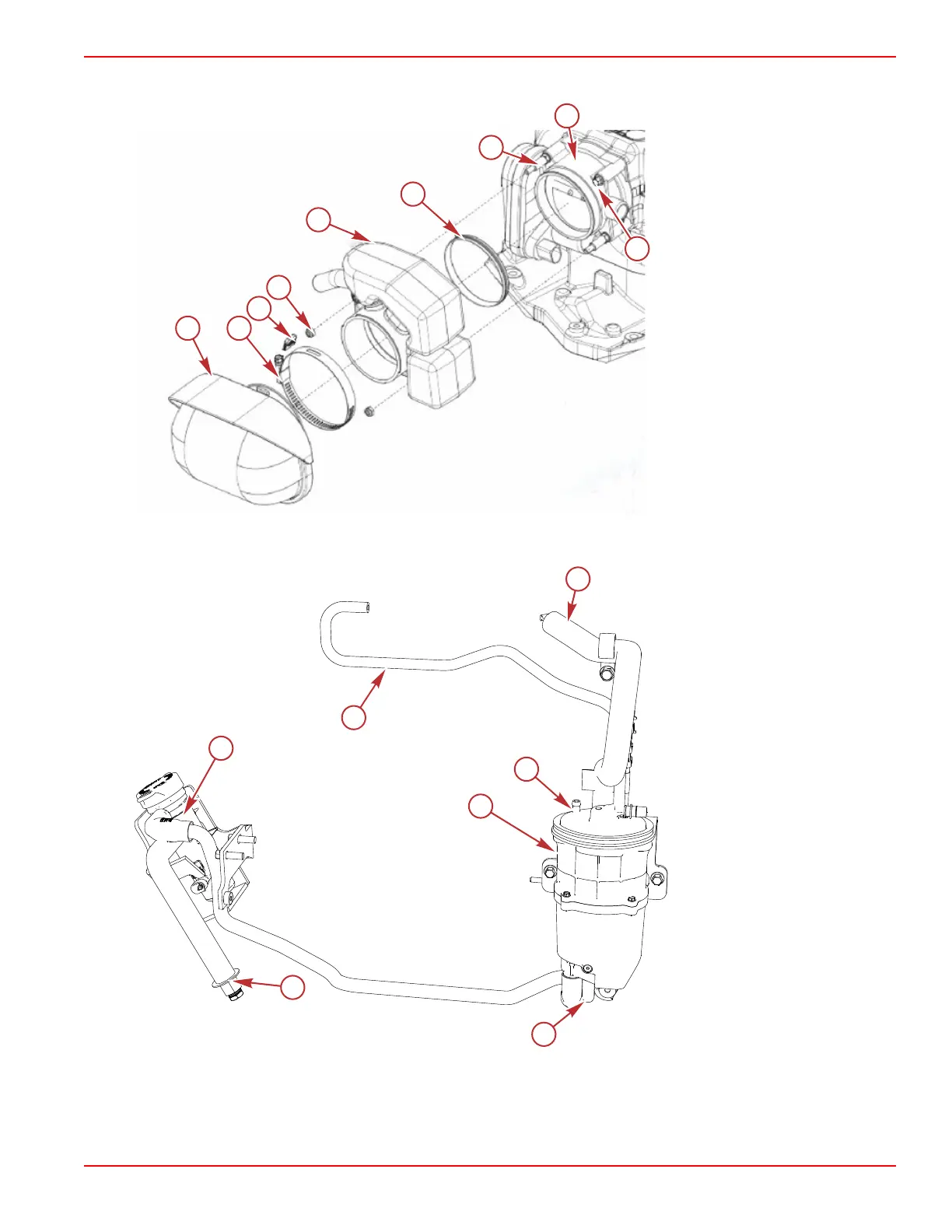

Mercury MERCRUISER - Fuel System Module; Throttle Body

Throttle Body
a - Throttle body
b - Stud (2)
c - Screw (2)
d - Seal
e - Nut (2)
f - Resonator
g - Clamp
h - Flame arrestor
i - Clamp cover
Fuel System Module
a - Water‑separating fuel filter
b - Fuel supply module
c - Manifold hose
d - Hose to fuel rail
e - Supply hose
f - Cooling hose
g - Hose to strainer assembly
h
g
e
f
d
c
b
a
i
59421
a
b
c
d
e
f
56553
g
MPI ECT Fuel System
90-8M0099748 eng DECEMBER 2015 © 2016 Mercury Marine Page 5A-9
