5. Remove the intake manifold assembly.
59468
6. Remove and discard the intake manifold gaskets.
NOTE: If the intake manifold requires replacement, transfer all components to the new manifold.
Hydraulic Valve Lifters

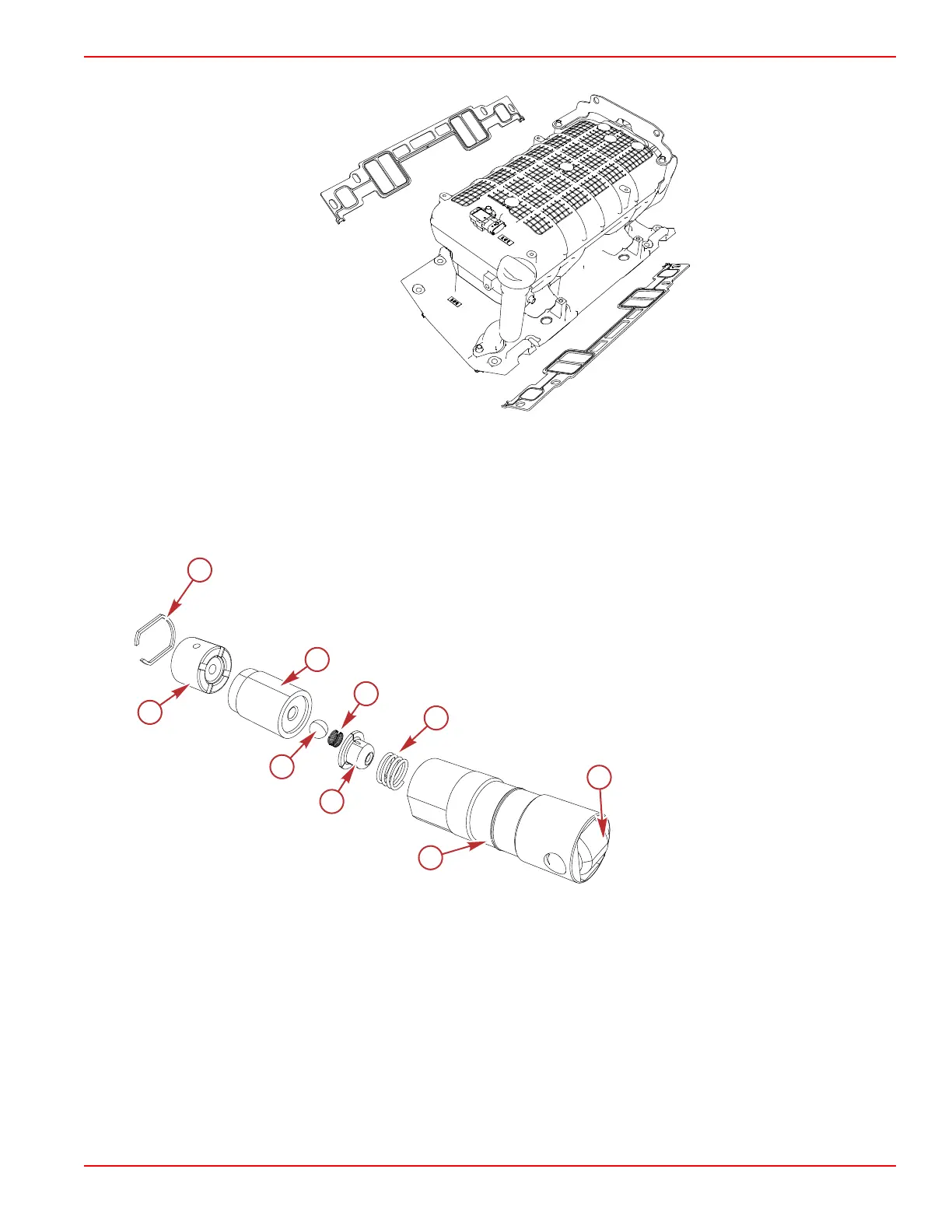

Exploded View
a - Pushrod seat retainer clip
b - Pushrod seat
c - Plunger
d - Check ball
e - Check ball spring
f - Check ball retainer
g - Plunger spring
h - Lifter body
i - Roller
Special Information
Hydraulic valve lifters require little attention. These lifters are extremely simple in design. Normally, adjustments are not
necessary and servicing requires only that care and cleanliness be exercised in the handling of parts.
Removal
IMPORTANT: Organize and store the rocker arm assemblies, pushrods, and valve lifters in matched sets for assembly and
installation in their original locations.
55004
a
b
c
d
e
f
g
h
i
Engine Disassembly
90-8M0099748 eng DECEMBER 2015 © 2016 Mercury Marine Page 3A-25
