5. Secure the throttle cable to the throttle demand sensor pin with the clip. Secure the barrel to the shift plate stud with a
washer and cotter pin. Spread the end of the cotter pin.

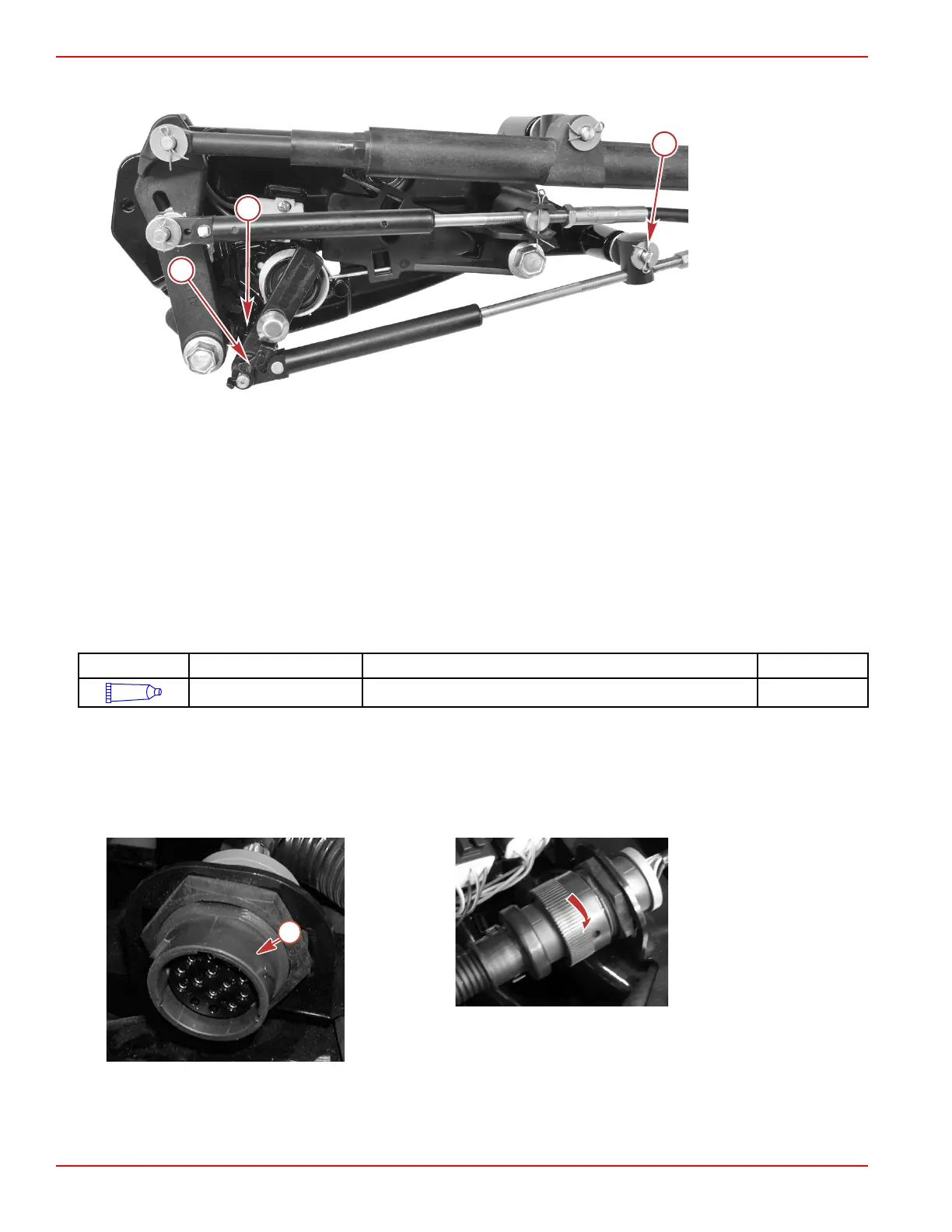

a - Throttle demand
sensor pin clip
b - Throttle stop
c - Washer and cotter
pin
Connecting the Electrical Components
Electrical Connections
IMPORTANT: Refer to the following precautions when working on or around the electrical harness, or when adding other
electrical accessories, to avoid damage to the electrical system.
• Do not tap accessories into the engine harness.
• Do not puncture wires for testing (probing).
• Do not reverse the battery leads.
• Do not splice wires into the harness.
• Do not attempt diagnostics without the proper, approved service tools.
IMPORTANT: When routing all wire harnesses and hoses, ensure that they are routed and secured to avoid coming in contact
with hot spots on engine and to avoid contact with moving parts.
Tube Ref No.
Description Where Used Part No.
25
Liquid Neoprene All electrical connections 92- 25711 3
Engine Harness Connections
1. Route the instrumentation wiring harness back to the engine, making sure that the harness does not rub or get pinched. If
an extension harness is required, ensure that the connection is properly secured.
2. Fasten the harnesses to the boat at least every 46 cm (18 in.) using the appropriate fasteners.
3. Connect the instrumentation wiring harness to the engine harness connector. Turn the locking ring until it firmly snaps.
Typical
a - Engine harness
connector
4. Connect the transom harness.
5. Connect the depth transducer connector to the data link connector on the engine harness.
6. Connect the paddle wheel/tank level connector.
7. Connect the power harness (with 5‑amp fuse) connector.
23135
