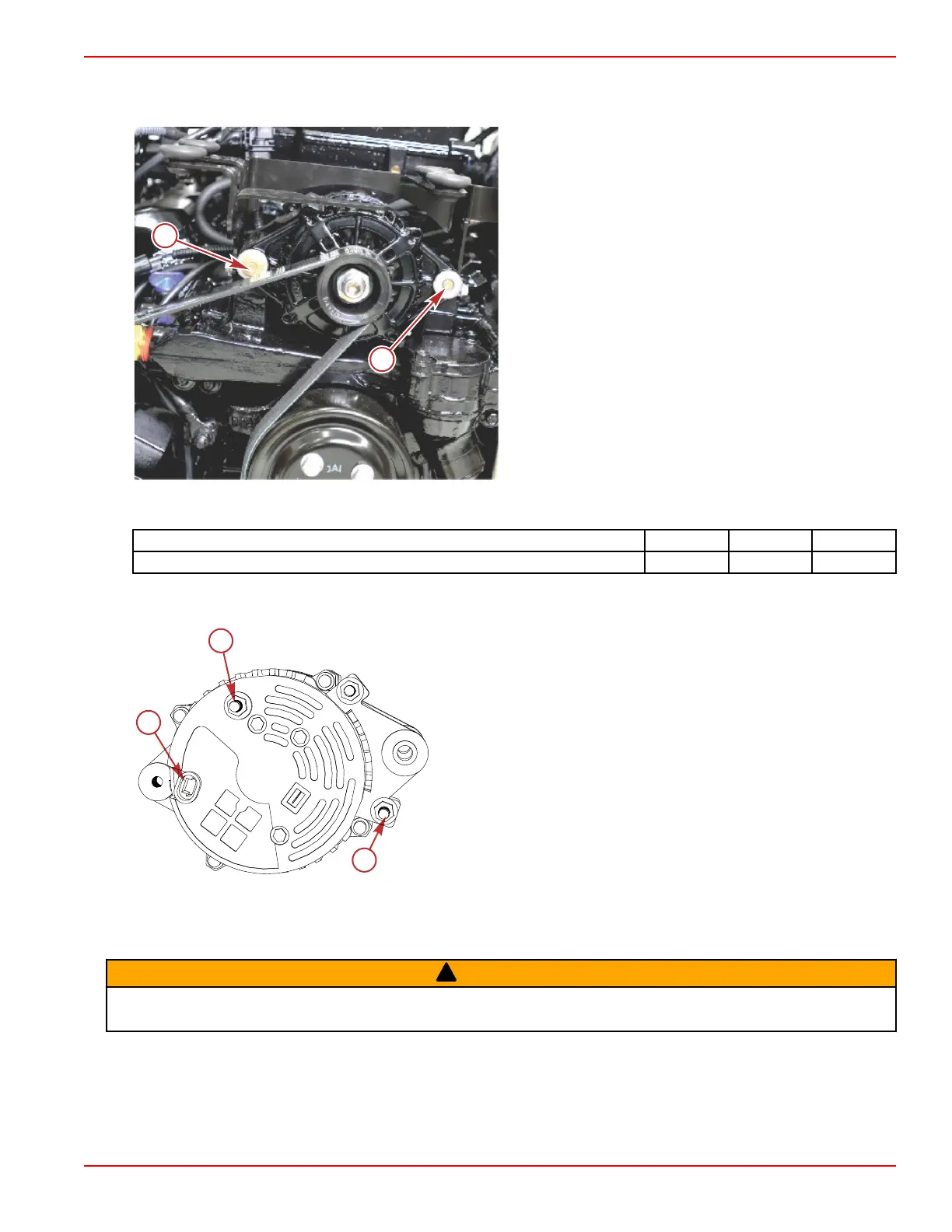

Alternator Installation
1. Position the alternator in the mounting bracket.
a - Hex flange bolt, washer, and nut
b - Screw
2. Install the mounting hardware and tighten to the specified torque.
Description
Nm lb‑in. lb‑ft
Alternator mounting hardware 27 20
3.
Install the drive belt and adjust the tension. Refer to Maintenance–1C.
4. Reconnect the alternator wiring.
a - Orange battery lead
b - Harness connector
c - Ground
5. Reconnect both battery cables, being certain to connect the negative (–) cable last.
Serpentine Drive Belt
!
WARNING
Inspecting the belts with the engine running may cause serious injury or death. Turn off the engine and remove the ignition
key before adjusting tension or inspecting belts.
IMPORTANT: The brackets and washers on the idler pulleys must be in a certain order or the serpentine belt will come off. All
pulleys are referenced as though you were standing in front of the engine looking at the belt.
a
b
56572
a
b
c
56579
Charging System
90-8M0099748 eng DECEMBER 2015 © 2016 Mercury Marine Page 4C-7
