Transom Harness

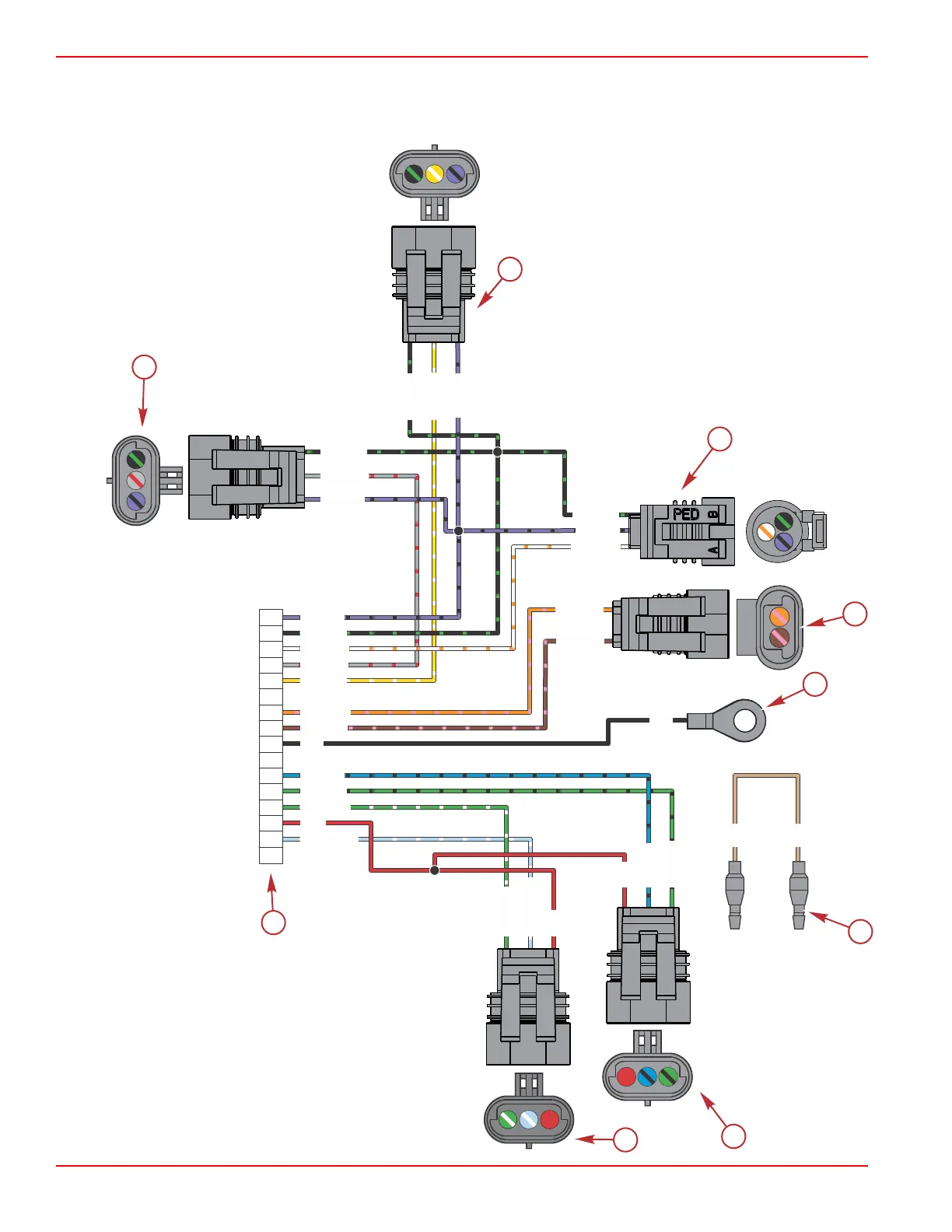

Transom Harness Wiring Diagram (Sterndrive)

55583

PPL/BLK

BLK/GRN

WHT/ORN

GRY/RED

YEL/WHT

ORN/PNK

BRN/PNK

BLK

BLU/BLK

GRN/BLK

GRN/WHT

RED

LT BLU/WHT

TAN

BLK

BRN/PNK

ORN/PNK

WHT/ORN

BLK/GRN

PPL/BLK

GRY/RED

BLK/GRN

PPL/BLK

YEL/WHT

GRN/BLK

BLU/BLK

RED

LT BLU/WHT

GRN/WHT
