2. Replace the oil pan if necessary.

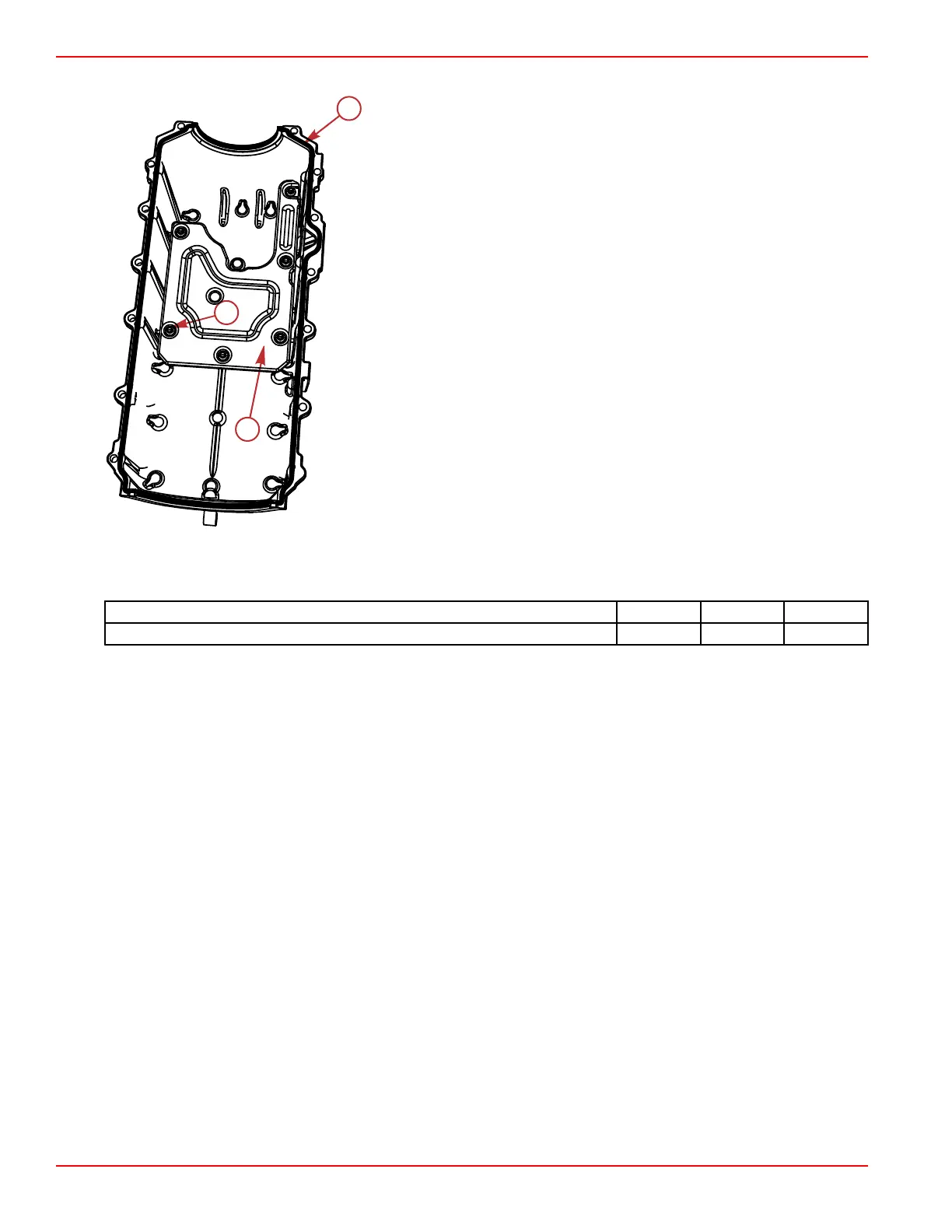

a - Bolt (6)

b - Oil pan

c - Oil pan baffle

3. Remove and clean the oil pan baffle.

4. Install the oil pan baffle and the bolts. Tighten the oil pan baffle bolts to the specified torque.

Description

Nm lb‑in. lb‑ft

Oil pan baffle bolt 15 132.7 –

Installation

IMPORTANT: The adhesive sets up in about 15 minutes. Complete the assembly while the adhesive is still wet.

59550
