Changing
Contact your authorized Mercury MerCruiser dealer.
Power Trim Fluid
Checking
IMPORTANT: Check the fluid level with the sterndrive unit in the full down (in) position only.
1. Place the sterndrive unit in full down (in) position.
2. Observe the fluid level. The fluid level must be between the "MIN" and "MAX" lines on the reservoir.
a - Reservoir
b - "MIN" and "MAX" lines
3.
Fill as necessary with the specified fluid. Refer to Filling.
Tube Ref No.
Description Where Used Part No.
114
Power Trim and Steering
Fluid
Power trim pump 92-858074K01
Filling
1. If the fluid level is below the "MIN" line, the specified fluid must be added.
2. Remove the fill cap from the reservoir.
NOTE: The fill cap is vented.

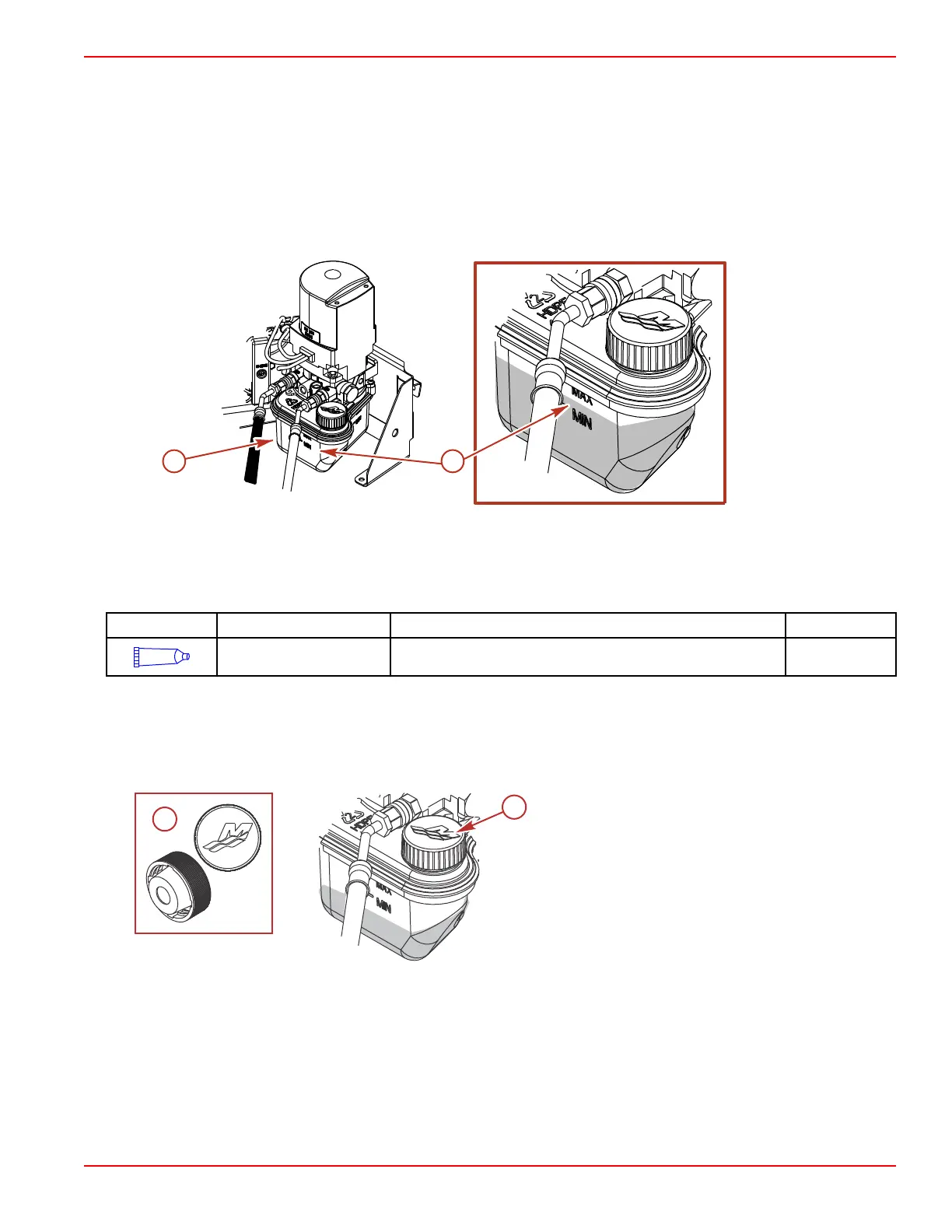

Power trim pump reservoir shows the oil level is below
the "MIN" line
a - Fill cap assembly
b - Fill cap installed
a
b
7876
Maintenance
