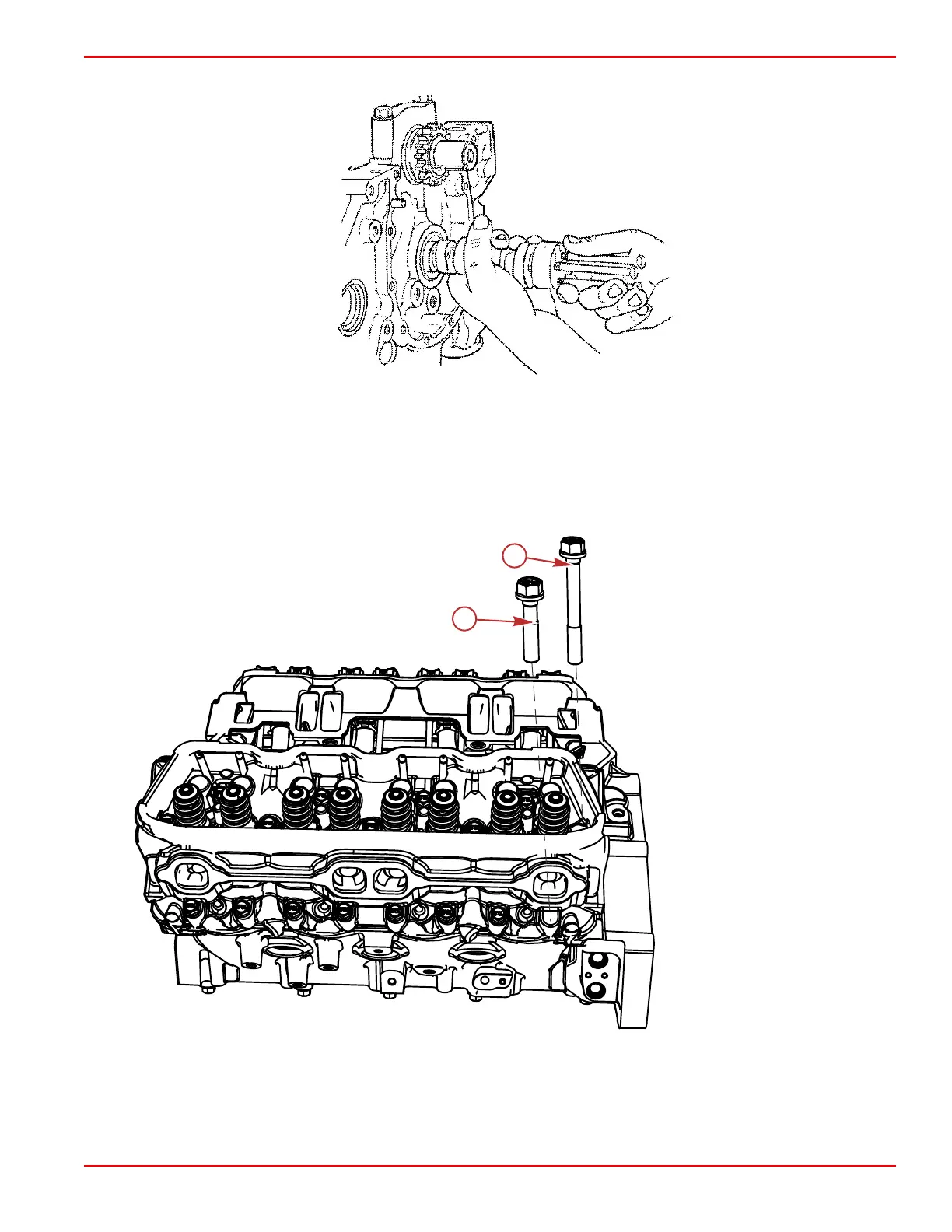

3. Carefully rotate and remove the camshaft as shown.
30155
Removing camshaft
Cylinder Head
Removal
1. Remove the spark plugs.
2. Remove the cylinder head bolts.
a - Short bolts (M10 x 1.5 x 49)
b - Long bolts (M10 x 1.5 x 86)
3. Remove the cylinder head.
4. Place the cylinder head on wooden blocks, a rubber mat, or other material that will prevent damage to the gasket surfaces.
5. Repeat this process for the second cylinder head.
59486
a
b
