Mercury MERCRUISER - 6.2 L MIE Exhaust Installation; Switchable Exhaust

Switchable Exhaust
59756

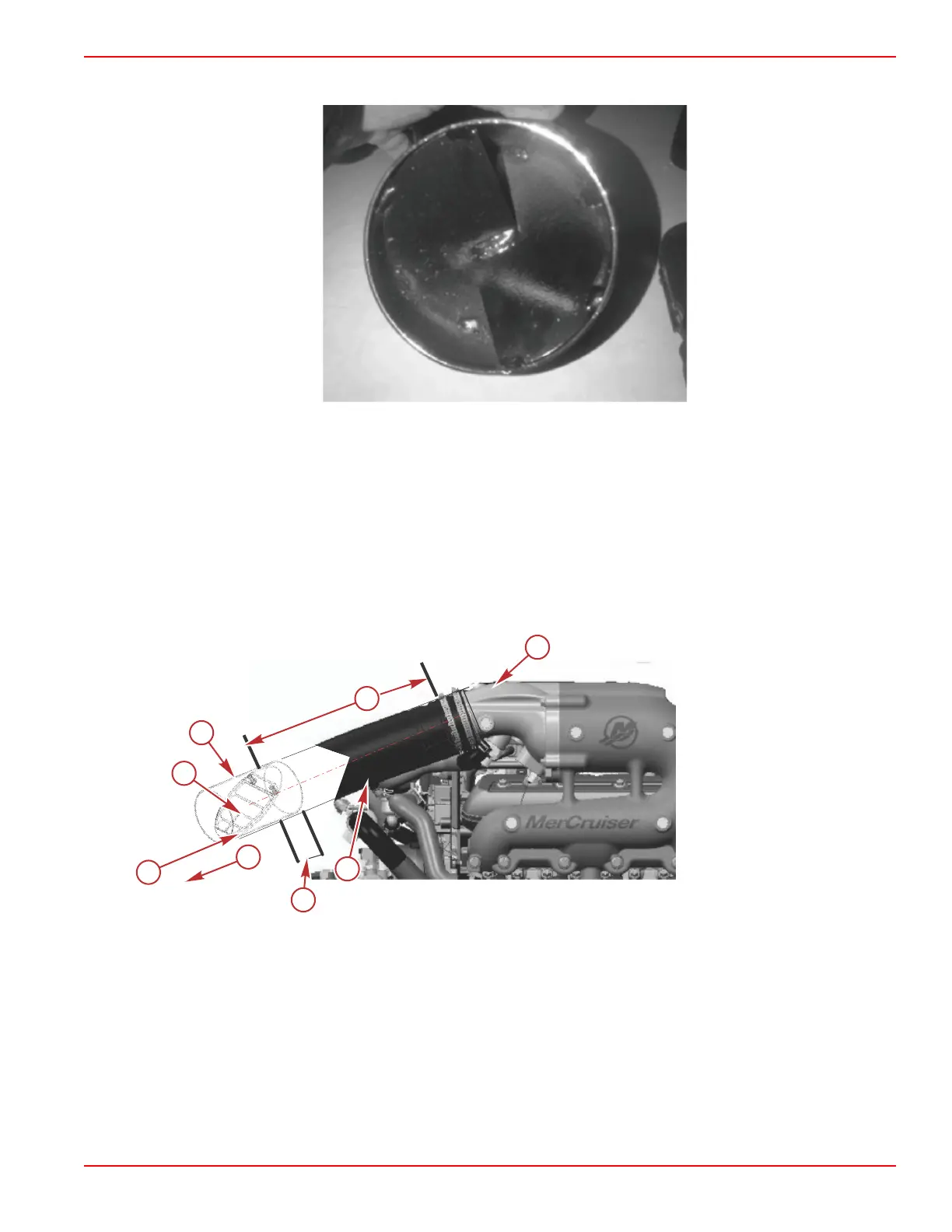

Corsa baffle
• If a switchable exhaust system is used, you must have a baffle in‑line, either in the tip or on the side outlet.
• 6.2L Corsa switchable exhaust baffles are included with the engine.
6.2L MIE Exhaust Installation
An exhaust shutter is required to help prevent water intrusion.
Exhaust Shutter Installation
1. Install the exhaust shutter in the exhaust hose with the open end toward the engine. Position the shutter assembly so that
the rubber shutter is facing down. Locate the shutter assembly no less than 66.04 cm (10 in.) after the elbow.
a - 25.4–66.04 cm (10–26 in.)
after elbow
b - Shutter assembly
c - Flow
d - Flapper down position
e - Elbow
f - Outlet
g - Hose
h - Minimum amount shutter
assembly inserted into
hose 50.8 mm (2 in.)
IMPORTANT: The shutter should be inserted in the hose a minimum 50.8 mm (2 in.).
a
b
c
d
f
e
g
a
59018
h
Exhaust Pipe and Through-the-Propeller Exhaust
90-8M0099748 eng DECEMBER 2015 © 2016 Mercury Marine Page 7C-5
