Mercury MERCRUISER - Crankshaft, Main Bearings, and Engine Block; Exploded View; Removal

Crankshaft, Main Bearings, and Engine Block

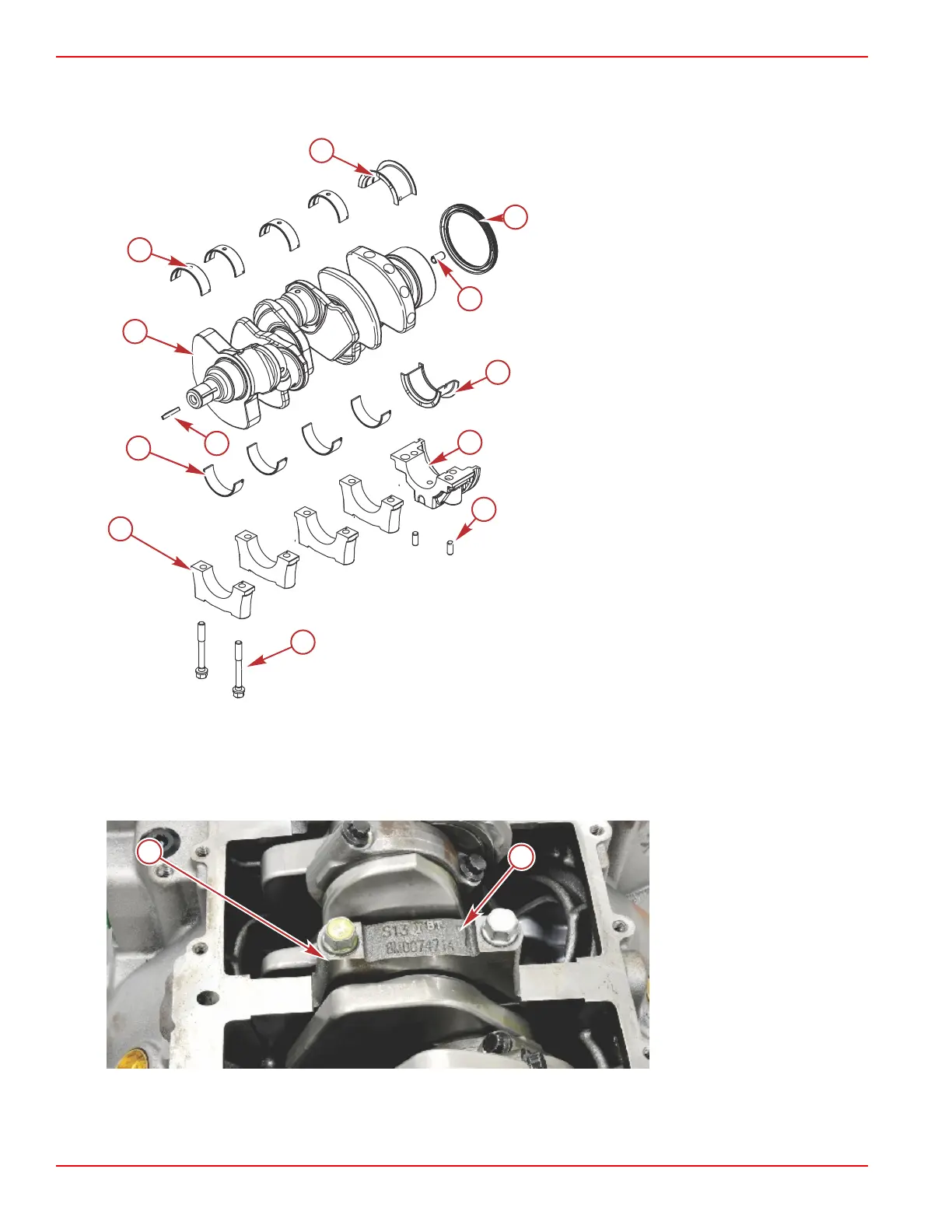

Exploded View
a - Main bearing cap
b - Main bearings upper
c - Crankshaft
d - Main bearings lower
e - Lower thrust bearing
f - Oil seal
g - Crankshaft dowel
h - Crankshaft key
i - Upper thrust bearing
j - Rear bearing cap
k - Dowel rear bearing cap
l - Main bearing bolts
Removal
If only the main bearings are being serviced, refer to Section 3B ‑ Main Bearings without Crankshaft Removed.
NOTE: Engine port and starboard cylinder heads are removed for illustration clarity.
1. Ensure that all bearing caps are marked so that they can be installed in their original locations.
a - Main bearing cap
b - Bearing cap marks
a
b
c
d
e
f
g
h
i
j
k
l
59488
a
b
55071
