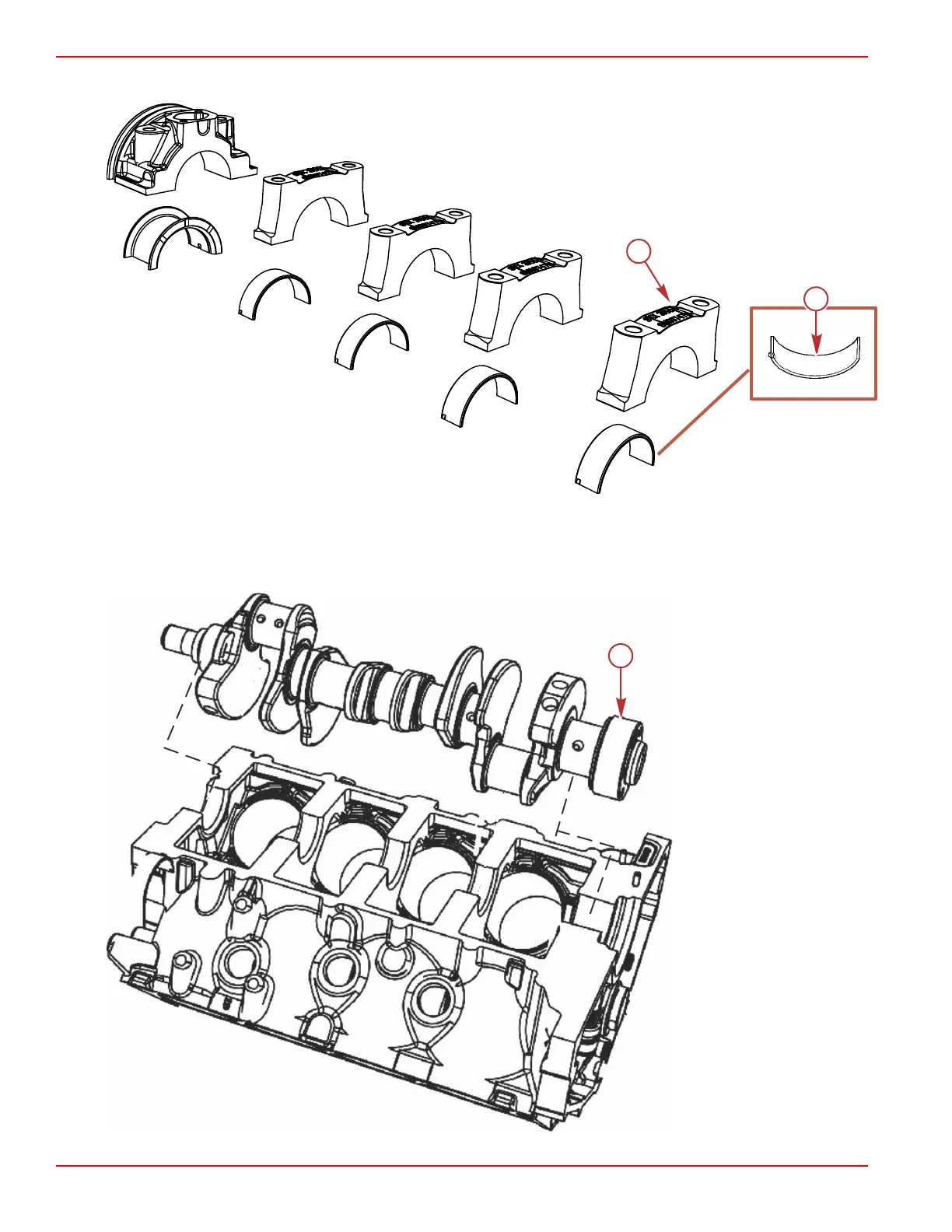

4. Install the lower main bearing insert into the main bearing caps.

a - Lower insert

b - Main bearing cap

5. Carefully lower the crankshaft into place. Be careful not to damage the bearing surfaces.

a - Crankshaft

59544

59493

Engine Inspection and Assembly
