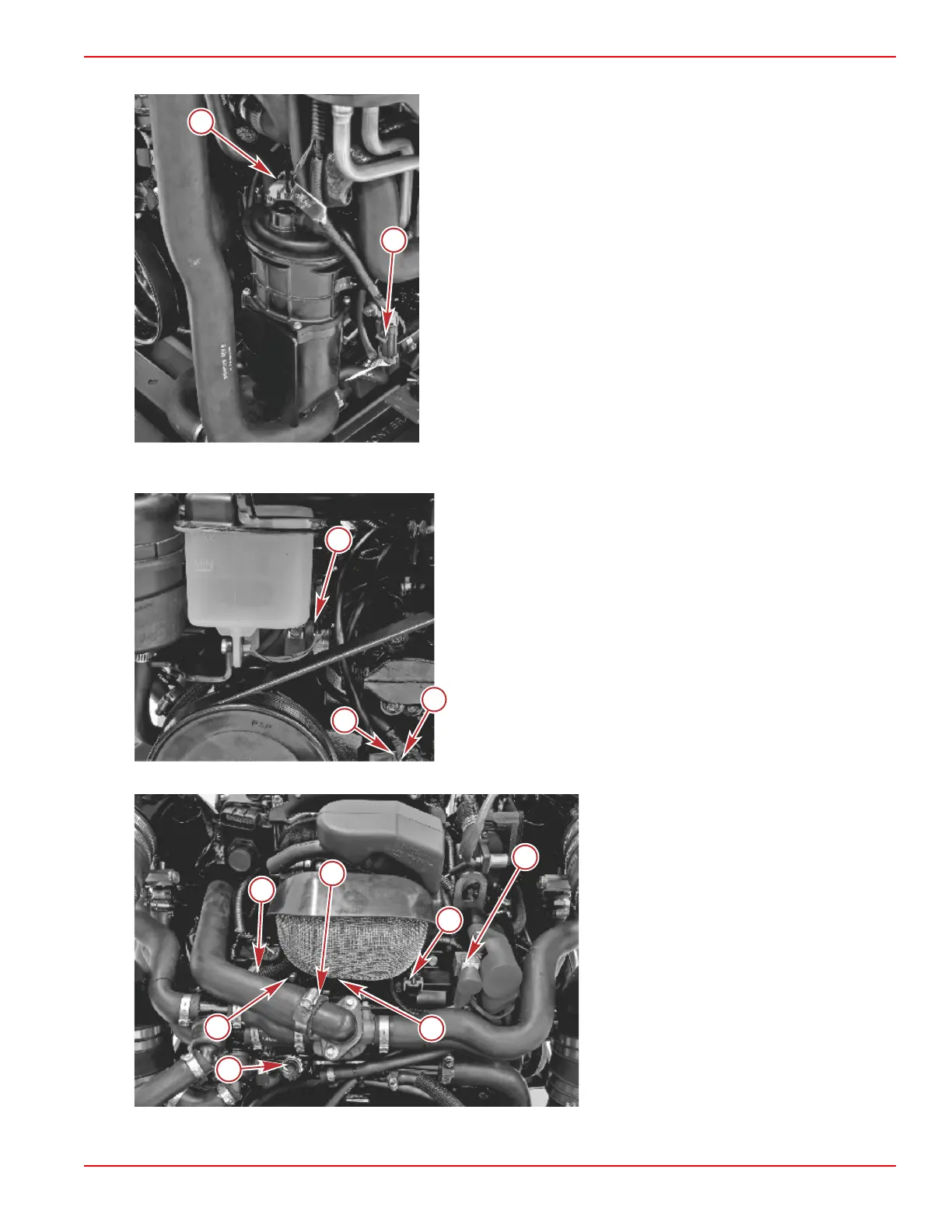

5. Remove the coolant sensor connector and the fuel pump connector.
a - Coolant sensor connector
b - Fuel pump connector
6. Disconnect the drive lube connector, ground harness, crank sensor connector, and J‑clip.
a - Drive lube connector
b - Ground harness
c - Crank sensor connector
a - Fused connector
b - Coils
c - Throttle body
d - Temperature sensor
e - Oil pressure sensor
f - Ground stud
7. Remove the fused connector.
a
b
59364
a
b
c
59365
a
b
b
e
c
f
d
59367
Engine Wiring Harness
