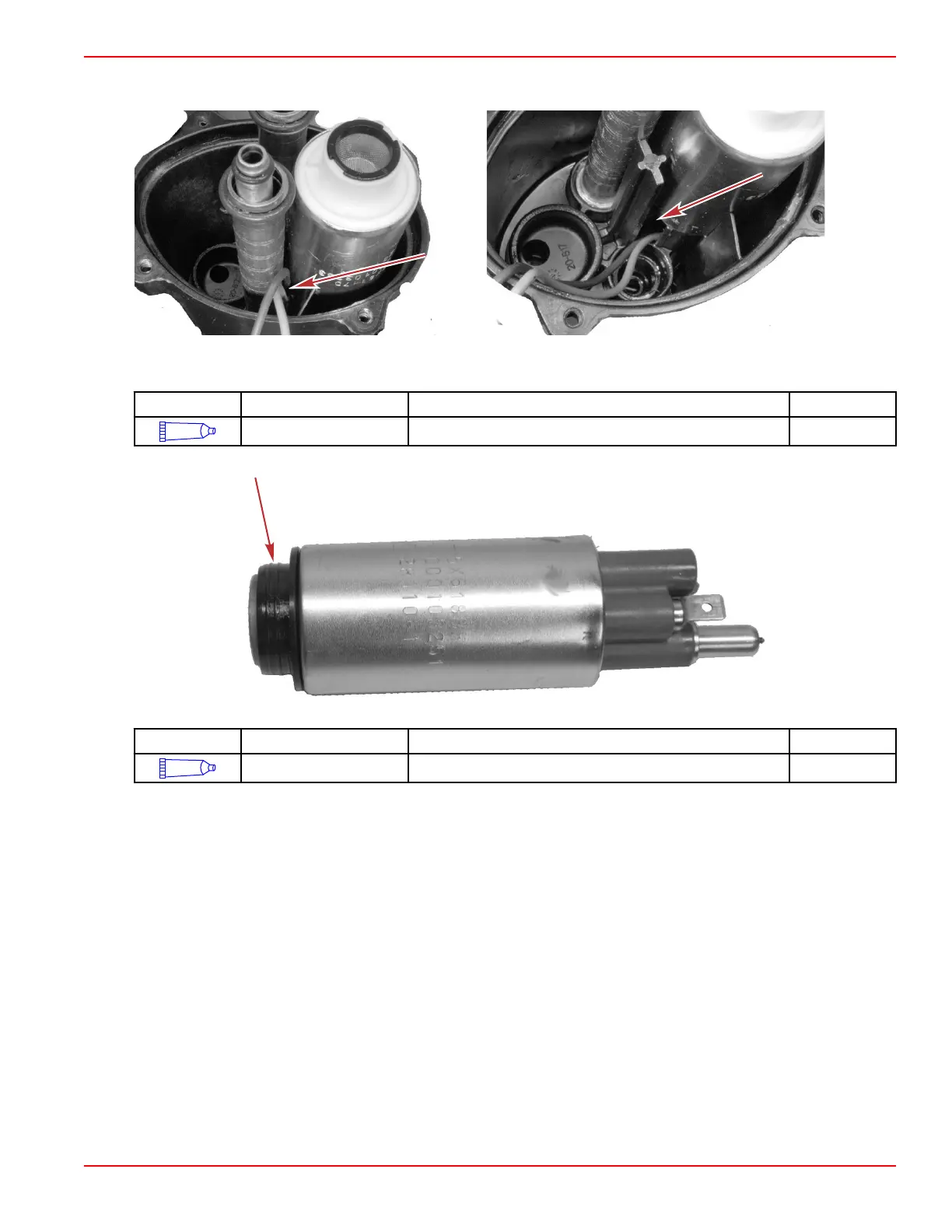

6. Lubricate the seal grommet with 2‑4‑C with PTFE and install the high‑pressure fuel pump into the lower housing so the
wires are between the webbing and the water tube.
Wires between webbing Close up view without tube installed
Tube Ref No. Description Where Used Part No.
95
2-4-C with PTFE Seal grommet 92-802859A 1
7. Install the seal grommet onto the fuel lift pump and lubricate with 2‑4‑C with PTFE.
Tube Ref No.
Description Where Used Part No.
95
2-4-C with PTFE Seal grommet 92-802859A 1
8. Install the fuel lift pump into the lower housing so the outlet port of the pump faces towards the center of the FSM.
9. Install the seal grommet halfway onto the outlet port of the fuel lift pump.
10. Install the seal grommet onto the high‑pressure fuel pump.
