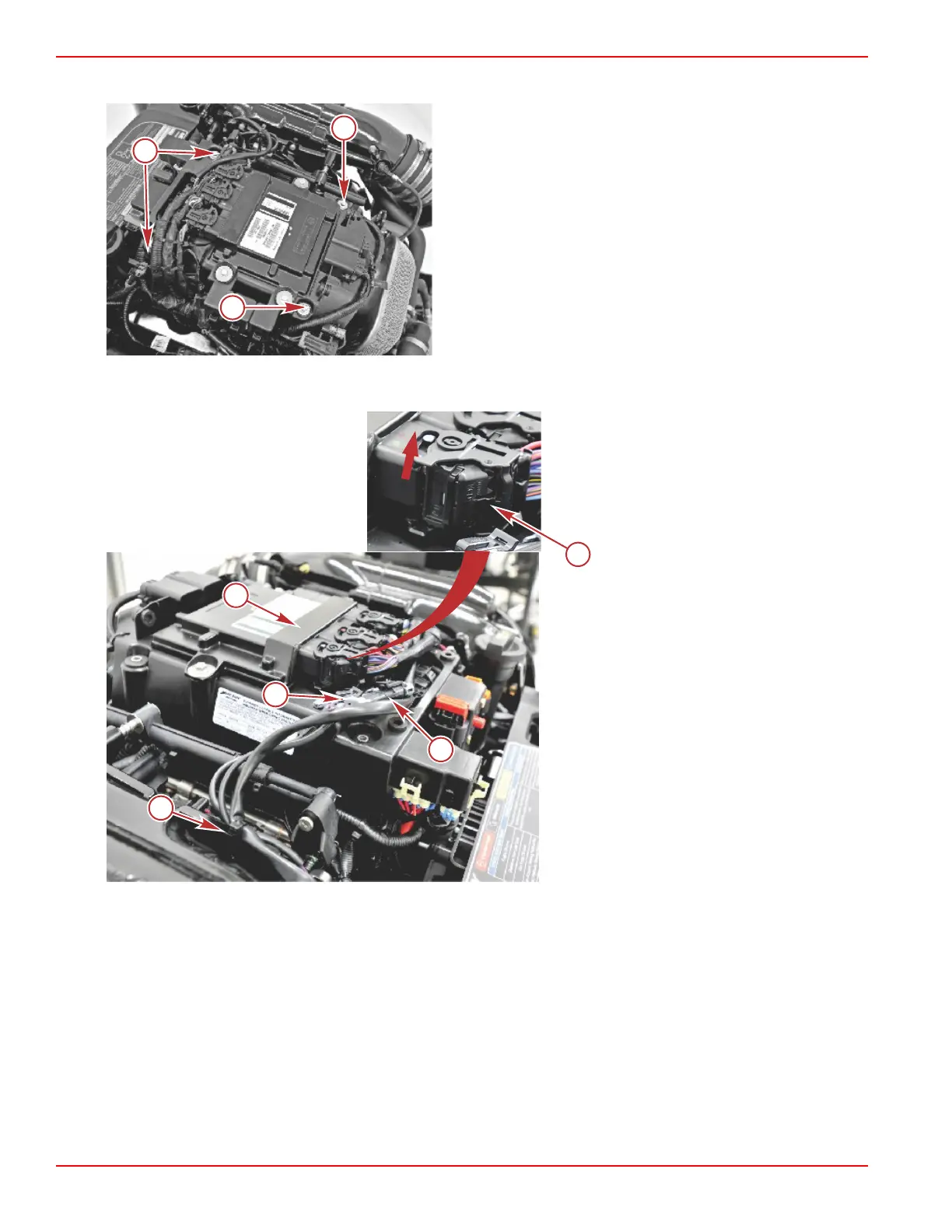

a. Remove the four mounting screws, holding the PCM relay bracket to the manifold.
a - Mounting screws
b. Disconnect the three PCM connectors. To release the connector, push the locking tab and rotate the lock as shown.
a - Locking tab
b - ECM
c - Shift anticipate connector (not used
6.2L)
d - Neutral switch connector
e - Demand sensor harness
c. Disconnect the neutral switch connector, and the demand sensor harness.
MPI ECT Fuel System
Page 5A-24 © 2016 Mercury Marine 90-8M0099748 eng DECEMBER 2015
