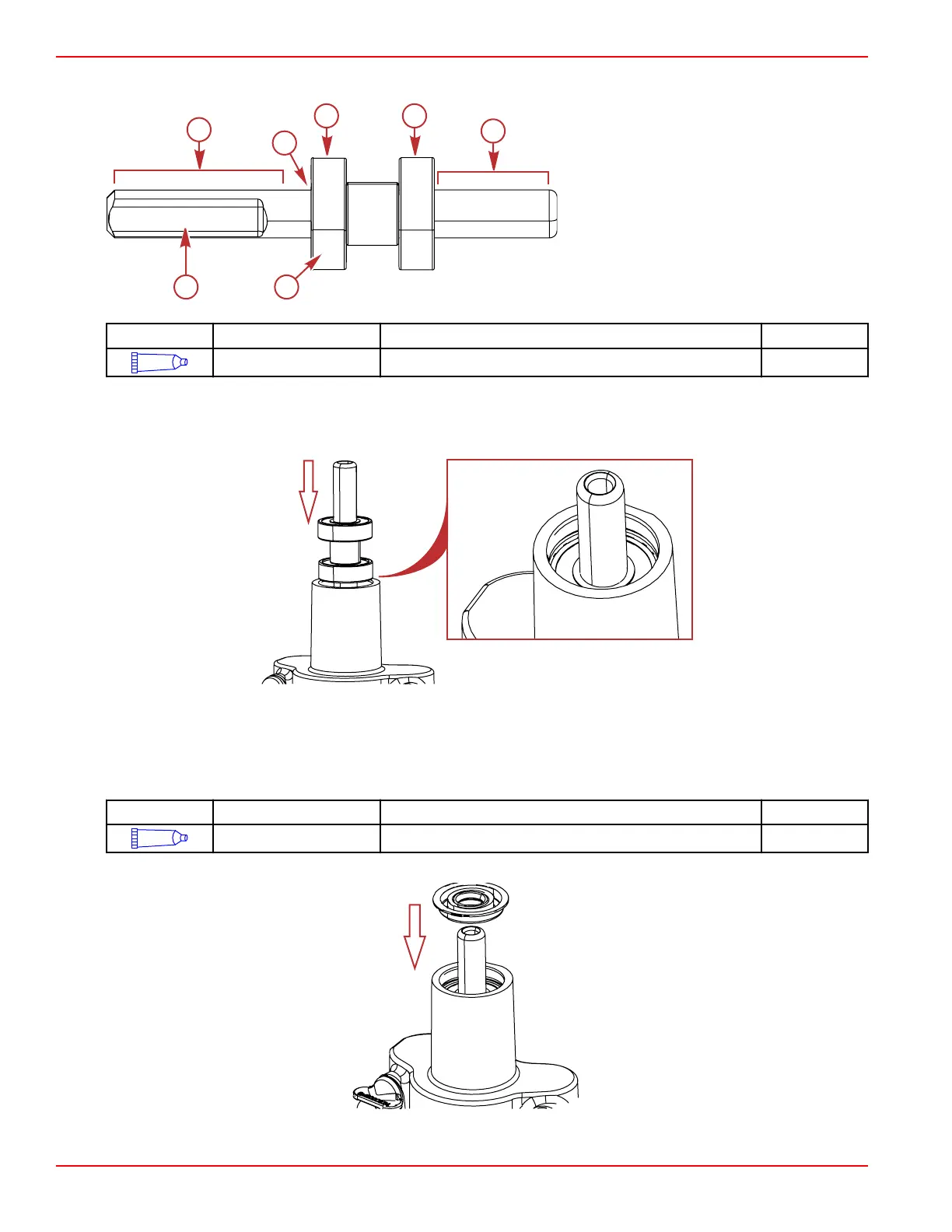

4. Lubricate the bearing shaft and the outer diameter of the bearings with clean engine oil.
a - Lubricate bearing shaft with clean engine
oil
b - Lubricate with 2‑4‑C with PTFE
c - Lubricate outer diameter of bearings with
clean engine oil
d - Rear bearing
e - Flat surface
Tube Ref No. Description Where Used Part No.
95
2-4-C with PTFE Bearing shaft next to the rear shaft bearing 92-802859A 1
IMPORTANT: The bearing shaft assembly should slip easily into the bearing housing using only minimal force.
5. Install the bearing shaft assembly into the impeller housing. The end of the shaft with flat surfaces should extend into the
impeller cavity. Clean any assembly lube or oil from the forward end of the impeller housing.
Bearing shaft assembly
6. Insert the snap ring into the snap ring groove in the impeller housing.
7. Apply Loctite 609 to the outer diameter of the lip seal. Do not allow adhesive to contact the seal portion or the bearing shaft
assembly.
Tube Ref No.
Description Where Used Part No.
68
Loctite 609 Outer diameter of the lip seal Obtain Locally
8. Install the lip seal onto the bearing shaft assembly and slide it down until it contacts the end of the impeller housing.
Lip seal
All Models
Page 6A-8 © 2016 Mercury Marine 90-8M0099748 eng DECEMBER 2015
