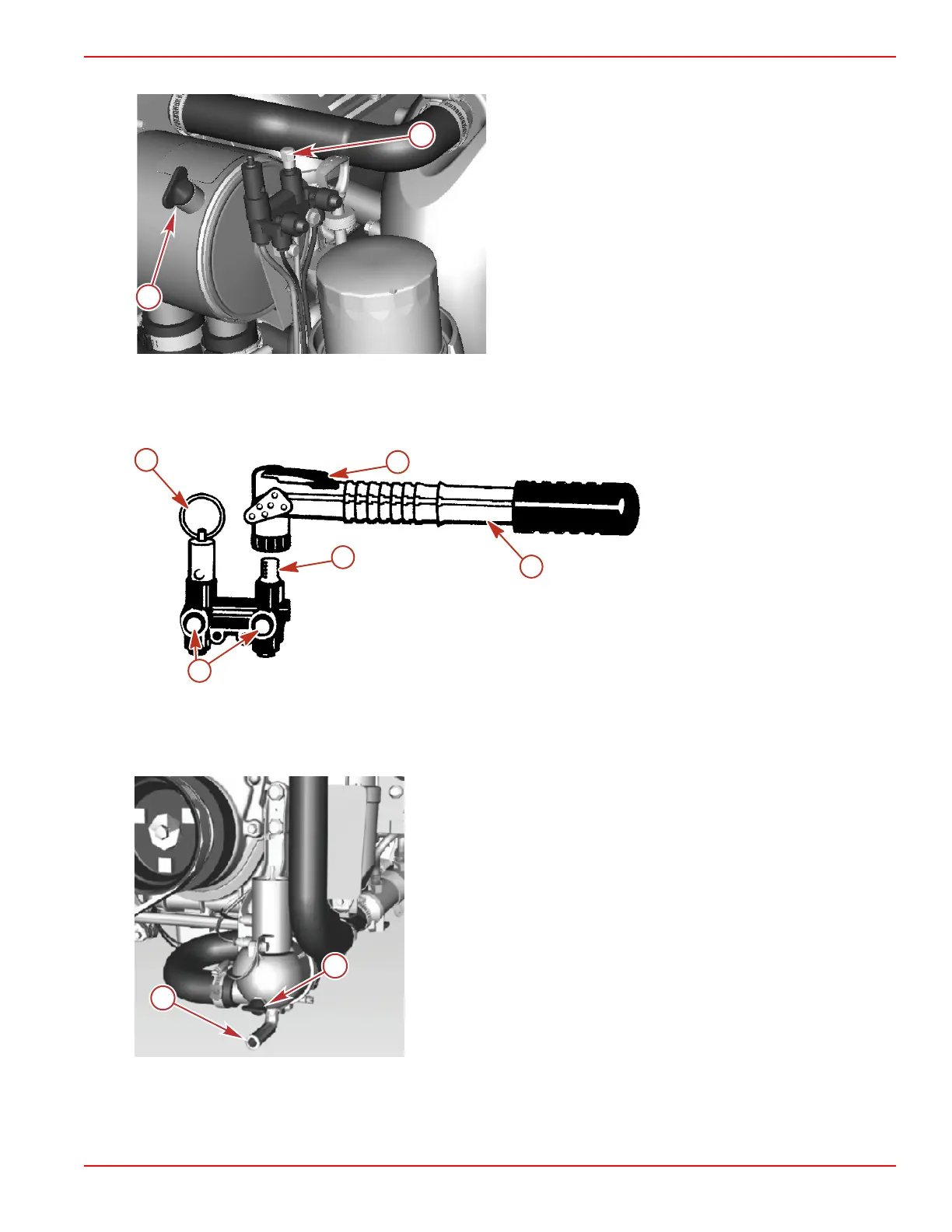

3. Remove the cap from the air actuated valve assembly.
a - Blue plug
b - Cap
4. Ensure that the lever on top of the air pump is flush with the handle (horizontal).
5. Install the air pump on the actuator fitting.
6. Pull the lever on the air pump (vertical) to lock the pump onto the fitting.
a - Actuator fitting
b - Green indicators
c - Manual release valve
d - Air pump
e - Lever (locking)
7. Pump air into the system until both green indicators extend out of the actuator assembly.
8. Check to ensure water drains out of the distribution housing.
IMPORTANT: If water does not drain from the distribution housing when both green indicators are extended, remove the
blue plug on the distribution housing.
a - Distribution housing water drain
b - Blue plug
9. Check to ensure water drains out of the seawater pump housing.
8293
b
d
e
a
c
Maintenance
90-8M0099748 eng DECEMBER 2015 © 2016 Mercury Marine Page 1C-31
