MI 3102(H) BT EurotestXE Instrument description
14
3 Instrument description

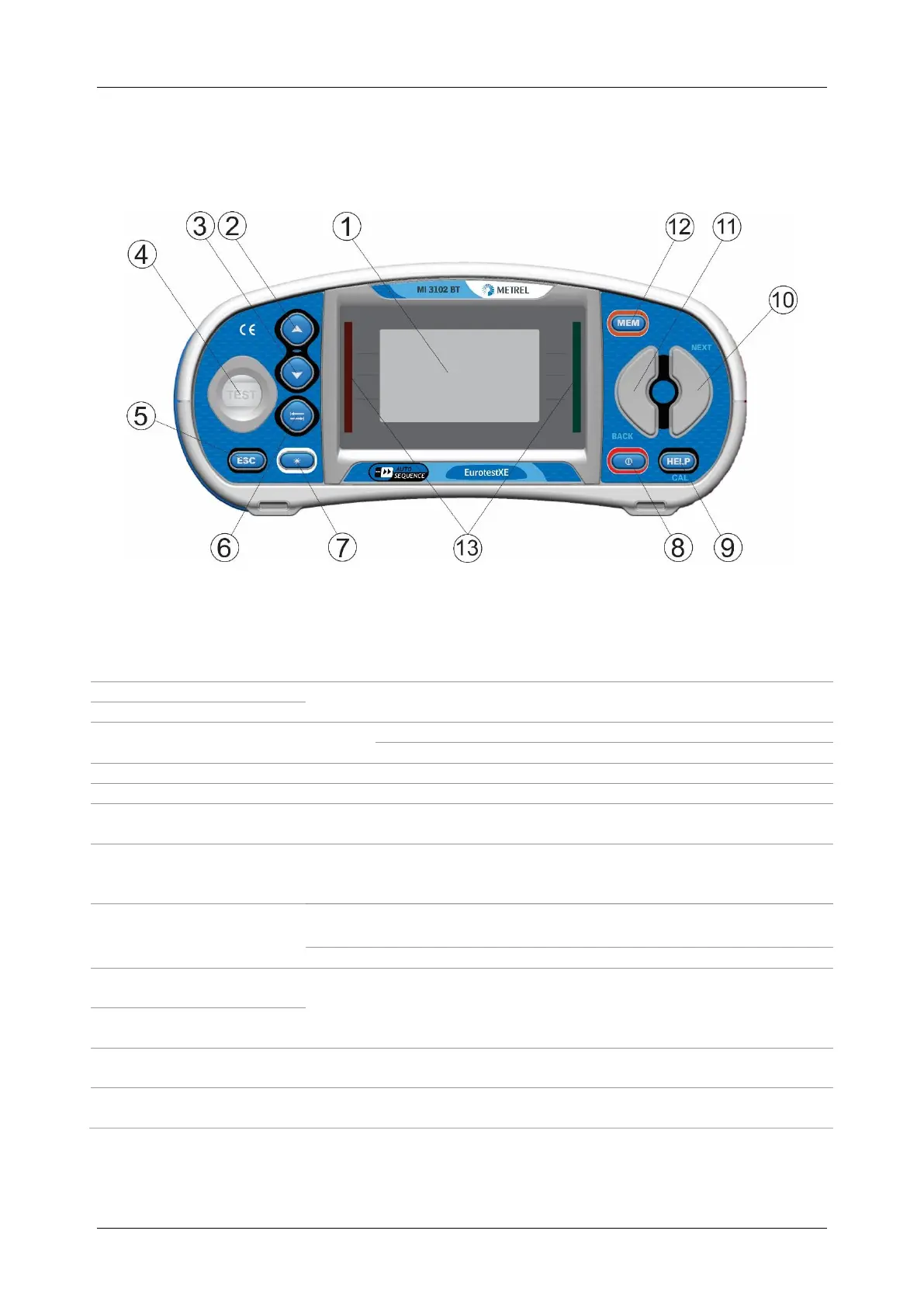

3.1 Front panel
Figure 3.1: Front panel
Legend:
1
LCD
128 x 64 dots matrix display with backlight.
2
UP
Modifies selected parameter.
3
DOWN
4
TEST
TEST
Starts measurements.
Acts also as the PE touching electrode.
5
ESC
Goes one level back.
6
TAB
Selects the parameters in selected function.
7
Backlight
Contrast
Changes backlight level and contrast.
8
ON / OFF
Switches the instrument power on or off.
The instrument automatically turns off 15 minutes after the last key
was pressed.
9
HELP / CAL
Accesses help menus.
Calibrates test leads in Continuity functions.
Starts Z
REF
measurement in Voltage drop sub-function.
10
Function selector
- RIGHT
Selects test / measurement function.
11
Function selector
- LEFT
12
MEM
Stores / recalls memory of instrument.
Stores clamp settings.
13
Green LEDs
Red LEDs
Indicates PASS / FAIL of result.
