MI 3102(H) BT EurotestXE Instrument operation

4.1.6 Help screens

HELP

Opens help screen.

Help menus are available in all functions. The Help menu contains schematic diagrams for

illustrating how to properly connect the instrument to electric installation. After selecting the

measurement you want to perform, press the HELP key in order to view the associated Help

menu.

Keys in help menu:

UP / DOWN

Selects next / previous help screen.

ESC / HELP / Function selector

Exits help menu.

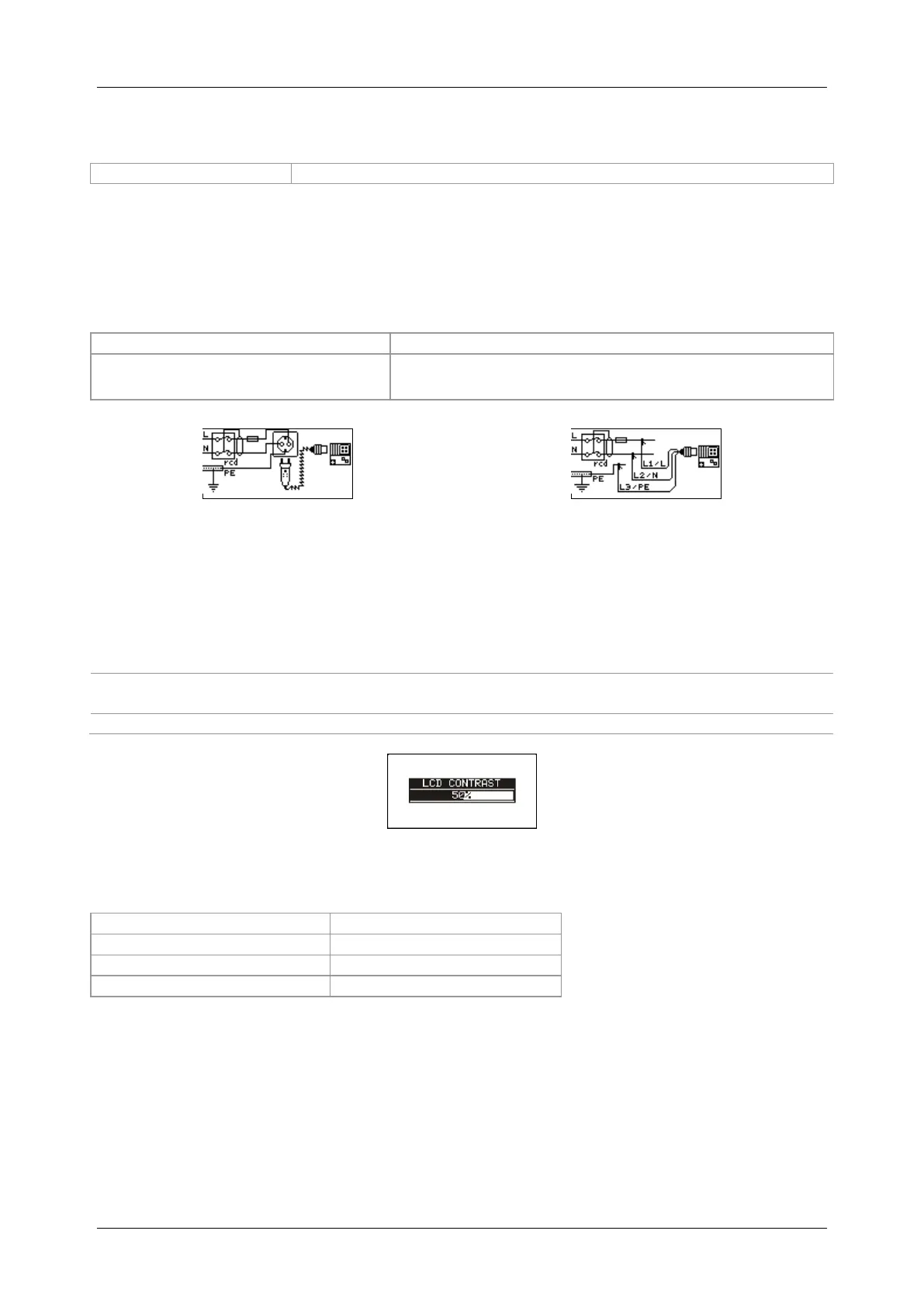

Figure 4.1: Examples of help screens

4.1.7 Backlight and contrast adjustments

With the BACKLIGHT key backlight and contrast can be adjusted.

Click

Toggles backlight intensity level.

Keep pressed for 1 s

Locks high intensity backlight level until power is turned off or the key

is pressed again.

Keep pressed for 2 s

Bar graph for LCD contrast adjustment is displayed.

Figure 4.2: Contrast adjustment menu

Keys for contrast adjustment:

DOWN

Reduces contrast.

Increases contrast.

TEST

Accepts new contrast.

ESC

Exits without changes.

METREL EurotestXE User Manual
