5.4.2 Continuous resistance measurement with low current
In general, this function serves as standard -meter with a low testing current. The
measurement is performed continuously without polarity reversal. The function can also be
applied for testing continuity of inductive components.
Test circuit for continuous resistance measurement

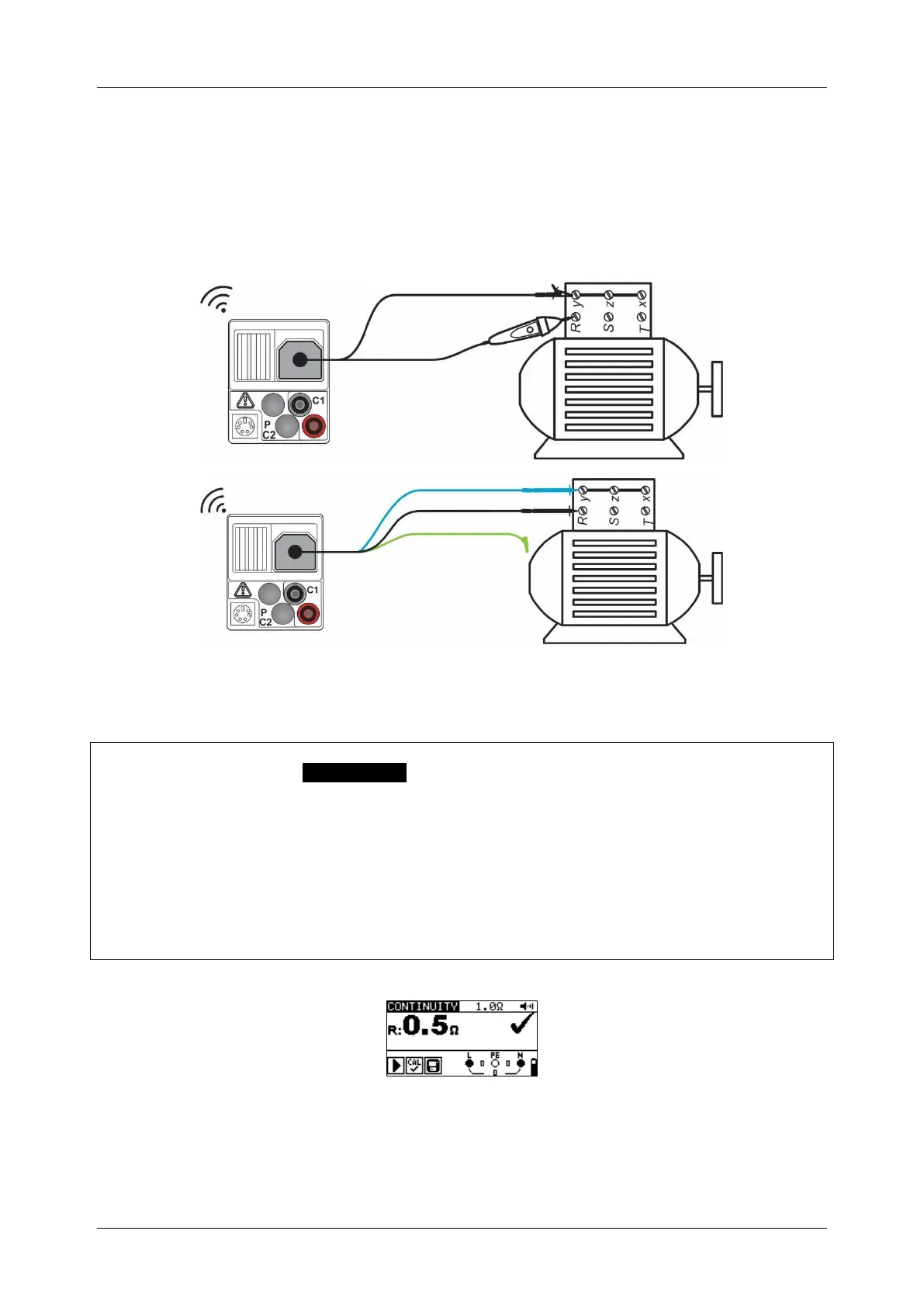

Figure 5.14: Tip commander and 3-wire test lead applications
Continuous resistance measurement procedure
 Select continuity function using the function selector keys.
 Set sub-function to CONTINUITY using UP / DOWN keys.
 Enable and set the limit (optional).
 Connect test cable to the instrument.
 Compensate test leads resistance if necessary, (see section 5.4.3 Compensation of test
leads resistance).
 Disconnect from mains supply and discharge the object to be tested.
 Connect test leads to the tested object (see Figure 5.14).
 Press the TEST key to begin performing a continuous measurement.
 Press the TEST key to stop measurement.
 After the measurement is finished store the result by pressing the MEM key (optional).
Figure 5.15: Example of continuous resistance measurement
Displayed result:
R .............. resistance
