METREL EurotestXE User Manual

MI 3102(H) BT EurotestXE Measurements
35
5.2 Insulation resistance
The insulation resistance measurement is performed in order to ensure safety against electric
shock through insulation. Typical applications are:
 insulation resistance between conductors of installation,
 insulation resistance of non-conductive rooms (walls and floors),
 insulation resistance of ground cables and
 resistance of semi-conductive (antistatic) floors.
See chapter 4.2 Function selection for instructions on
key functionality.

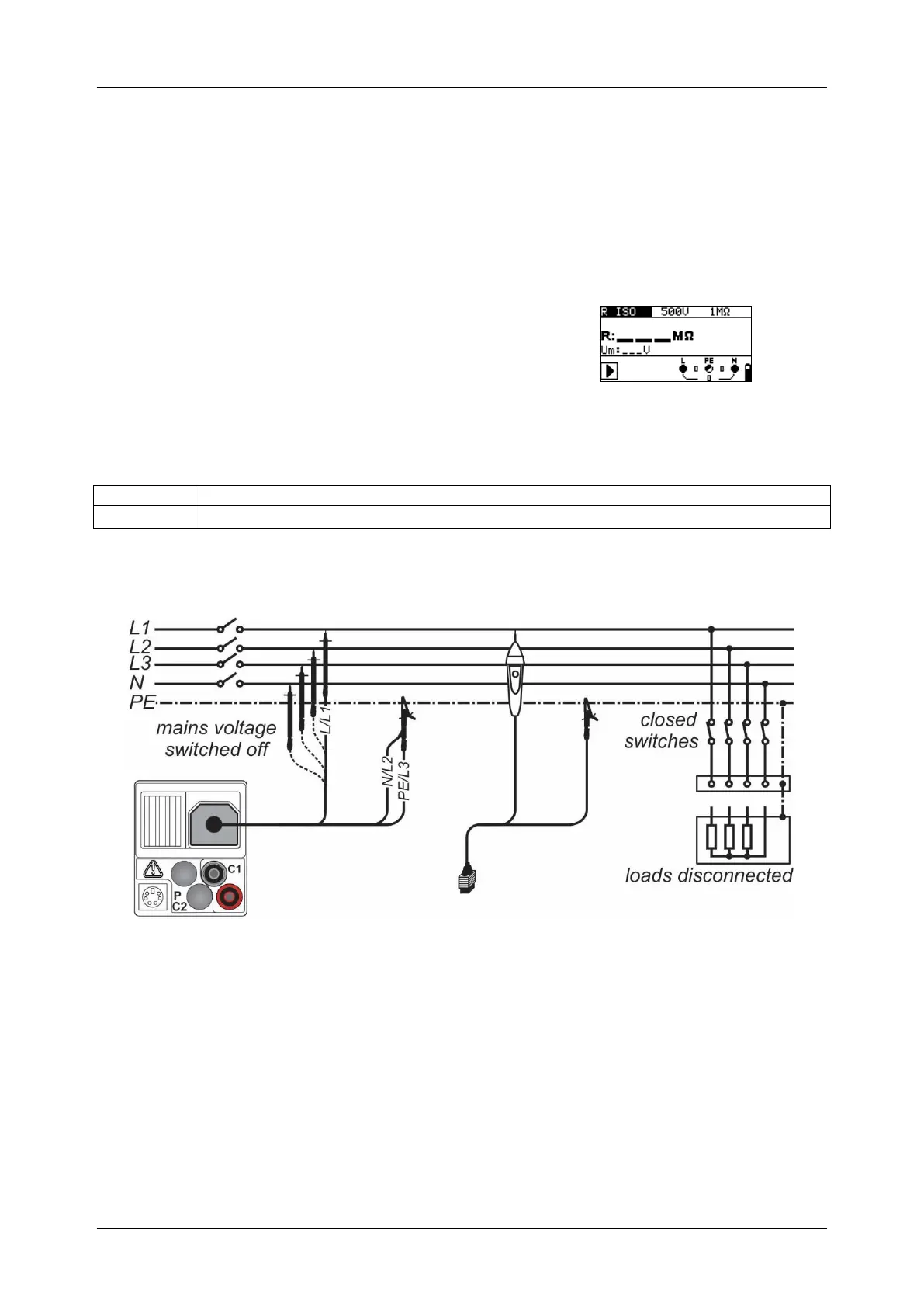

Figure 5.5: Insulation resistance
Test parameters for insulation resistance measurement
Uiso
Nominal test voltage [50 V, 100 V, 250 V, 500 V, 1000 V, 2500 V*]
Limit
Minimum insulation resistance [OFF, 0.01 M ÷ 200 M]
* Nominal test voltage 2500 V is available on MI 3102H BT only.
Test circuits for insulation resistance
Figure 5.6: Connection of 3-wire test lead and tip commander (U
N
≤ 1 kV)
