7.5.3 Clearing individual measurements
Select DELETE RESULTS in MEMORY menu.

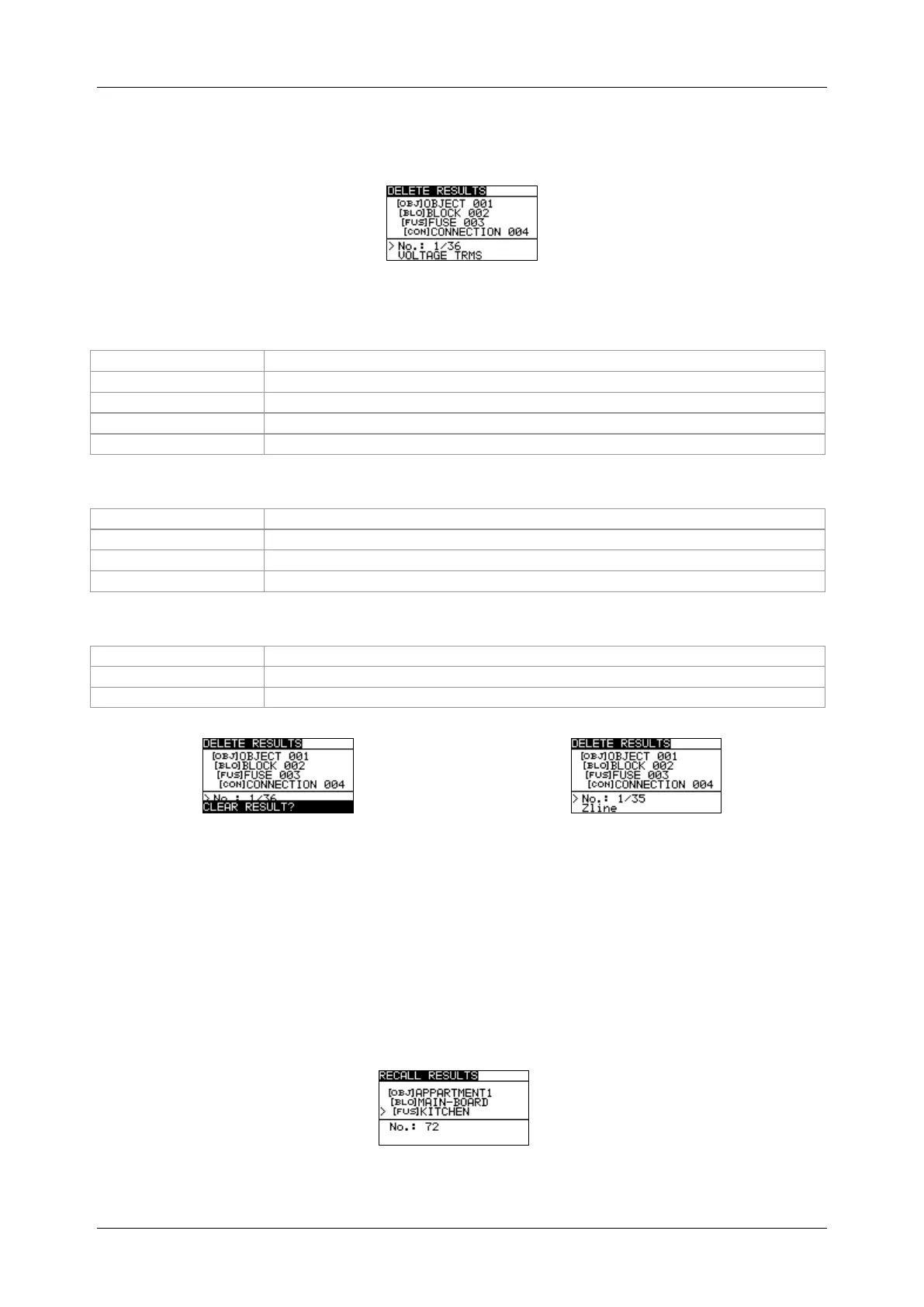

Figure 7.9: Menu for clearing individual measurement (installation structure field selected)
Keys in delete results menu (installation structure field selected):
Selects the location element (Object / Block / Fuse / Connection).
Selects number of selected location element (1 to 199)
Exits back to main function menu.
Exits back to memory menu.
Enters measurements field for deleting individual measurements.
Keys in delete results menu (measurements field selected):
Opens dialog box for confirmation to clear selected measurement.
Returns to installation structure field.
Exits back to main function menu without changes.
Keys in dialog for confirmation to clear selected result(s):
Deletes selected measurement result.
Exits back to measurements field without changes.
Exits back to main function menu without changes.
Figure 7.10: Dialog for confirmation
Figure 7.11: Display after measurement was
cleared
7.5.4 Renaming installation structure elements (upload from PC)
Default installation structure elements are »Object«, »Block«, »Fuse« and »Connection«.
In the PCSW package Eurolink-PRO default names can be changed with customized names
that corresponds the installation under test. Refer to PCSW Eurolink-PRO HELP for information
how to upload customized installation names to the instrument.
Figure 7.12: Example of menu with customized installation structure names
