METREL EurotestXE User Manual

MI 3102(H) BT EurotestXE Instrument description
15
3.2 Connector panel

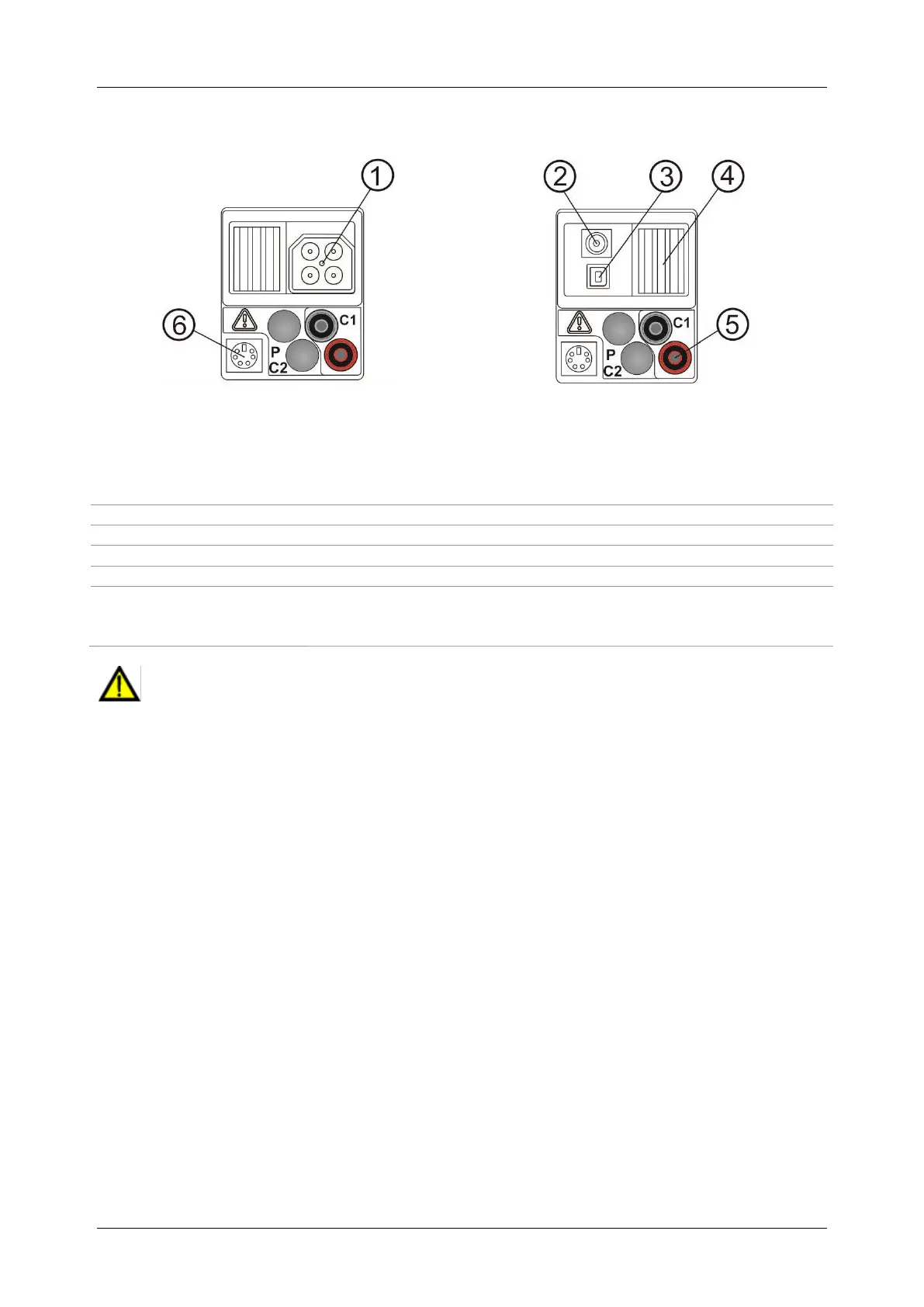

Figure 3.2: Connector panel
Legend:
1
Test connector
Measuring inputs / outputs.
2
Charger socket
3
USB connector
Communication with PC USB (1.1) port.
4
Protection cover
5
C1
Current clamp measuring input
6
PS/2 connector
Communication with PC serial port
Connection to optional measuring adapters
Connection to barcode / RFID reader
Warnings!
 Maximum allowed voltage between any test terminal and ground is 600 V!
 Maximum allowed voltage between test terminals on test connector is 600 V!
 Maximum allowed voltage on test terminal C1 is 3 V!
 Maximum short-term voltage of external power supply adapter is 14 V!
