FUSE: Default location name (fuse and its successive number).
003: No. of selected element.
4
th
level:
CONNECTION: Default location name (connection and its
successive number).
004: No. of selected element.
No. of measurements in selected location
[No. of measurements in selected location and its sub-locations]
Measurement field
Type of stored measurement in the selected location.
No. of selected test result / No. of all stored test results in
selected location.
7.3 Storing test results
After the completion of a test the results and parameters are ready for storing ( icon is
displayed in the information field). By pressing the MEM key, the user can store the results.

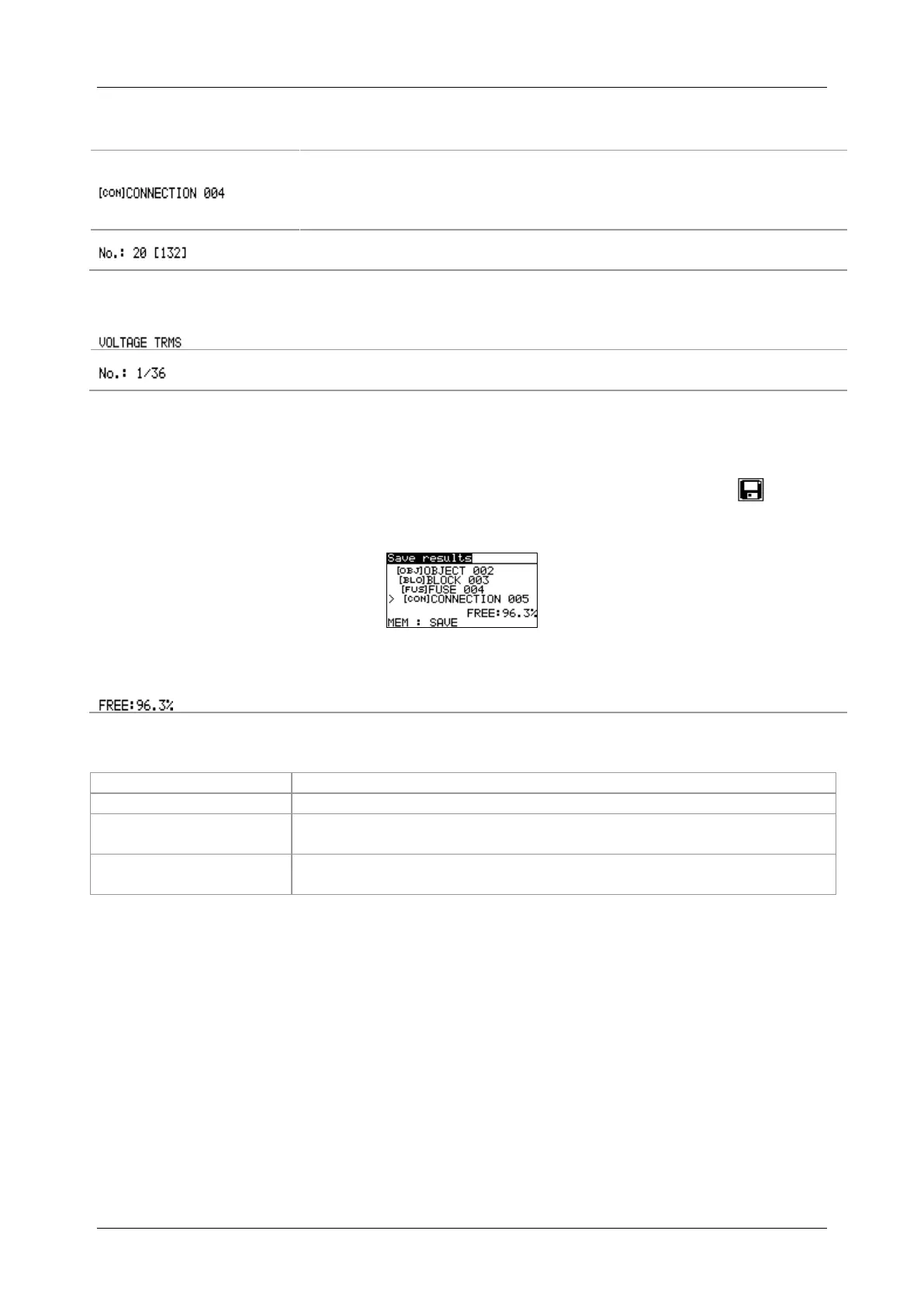

Figure 7.2: Save test menu
Memory available for storing results.
Keys in save test menu - data structure field
Selects the location element (Object / Block / Fuse / Connection)
Selects number of selected location element (1 to 199)
Saves test results to the selected location and returns to the
measuring function.
ESC / TEST / Function
selector
Exits back to measuring function without saving.
Notes:
The instrument offers to store the result to the last selected location by default.
If the measurement is to be stored to the same location as the previous one just press
the MEM key twice.
