MICRO-EPSILON thermoMETER CT Series User Manual

Page 30
Mechanical Installation
thermoMETER CT
6. Mechanical Installation
The thermoMETER CT sensors are equipped with a metrical M12x1-thread and can be installed either directly via the sen-
sor thread or by means of the hex nut (included in scope of supply) to the mounting bracket available. Various mounting
brackets which make the adjustment of the sensor easier can be ordered additionally as accessories.
The thermoMETER CTH and CTP sensors are delivered with massive housing and can be installed via the M18x1-thread,
see Fig. 4.
i
All accessories can be ordered using the according part numbers in brackets [ ].
10
(.39)
M12x1
max. 3 (.12)
2.8 (.11)
28 (1.1)
WS 14
Ø14
(.55 dia.)
Ø10 (.39 dia.)
32
(1.26)
M12x1
max. 3 (.12)
Ø14
(.55 dia.)
Ø10
(.39 dia.)
Ø2.8 (.11 dia.)
WS 14
10
(.39)

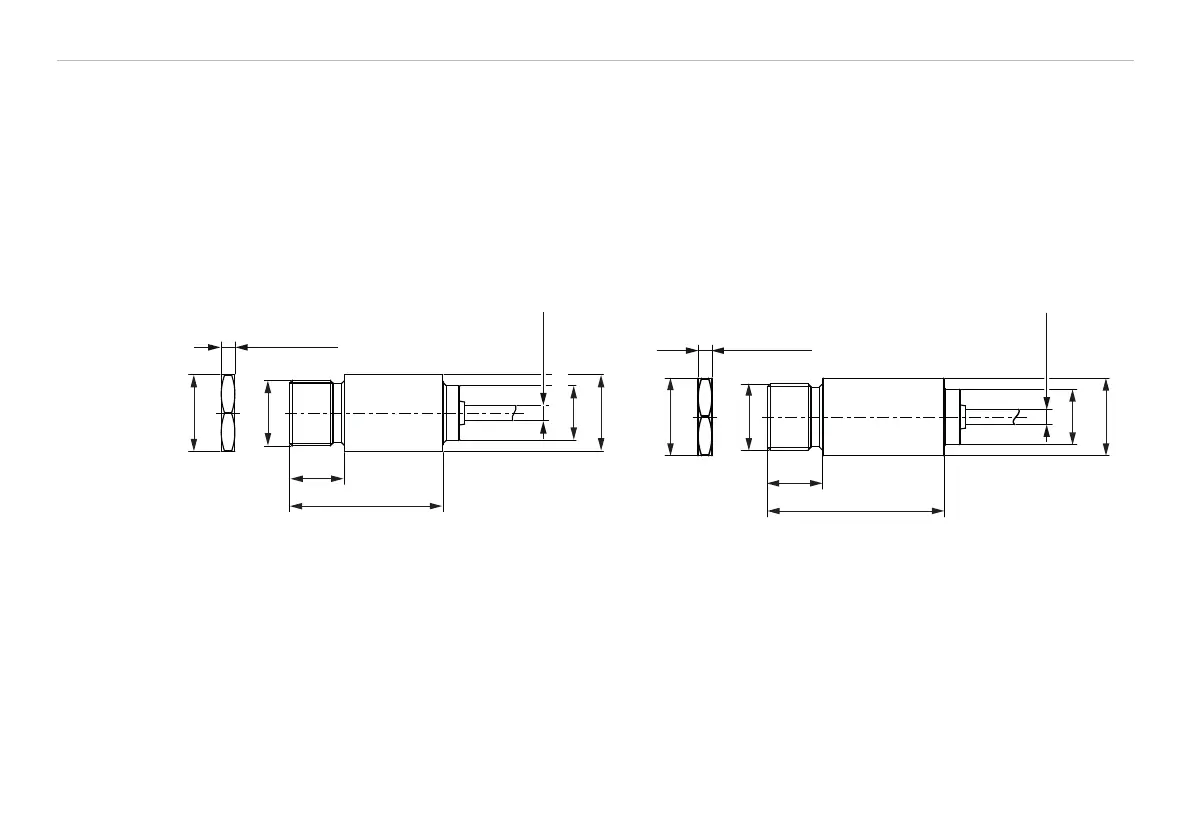

Fig. 2 Dimensional drawing sensor, dimensions in mm
(inches), not to scale
Fig. 3 Dimensional drawing sensor with integrated CF lens,
dimensions in mm (inches), not to scale
