Page 98
Appendix | Accessories
thermoMETER CT
A 1.4.5 OEM Laser Sighting Tool
The OEM laser sighting tool is available with 3.5 m [TM-LSTOEM-CT] and 8 m connection cable [TM-LSTO-
EM-CT (008)]. The laser can be connected to the pins 3V SW and GND, see Chap. 6. and switched on and
off via the programming keys or via the CompactConnect software.
The special double-hole mounting bracket [TM-FB2-CT] allows a simultaneous mounting of the CT sensor
and the laser head.

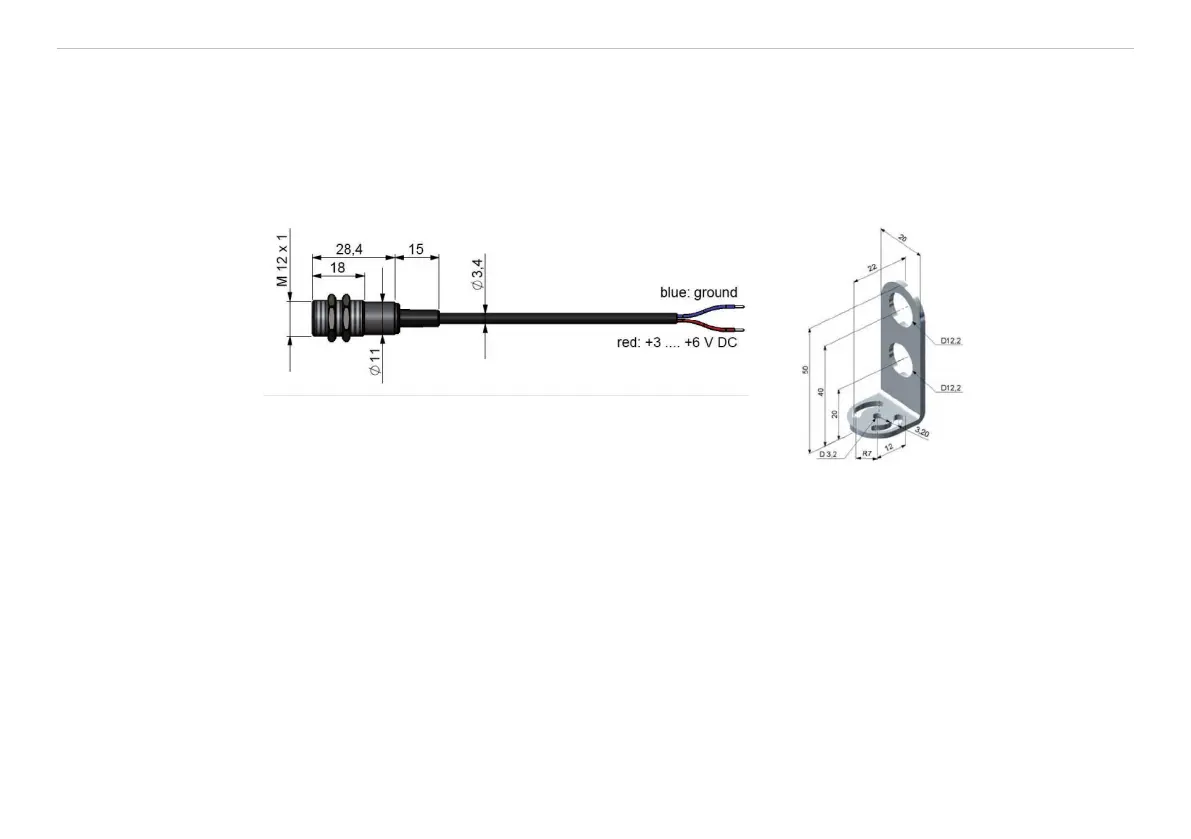

Fig. 48 OEM laser sighting tool [TM-LSTOEM-CT] Fig. 49 Double-hole mounting bracket
[TM-FB2-CT]
