MICRO-EPSILON thermoMETER CT Series User Manual

Page 90
Appendix | Accessories
thermoMETER CT
A 1.2.2 Laminar Air Purge Collar
The sideward air outlet TM-APL-CT prevents a cool-
ing down of the object in short distances.
A combination of the laminar air purge collar with
the bottom section of the mounting fork TM-MG-CT
allows an adjustment in two axes.
Hose connection: 3 x 5 mm
Thread (fitting): M5

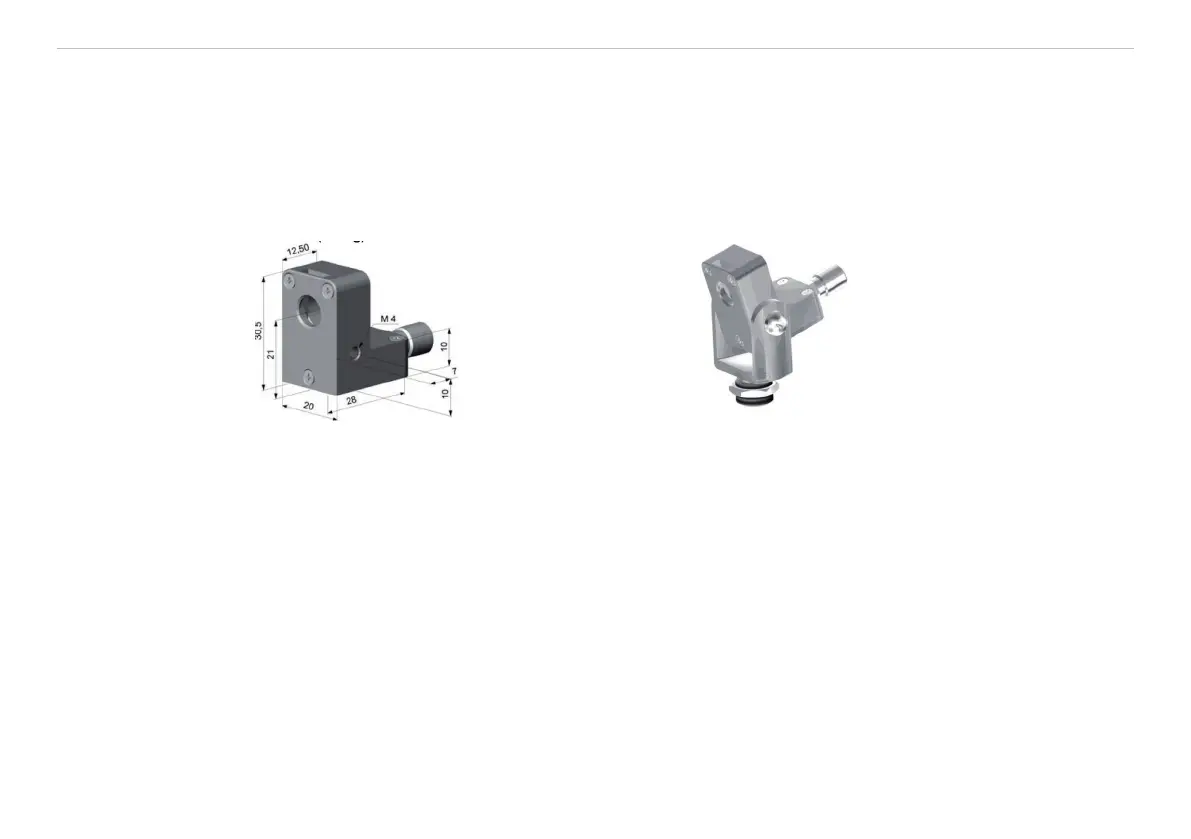

Fig. 38 Laminar air purge collar [TM-AP-CT] Fig. 39 Laminar air purge collar and mounting fork
[TM-APL-CT + TM-MG-CT]
The needed amount of air (approximately 2 ... 10 l/min.) depends on the application and the installation con-
ditions on-site.
